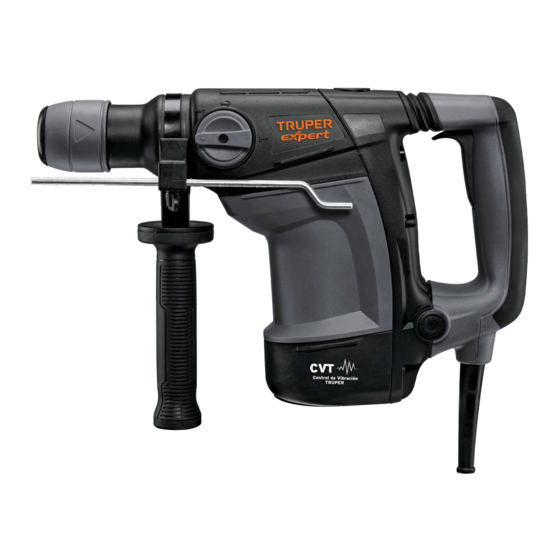

- Página 1 Instructivo de SDS Plus Joules Hammer Drill Impact energy RPLUS-6NX Applies for: Code Model 101221 RPLUS-6NX Read this manual thoroughly CAUTION before using the tool.
-
Página 2: Tabla De Contenido
Contents CAUTION Technical Data Power requirements To gain the best performance of the tool, prolong the duty life, General power tool safety warnings make the Warranty valid if necessary, and to avoid hazards Safety warnings for of fatal injuries please read and the use of hammer drills understand this Manual before using the tool. -
Página 3: Technical Data
Technical Data RPLUS-6NX Code 101221 Description Hammer Drill SDS Plus Chuck SDS Plus Voltage 127 V~ Frequency 60 Hz Current 10 A Power Impact energy 1 100 W 6 Joules Weight 13.2 lb Speed Rotation: 300 RPM - 760 RPM Impact: 1 900 strokes/min - 4 800 strokes/min Work cycle 50 minutes work per 20 min rest. -
Página 4: General Power Tool Safety Warnings
General power tool safety warnings WARNING! Read carefully all safety warnings and instructions listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references. -
Página 5: Safety Warnings For The Use Of Hammer Drills
Safety warnings for the use of Hammer Drills Choose the appropriate drill or attachment While operating the hammer drill CAUTION • The tool is designed to work with bits CAUTION • Hold the tool by its handle and by or accessories with SDS-Plus shanks. Choose the the auxiliary handle. -
Página 6: Parts
Parts Function Oil deposit Vibration Anti-skid Selector Absorber handle SDS Plus Chuck Trigger Switch Depth control rod Spare carbon brushes Auxiliary Handle Speed adjustment knob Power cable protection Grease LED Power Maintenance tube Indicator indicator Power Cord Mounting and Adjustments Auxiliary Handle Operate the power tool only with the CAUTION... - Página 7 Mounting and Adjustments Mounting bits and accessories CAUTION To prevent accidents, confirm that the switch is turned off and disconnect the plug from the power supply. WARNING Always wear gloves when changing accessories. They can become extremely hot during operation. •...
-
Página 8: Start Up
Start Up Function Selector • Be sure to use the function selector (A) only when the motor is completely stopped. WARNING On no reason try to adjust the function selector with the motor running, the tool could rotate abruptly, causing unexpected accidents. IMPACT - ROTATION ( WARNING This function is intended for working... -
Página 9: Maintenance
Start Up Safety Clutch Additional Information The tool has a safety clutch, which interrupts spindle power • SDS-Plus accessories require freedom to move within the (causing a rattling noise), if the accessory jams. Should this bit, which causes eccentricity when the tool is unloaded. possibility occur: However, the accessory automatically centers itself during •... -
Página 10: Notes
Notes ENGLISH... -
Página 11: Authorized Service Centers
In the event of any problem contacting a Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 0187-8737 to get information about the nearest Service Center. DE TODO PARA LA CONSTRUCCIÓN FIX FERRETERÍAS... -
Página 12: Warranty Policy
. Transportation costs resulting from compliance of this warranty will be covered by For questions or comments, call 800-690-6990. Made in China. Imported by Truper S.A. de C.V. Parque Industrial 1, Jilotepec, Edo. de Méx. C.P. 54240 Stamp of the business.
