6. Wiring.

CAUTION: Be sure outlet box is properly grounded
or that a ground wire (GREEN or Bare) is present.
Make sure all electrical connections comply with
Local Codes or Ordinances and the National
Electrical Code. If you are unfamiliar with electrical
wiring or if the house/building wires are different
colors than those referred to below, please use a
qualified electrician.
Note: Excess lead wire length from the fan can be
cut to the desired length and then stripped.
When fan is secured in place on the hanging
bracket, electrical wiring can be made as follows:
Connect BLACK wire from fan to BLACK wire
from ceiling with wire connector provided.
Connect WHITE wire from fan to WHITE wire
from ceiling with wire connector provided.
Connect all GROUND (GREEN) wires together
from fan to BARE/GREEN wire from ceiling with
wire connector provided.
[PLEASE NOTE: Wall and/or handheld remote
control must be used for fan to operate. If you do
not wish to use the wall control, please proceed to
Section 7, page 7 to continue with fan installation.]

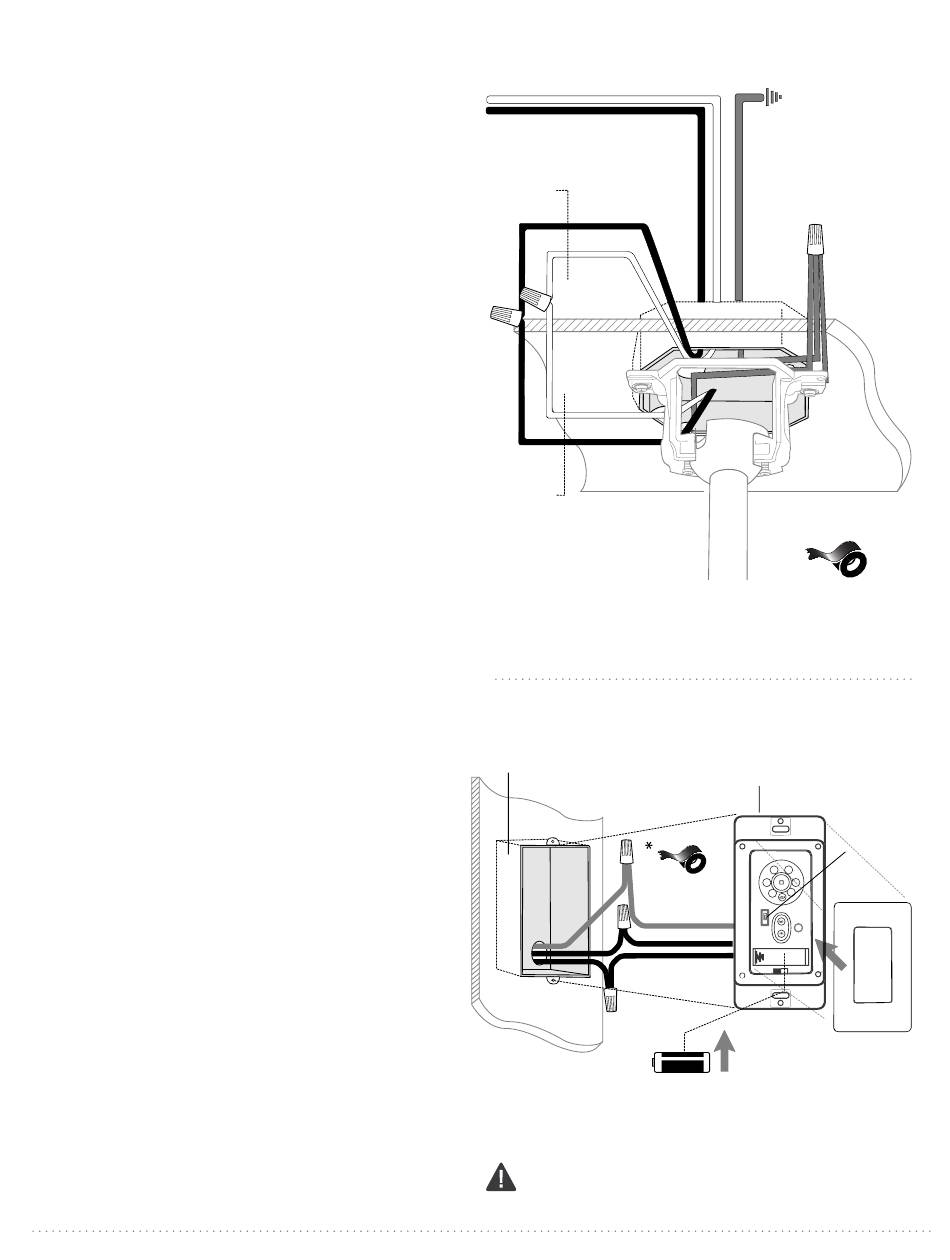

To install wall control, remove existing wall
switch. Wire one of the wall controls with wire
connectors provided as shown in diagram at right.
*Wrap each wire connector separately with
electrical tape as an extra safety measure. Gently
push wires and taped wire connectors into outlet
box.
Install battery (included) in wall control.
IMPORTANT: Wall control will not function
unless battery is installed.
Since this fan comes with LED light kit, the
dimmer switch (labeled ON and D) has been
pre-set to the "ON" position. If you do not wish to
have dimming capability, please move the switch
to the "OFF" position (D).
Attach wall control to outlet box and secure with
screws from original wall switch. Attach plate
(included) to wall control using 2 screws
provided with the wall control.
white supply wire
black supply wire
from ceiling
black
white
white
black
from fan
* Wrap each wire connector separately
with electrical tape as an extra safety
measure.
outlet box
green/ green/
green/
bare bare bare
ground ground ground
black
black
(TO POWER supply)
black
(AC IN from
breaker box)
(wiring for wall control)
WARNING: Choking Hazard - Small parts.
Keep battery away from children.
page 6
ground
(green or bare)
wire
connector
*
wall
control
IV
III
II V V
VI
I
green
black (OUT to fan)
12V battery
ground
(green
or bare)
dimmer
switch
plate
