ASSEMBLY INSTRUCTIONS

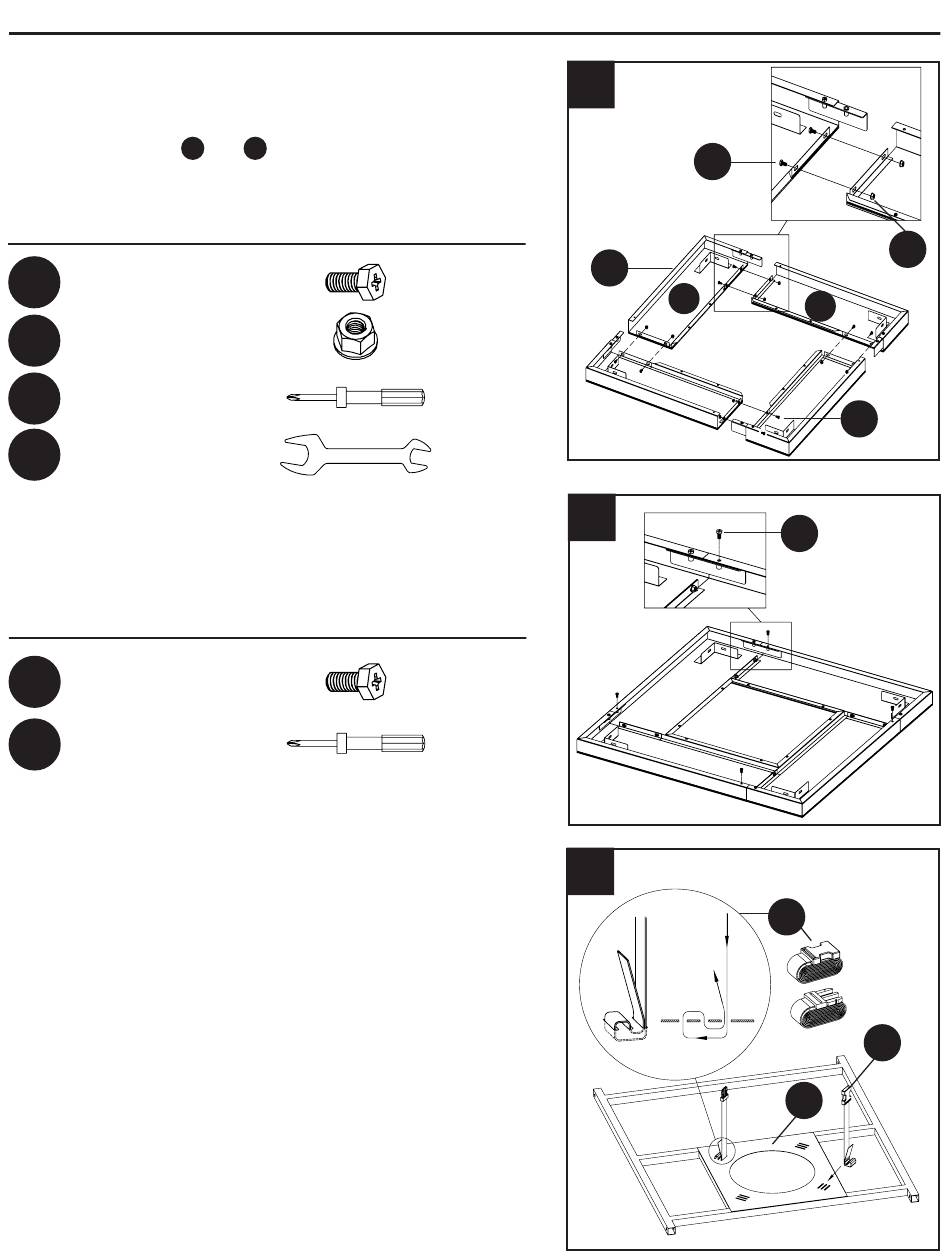

3. Table Top Assembly
3-1. Line up holes in a 1/4 table (D) with corresponding
holes from another 1/4 table (D). Insert two M6 X 12
bolts (AA) through holes. Finger tighten with two M6
nuts (BB). Be sure 1 and 2 are level and fully tighten.
Repeat procedure to complete the assembly of the rest
of 1/4 tables.
Hardware Used
AA
Bolt M6 X 12
Nut
BB
Phillips Screwdriver
II
Wrench
HH
3-2. Once the 4 panels are connected with 2 bolts
per connection point, use another M6 x 12 bolt (AA)
to secure the edges at four points around the table.
Tighten the loose bolts from step two completely.
Hardware Used
AA
Bolt M6 X 12
Phillips Screwdriver
II
4. Attach propane tank strap (J) to bottom plate (I).
1 2
3-1
D
X 8
X 8
3-2
X 4
4
10
AA
1
2
AA
AA
J
I
BB
J
