ASSEMBLY INSTRUCTIONS

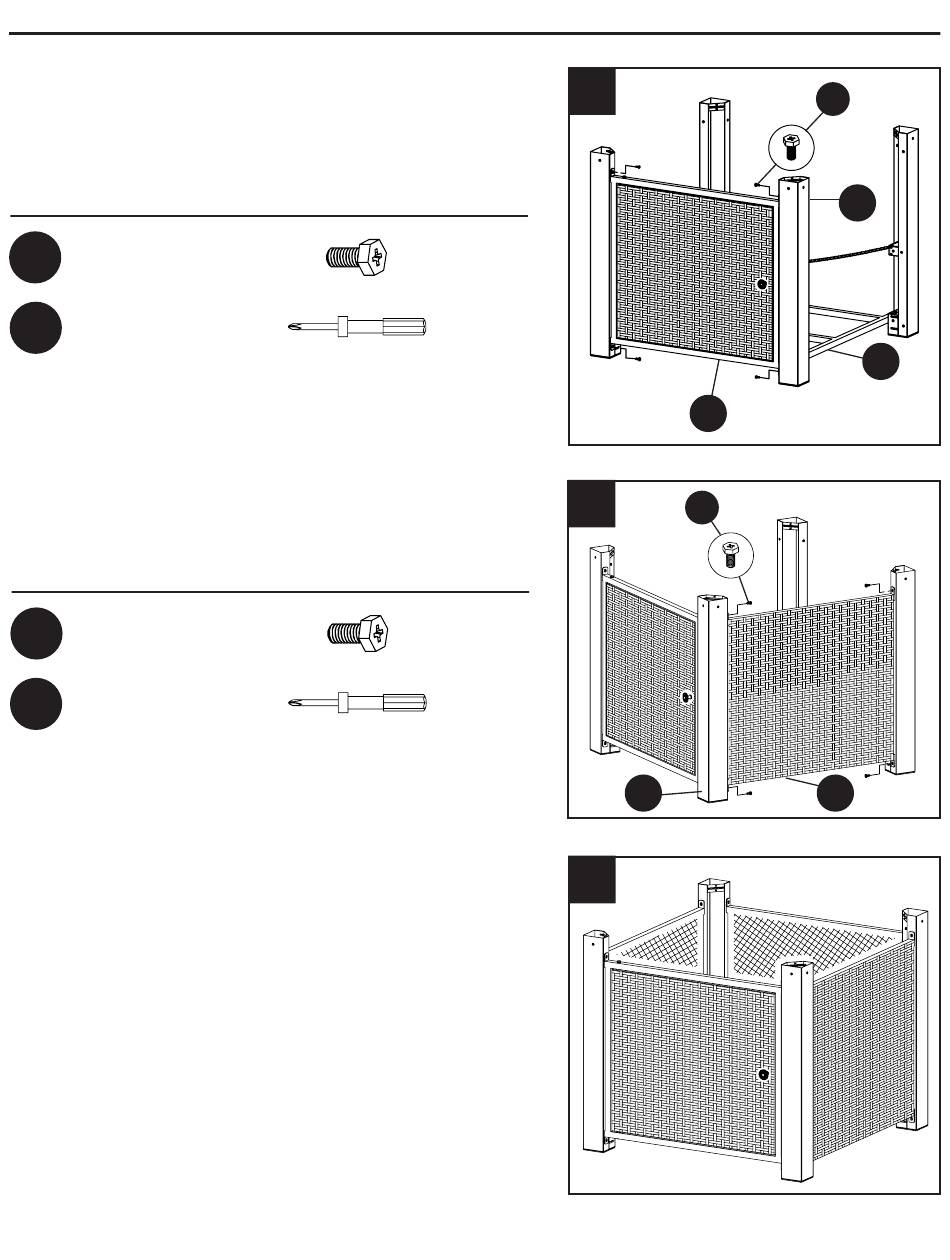

7. Door (L) installation
Position door (L) between the two posts (F) that are at
the same side of the tank hole so that the knob is on the
right. Attach door (L) to posts (F) using four M6x12 bolts
(AA). Tighten with screwdriver (II).
Hardware Used
AA
Bolt M6 X 12
Phillips Screwdriver
II
8. Side Panel (G) Installation
8-1. Attach three side panels (G) to the posts (F) with
twelve M6 X 12 bolts (AA). Tighten with screwdriver (II).
Hardware Used
AA
Bolt M6 X 12
Phillips Screwdriver
II
8-2. After installation, the base assembly will look like
figure 8-2.
