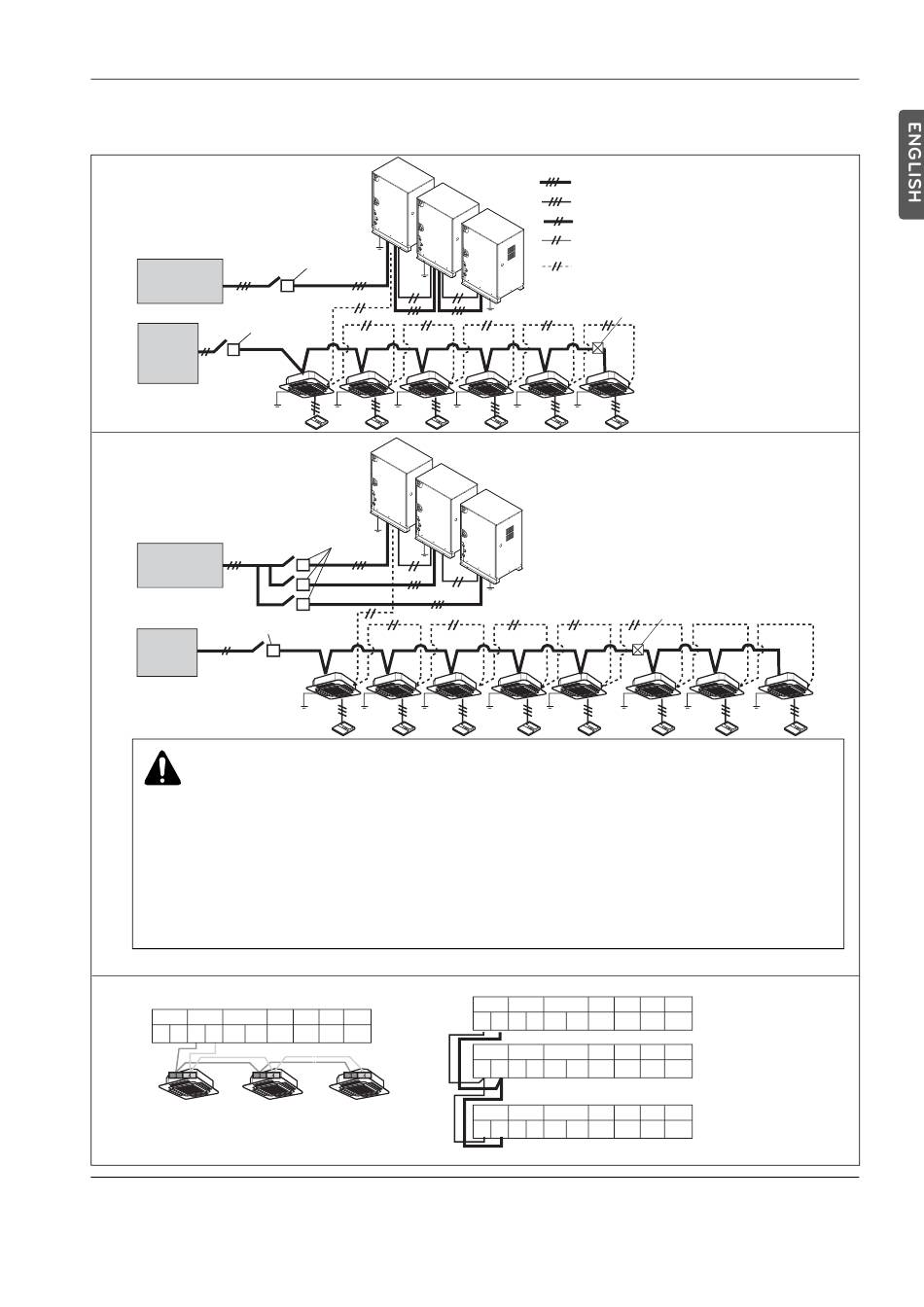

u Example Connection of Transmission Cable
3 Outside Units
■ When the power source is connected
In series between the units.
3 Phase 3 Wires
Power supply
60Hz 208/230V
(Main Switch)
Power supply switch
(Switch)
Power supply
1 Phase 60Hz
208/230V
■ When the power source is supplied to
Each outside unit individually.
3 Phase 3 Wires
Power supply
60Hz 208/230V
(Main Switch)
Power supply switch
(Switch)
Power supply
1 Phase 60Hz
208/230V
WARNING
• Indoor Unit ground Lines are required for preventing electrical shock accident during current leakage,
Transmission disorder by noise effect and motor current leakage (without connection to pipe).
• Don't install an individual switch or electrical outlet to disconnect each of indoor unit separately from the power supply.
• Install the main switch that can interrupt all the power sources in an integrated manner because this system consists of the
equipment utilizing the multiple power sources.
• If there exists the possibility of reversed phase, lose phase, momentary blackout or the power goes on and off while the
product is operating, attach a reversed phase protection circuit locally.
Running the product in reversed phase may break the compressor and other parts.
Between Indoor and Master Outside unit
SODU IDU INTERNET
B A B A
The GND terminal is a '–' terminal for the
central controller, not Ground Line
Master
Power supply switch
(Switch fuse : ELCB)
Power supply switch
(Switch fuse : ELCB)
DRY1 DRY2 GND 12V
Master
Outside unit
3 Phase 3 Wires Power line(L1, L2, L3)
Slave1
Transmission line (3 line): Wired remote control
Slave2
Single Phase of power supply line(L,N)
Transmission line (2 shield line):
Between Outside Unit and Outside Unit
Transmission line (2 shield line):
Between Indoor Unit and Outside Unit
Pull Box(Installer option)
SODU IDU INTERNET DRY1 DRY2 GND
B A B A
SODU IDU INTERNET DRY1 DRY2 GND
B A B A
SODU IDU INTERNET DRY1 DRY2 GND
B A B A
Electrical Wiring
Pull Box(Installer option)
12V
Master
Outside unit
Slave1
12V
Outside unit
Slave2
12V
Outside unit
