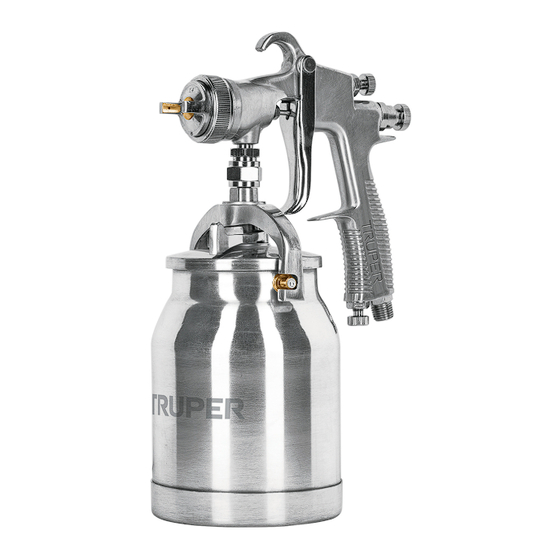

- Página 1 Manual Spray Gun 35 PSI - 50 PSI Air Pressure Applies for: Code Model 14084 PIPI-330 PIPI-330 Read the user’s manual thoroughly CAUTION before operating this tool.
- Página 2 Keep this manual for future references. The illustrations in this manual are for reference Start Up only. They might be different from the real tool. Maintenance Troubleshooting Notes Technical Data PIPI-330 Code 14084 Description Spray Gun Jar Capacity 33.8 oz Air Pressure...
- Página 3 Safety Warnings for the Use of Pneumatic Tools Keep your work area clean, tidy and well lit. Use adequate personal protection. CAUTION CAUTION Cluttered and dark areas may cause accidents. Using safety glasses, anti-dust mask, safety non-skid shoes, helmet and earplugs used in adequate conditions Never use the tool in explosive environments considerably reduce the risk of injury.
- Página 4 Safety Warnings for the Use of Spray Guns Substances and Materials While operating the device CAUTION • The unit is designed to apply covering CAUTION • Never point the sprayer towards your materials like paint, varnish, enamel, etc. These should body, passersby or animals.
- Página 5 Parts Spring Fluid Volume Needle Adjusting Screw Hook Sprayer Spray Width Adjusting Screw Liquid Nozzle Retaining Ring Trigger Bracket Handle Included accessories: Cup Cap Cup Lock Inlet Spike Air Inlet Adjusting Suction Screw Pipe Brush Wrench ENGLISH...
- Página 6 Preparation • To make a good job, it is important to prepare the surface to be sprayed. Thin the paint or product to gain the right viscosity before applying. • Always double check the surface is free of dust, dirt or grease. •...
- Página 7 Start Up Volume Selector Start up • Turn the screw (A) to adjust the volume of the fluid to be • Start the compressor. sprayed. • Press the trigger (E) to open the air flow and start • Turn the knob (B) to regulate the fan size to be sprayed. suctioning the product from the jar.
- Página 8 Maintenance Spraying Tips (2) • Move the gun in a constant and uniform speed. Fast movements produce thin layer and slow movements produce thick layers. • Apply one layer at a time. If needing a second layer read the manufacturer drying recommendations before applying a second layer.
- Página 9 Troubleshooting Right Mist Pattern Problem Cause Solution Wrong • Remove the obstructions from the nozzle. • Paint build up in the nozzle. CAUTION Do not use metal objects Mist to clean the funnel orifices. Patterns: Half Moon • Paint build up in the nozzle or asperser. •...
- Página 10 Notes Imported by: Truper, S.A. de C.V. Parque Industrial 1, Parque Industrial Jilotepec, Jilotepec, Edo. de Méx. C.P. 54257 Made in China, Tel.: 76 1782 9100. www.truper.com ENGLISH 10-2022...
