HEIDENHAIN ERN 1380 Instrucciones De Montaje

U = 5 V ± 10%
P
(I max. 120 mA)
EN 50 178/4.98; 5.2.9.5
IEC 364-4-41: 1992; 411(PELV/SELV)
(siehe, see, voir, vedi, véase
HEIDENHAIN D 231 929)
A, B, R
> 100 mm
Schirm auf Gehäuse
Shield on housing
Blindage sur boîtìer
Schermo sulla carcassa
Blindaje a carcasa
Ø
R 1 R 2
/
Ø 4.5 mm R 1 ‡ 18 mm
Ø 8 mm R 1 ‡ 40 mm R 2 ‡ 100 mm
360° el.
A
0.8 ... 1.2 V
0
( 1 V )
SS
90° el.
B
0
0.2 V ... 0.85 V
R
0
( 0.5 V)
† 150 m
> 100 mm > 200 mm
Störquellen
Noise sources
M
Sources parasites
Origine del disturbo
Fuentes de interferencias
(°C
(°F)
T ‡ –40 °C
(–40 °F)
–30 ... 80 °C
(–22 ... 176 °F)
SS
Im Lieferumfang enthalten
Included in delivery
Contenu dans la fourniture
Standard di fornitura
Elementos suministrados
M5 x 25 - 8.8 DIN 6912
ID 202 264-46
DR. JOHANNES HEIDENHAIN GmbH
Dr.-Johannes-Heidenhain-Straße 5
83301 Traunreut, Germany
{ +49 (86 69) 31-0
| +49 (86 69) 50 61
E-Mail: info@heidenhain.de
Technical support
Measuring systems { +49 (86 69) 31-31 04
E-Mail: service.ms-support@heidenhain.de
TNC support
E-Mail: service.nc-support@heidenhain.de
NC programming
E-Mail: service.nc-pgm@heidenhain.de
PLC programming { +49 (86 69) 31-31 02
E-Mail: service.plc@heidenhain.de
Lathe controls
E-Mail: service.lathe-support@heidenhain.de
www.heidenhain.de
T ‡ –10 °C
(14 °F)
Ve 00
631 762-91 · 3 · 11/2007 · H · Printed in Germany · Änderungen vorbehalten
Subject to change without notice · Sous réserve de modifications · Con riserva di modifiche · Sujeto a modificaciones
0
I
Montageanleitung
Mounting Instructions
Instructions de montage
Istruzioni di montaggio
Instrucciones de montaje
Fleckbeschichtung
Patch coating
Enduit autofreinant
Rivestimento
Recubrimiento tintado

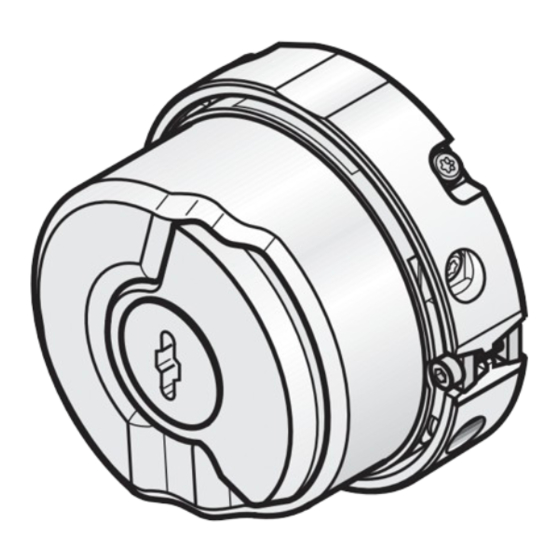

ERN 1380
11/2007
