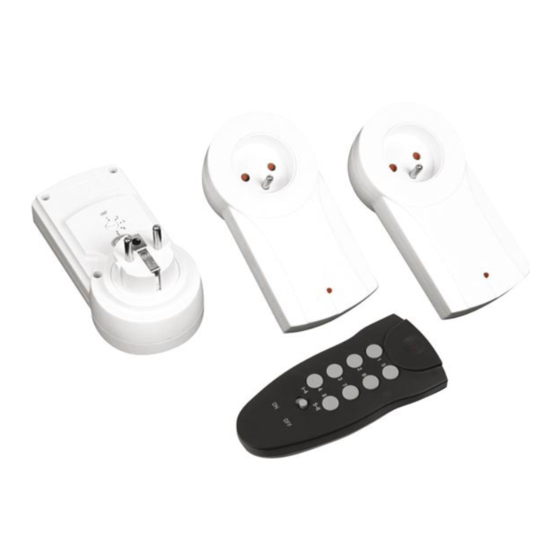

7500-3B – CORDLESS REMOTE CONTROL WITH 3 RECEIVERS
1. Introduction & Features
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm
the environment.
Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialised
company for recycling.
This device should be returned to your distributor or to a local recycling service.
Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for buying the 7500-3B. Read this manual carefully before bringing the devices
into service. If it was damaged in transit, don't install or use it and contact your dealer.
Its features are:
• For every type of electrical device
• Transmitter can work with up to 8 receivers (7500-3B1), 3 receivers included
2. Operation
• To switch on the transmitter, move the toggle switch to the ON position. To switch off
the receiver, move the toggle switch to the OFF position.
• The transmitter can control any receiver through the same eight channels (radio frequency codes).
• When the toggle button is pressed, the transmitter switches on. If the indicator does not light up, replace the
battery with a new one.
NOTE: Press firmly for a minimum of 1 second.
3. How to replace the batteries
• Remove the battery cover.
• Remove the old battery and install a new 12V type A23 alkaline battery respecting the polarity.
• Close the battery compartment by replacing the battery cover.
4. Specifications
Channel Codes
Remote Frequency
Remote Range
Battery
The specifications and contents in this manual are subject to change without prior notice.
7500-3B
8 (1-4 / 5-8)
433.92MHz
>20m
12VDC alkaline
1
