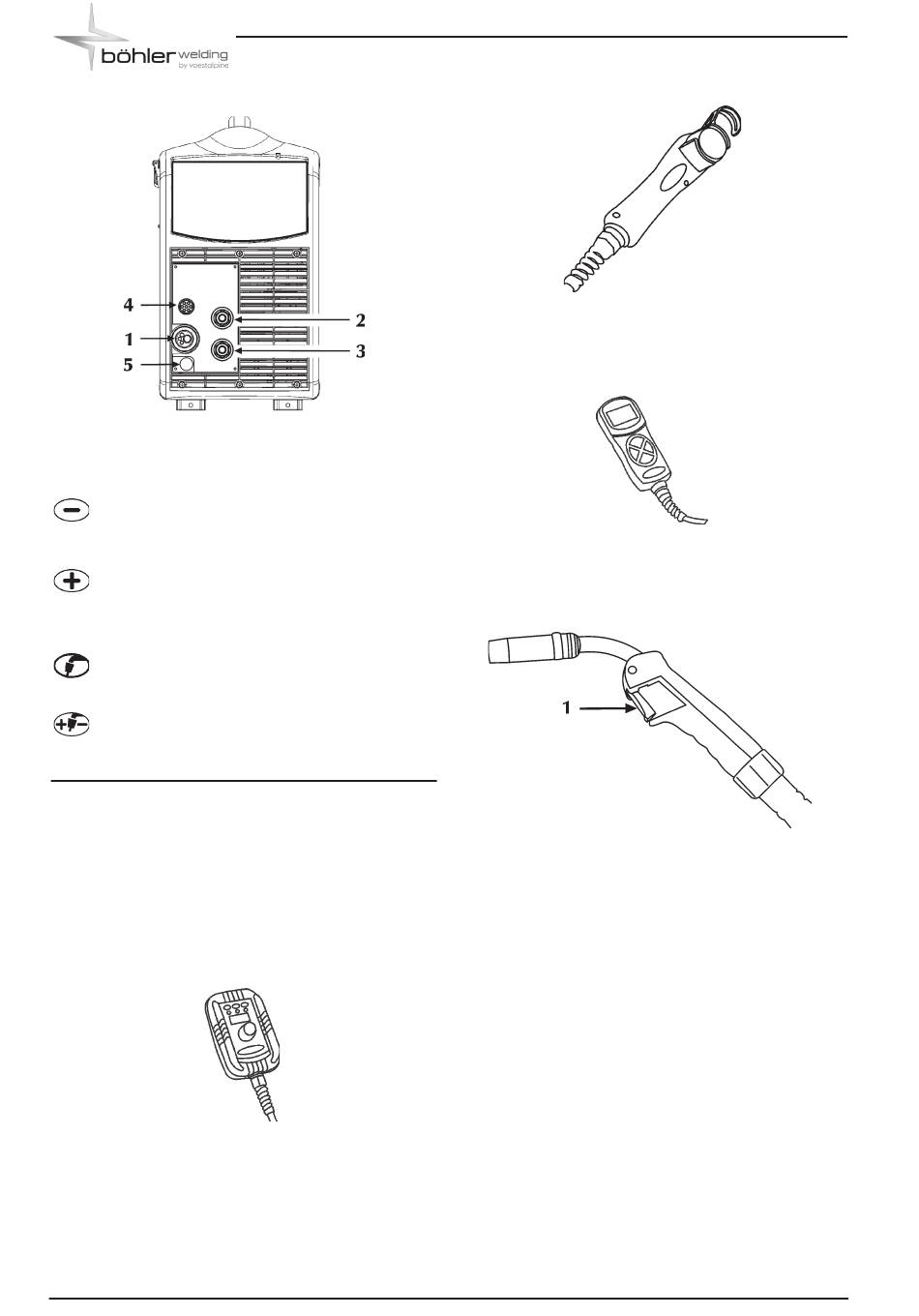

3.9 Sockets panel

1 Torch fitting
Permits connection of the MIG/MAG torch.
2 Negative power socket
For connection of earth cable in electrode welding.
Allows the connection of the earth cable in MIG/MAG.
For connection of TIG torch.
3 Positive power socket
For connection of electrode torch in MMA or earth
cable in TIG.
Allows the connection of the device voltage change
(MIG/MAG).
4 External devices (MIG/MAG torch)
5 Welding polarity change

4 ACCESSORIES

4.1 General (RC)

Operation of the remote control is activated when connected
to the power sources. This connection can be made also with
the system power on.
With the RC control connected, the power source control panel
stays enabled to perform any modification. The modifications
on the power source control panel are also shown on the RC
control and vice versa.

4.2 RC 100 remote control

The RC 100 is a remote control unit designed to manage the
display and the adjustment of the welding current and voltage.
"Consult the instruction manual".
40

4.3 RC 180 remote control

This remote control unit makes it possible to change the output
current without interrupting the welding process.

4.4 RC 200 remote control

The RC 200 is a remote control unit designed to manage the
display and the adjustment of all available parameters of the
power source to which it is connected.

4.5 MIG/MAG series torches

1 Torch button
"Consult the instruction manual".
