red lion RJS-PREM Serie Manual De Usuario

SAFETY WARNINGS
BEFORE OPERATING OR INSTALLING
THIS PUMP, READ THIS MANUAL AND
FOLLOW ALL SAFETY RULES AND
OPERATING INSTRUCTIONS.
IMPORTANT:
READ THIS MANUAL BEFORE INSTALLING
OR OPERATING THE PUMP .
SAFETY:
CAREFULLY READ THESE SAFETY MESSAGES
CAUTION
Review instructions before operating.
WARNING - ELECTRICAL PRECAUTIONS
All wiring, electrical connections, and system grounding must comply
with the National Electrical Code (NEC) and with any local codes and
ordinances. Employ a licensed electrician.
FOR DUAL VOLTAGE MOTORS:
Voltage change instructions are located on the motor label or on the
wiring access cover.
NOTE: The motor voltage is factory preset to 230 V.
WARNING - RISK OF ELECTRICAL SHOCK
• Have an electrician provide electrical power to motor.
• A ground fault interrupter (GFI) protected circuit is recommended
for use with any electrical device operating near water.
• For recommended cable size see Table 1.
• Motor must be grounded and terminal cover in place to reduce
electrical shock hazard.
• Keep motor-operating area as dry as possible.
• Always disconnect power before servicing.
• Not investigated for use in swimming pool areas.
#1
Orange
Brown
115 230
In #1, the motor's switch is shown before
the black voltage change device is pressed
down onto the voltage terminals.
NOTE: DO NOT move white lead wires on L1 & L2.
VOLTAGE WIRING INSTRUCTIONS
voltage
change
Orange
device
terminal
board
In #2, the motor's switch is set for
115 V. The black voltage change device is
pressed down onto both terminals with the
white arrow point on the voltage change
device pointing directly to the 115 V arrow
point on the terminal board.

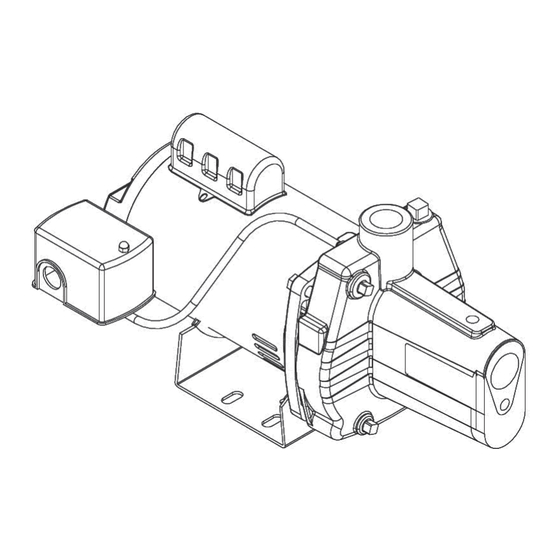

Shallow Well Jet Pump
RJS-PREM Series
.
#2 - 115 V
Brown
115 230
#3 - 230 V
Orange
Brown
115 230
In #3, the motor's switch is set for
230 V. The black voltage change device
is pressed down onto only one terminal
with the white arrow point on the voltage
change device pointing directly to the
230 V arrow point on the terminal board.
