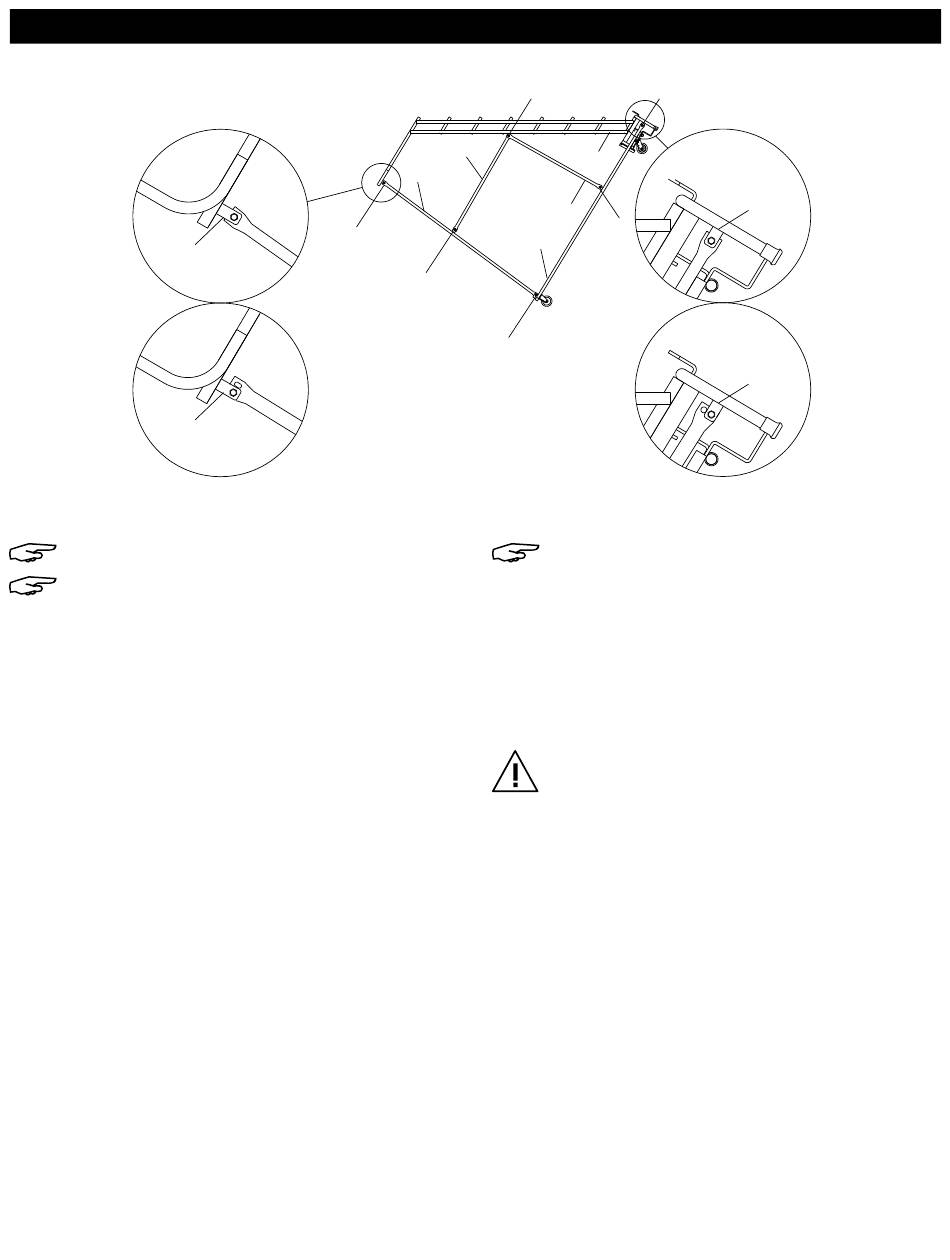

Diagram 1
L1
Single Hole
L1
Double Hole
FRAME
NOTE: DO NOT tighten bolts until instructed to.
NOTE: Back panel (F) has both round and
slotted holes. The round holes are at the bottom,
and the slotted holes are at the top (L1).
1. Place the ladder stile (D) on the floor. Be sure to
assemble on a protective surface so the finish does
not get damaged. (See Diagram 1)
2. Using six 3/8-16 x 1¼" hex head cap screws and
self-locking nuts, bolt the top (slotted hole) of
back panel (F) to the insides of L1. (See Diagram 1)
3. Bolt the bottom (round hole) of back panel (F) & back
of base panel (E) to the insides of L2. Bolt the front of
base panel (E) to the insides of L3. (See Diagram 1)
PAGE 2 OF 9
L1
Model
Model
ASSEMBLY
L4
G
D
F
H
E
L5
L2
HORIZONTAL AND VERTICAL BRACES
NOTE: DO NOT tighten bolts until instructed to.
1. Using three 3/8-16 x 1¼" hex head cap screws,
locate horizontal brace (G) on the outside of L4
and L5.
2. Locate the vertical brace (H) on the outside of L4 and L6.
3. Start two self-locking nuts onto screws at L5 and L6.
4. Repeat step 2 for other side.
WARNING! Never climb a ladder that is not
completely assembled.
L3
Single Hole
Model
L3
L6
Double Hole
Model
L3
