Grinding-/Cutting Disc

Observe the dimensions of the grinding
discs. The hole diameter must fit mounting
flange 8 (M 14), 19 (M 10). Do not use any re-
ducers or adapters.
When using a diamond cutting disc, take care
that the direction-of-rotation arrow on the dia-
mond cutting disc and the direction of rotation of
the machine (direction-of-rotation arrow on the
machine head) agree.
For mounting, see the illustration page.
Screw on the clamping nut 10 and tighten with
the two-pin spanner (see Section "Quick Clamp-
ing Nut").
8
If the O-ring is missing or is damaged, it must
in all cases be
1 600 210 039) before the mounting flange 8 is
mounted.
19
The bore of the diamond cutting disc (Ø 20 mm)
must fit the spigot of the mounting flange 19 with-
out any play.
Do not use any reducers or adapters.
After mounting the grinding tool and be-
fore switching on, check that the grind-
ing tool is correctly mounted and that it
can turn freely.
16 • 2 609 000 850 • 06.01

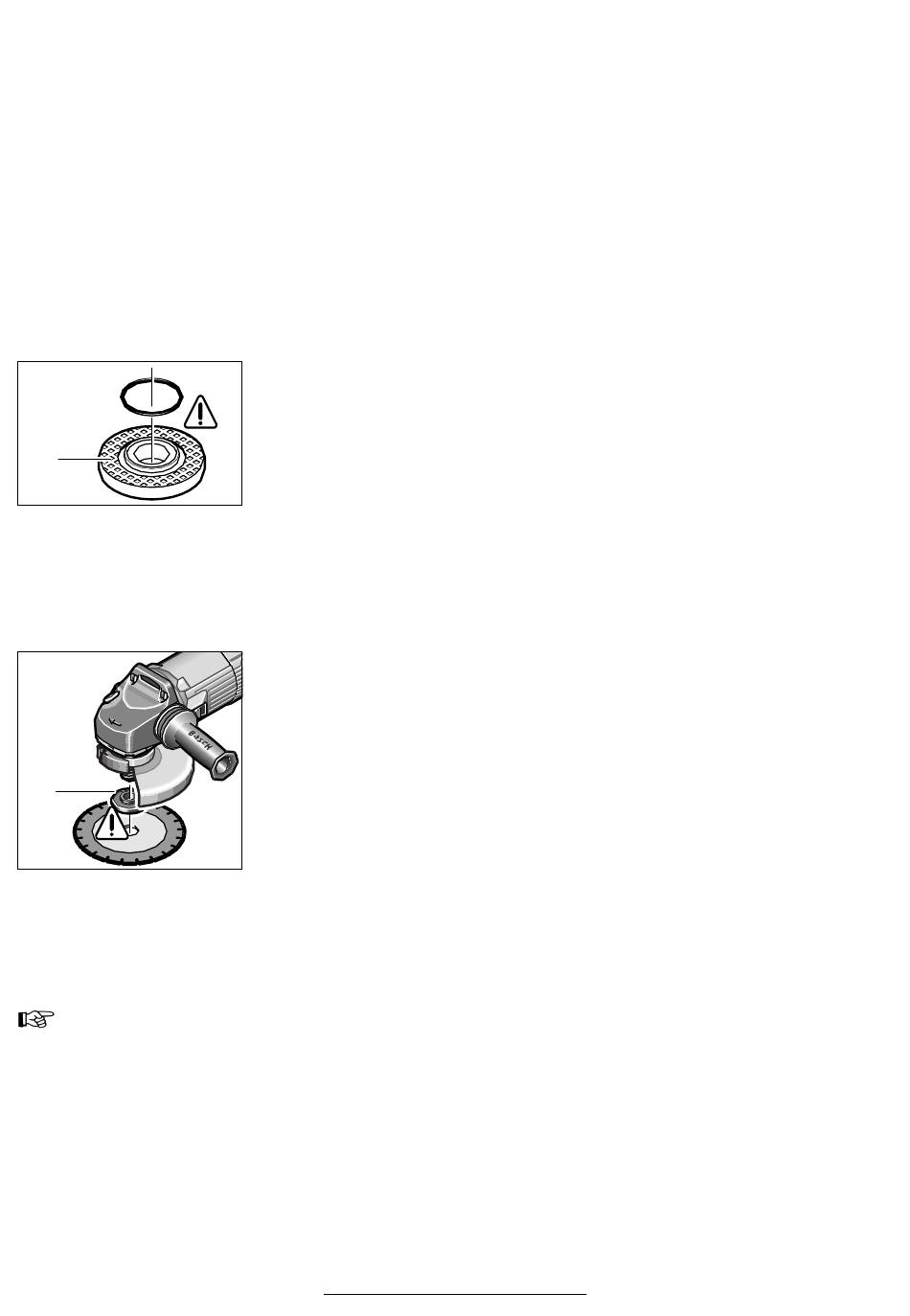

Mounting flange for
grinding spindle
M 14
An O-ring (plastic
part) is inserted in
the mounting
flange 8 around the
centring collar.
replaced (Order
Mounting flange for
grinding spindle
M 10
The mounting
flange 19 can
used on both sides.
For diamond cutting
discs it must be posi-
tioned on the grind-
ing spindle 5
turned through 180°.
Flap Disc
(for M 14 grinder spindle)
Depending on the application, remove the protec-
tion guard 6 and mount the hand guard 12. Place
the special mounting flange 8 (accessory, Order
No. 2 605 703 028) and the flap disc on the
grinder spindle 5. Screw on the clamping nut 10
and tighten with the two-pin spanner.
Rubber Sanding Plate 13
Depending on the application, remove the protec-
tion guard 6 and mount the hand guard 12.
For mounting, see the illustration page.
Screw on the round nut 15 and tighten with the
two-pin spanner.
Cup Brush 16/Disc Brush
(for M 14 grinder spindle)
Depending on the application, remove the protec-
tion guard 6 and mount the hand guard 12.
The grinding tool must be able to be screwed
onto the grinding spindle 5 until it rests firmly
against the grinder spindle flange at the end of
No. the grinder spindle threads. Tighten with an
open-end spanner.
be
and
English - 5
