WIRE FEEDER WELDERS (125, 140)
K520—Utility Cart
Heavy duty cart stores and transports welder, 150 cubic foot
shielding gas cylinder, welding cables and accessories. Includes
stable platforms for welder and gas bottle platform, lower tray
for added storage capacity and adjustable height handle.

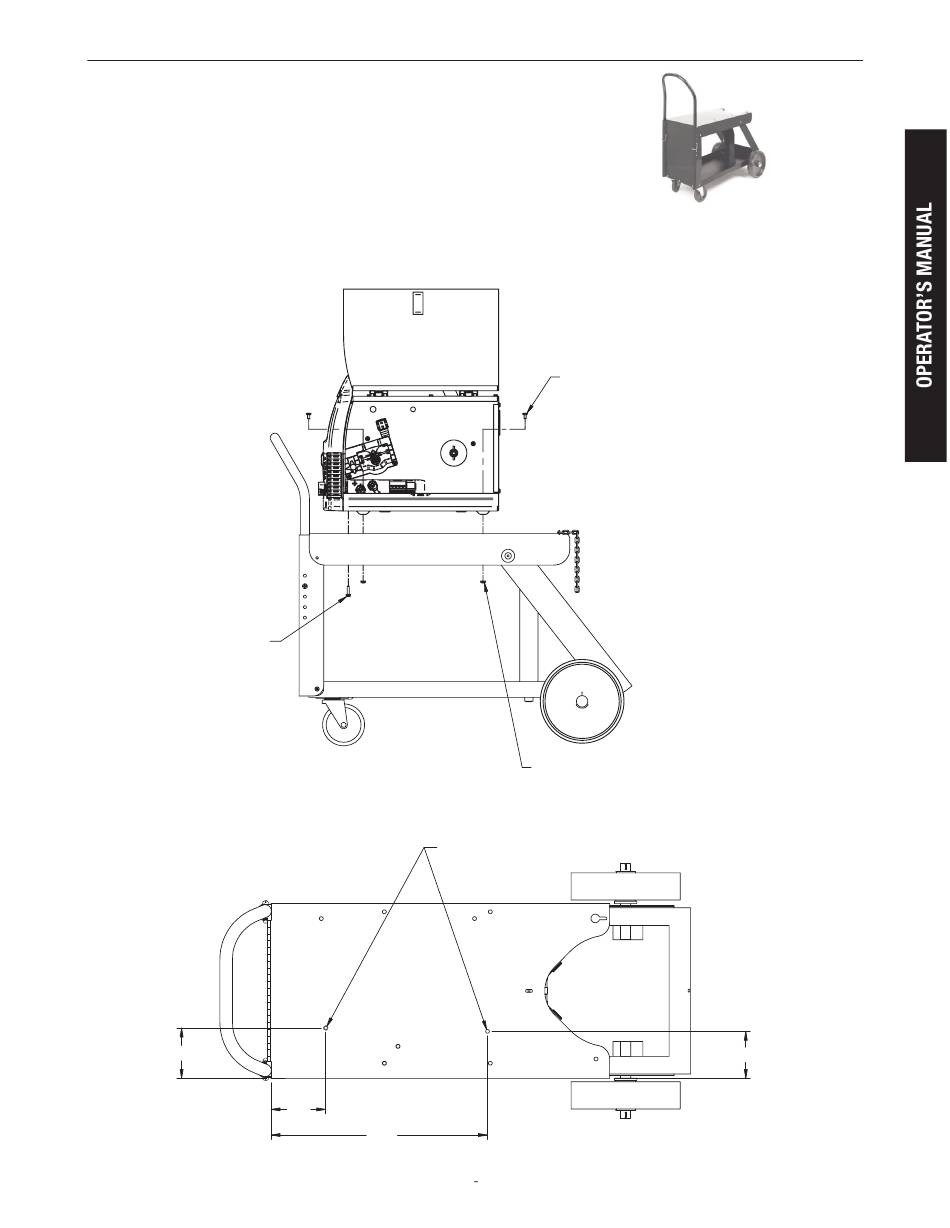

For mounting welding machines to K520 carts that do not have slotted mounting holes.
Drill 9/32" holes (2 places) into the cart top as shown and attach the welding machine to the
cart with the proper hardware shown.
1/4"-20 X 1"
Thread Forming Screw
(1 Required)
3-11/16"
9/32" DRILL
2 PLACES
4"
16"
C 2
1/4"-20 X 1/2" Hex Head Cap Screw
(2 Required)
1/4"-20 X 1/2" Hex Head Cap Screw
(2 Required)
ACCESSORIES
3-13/32"
