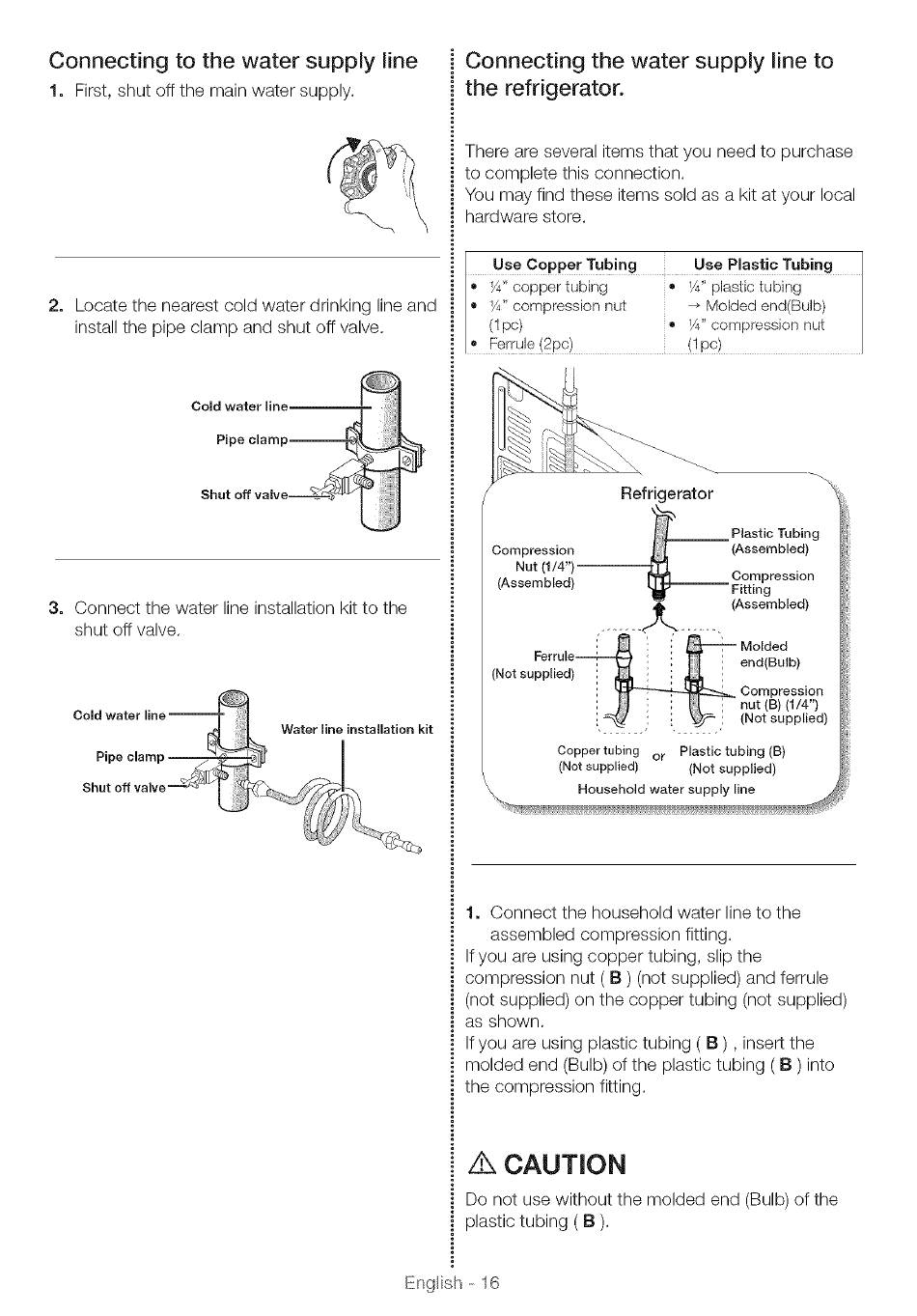

Connecting to the water supply line
1. First, shut off the main water supply•
2. Locate the nearest cold water drinking line and
install the pipe clamp and shut off valve.
Cold water line
Pipe clamp
Shut off valve
3. Connect the water line installation kit to the
shut off valve•
Pipe clamp --
Water line installation kit
Connecting the water supply line to
the refrigerator.
There are several items that you need to purchase
to complete this connection.
You may find these items sold as a kit at your local
hardware store.
Use Copper Tubing Use Plastic Tubing
¼" copper tubing * _," plastic tubing
¼" compression nut _ Molded end(Bulb)
(1 pc) * _/4"compression nut
Ferrule (2pc) (1 pc)
Refrigerator
Dompression _ --
Nut (1/4")-
(Assembled)
Ferrule
(Not supplied)
Copper tubing or
(Not supplied)
Plastic Tubing
(Assembled)
Compression
-- Fitting
(Assembled)
Molded
end(Bulb)
Compression
nut (B) (1/4")
• (Not supplied)
Plastic tubing (B)
(Not supplied)
Household water supply line
1. Connect the household water line to the
assembled compression fitting.
If you are using copper tubing, slip the
compression nut ( B ) (not supplied) and ferrule
(not supplied) on the copper tubing (not supplied)
as shown.
If you are using plastic tubing ( B ), insert the
molded end (Bulb) of the plastic tubing ( B ) into
the compression fitting.
z_ CAUTION
Do not use without the molded end (Bulb) of the
plastic tubing ( B ).
Engl sh - 16
