12. ADJUSTMENTS ALWAYS TO BE DONE

12.1 CLOSING FORCE ADJUSTMENT

An adjustment of too high closing force may cause serious injury to passengers. The max. allowed
force can be found in the code valid for your country (EN81: max. 150N).
The adjustment must be done by use of a force measuring device.
Do not attempt to measure the force of a moving door, stop it first to avoid damage of the force
measuring device!
- Open and close the door manually and check that
there is no mechanical obstruction.

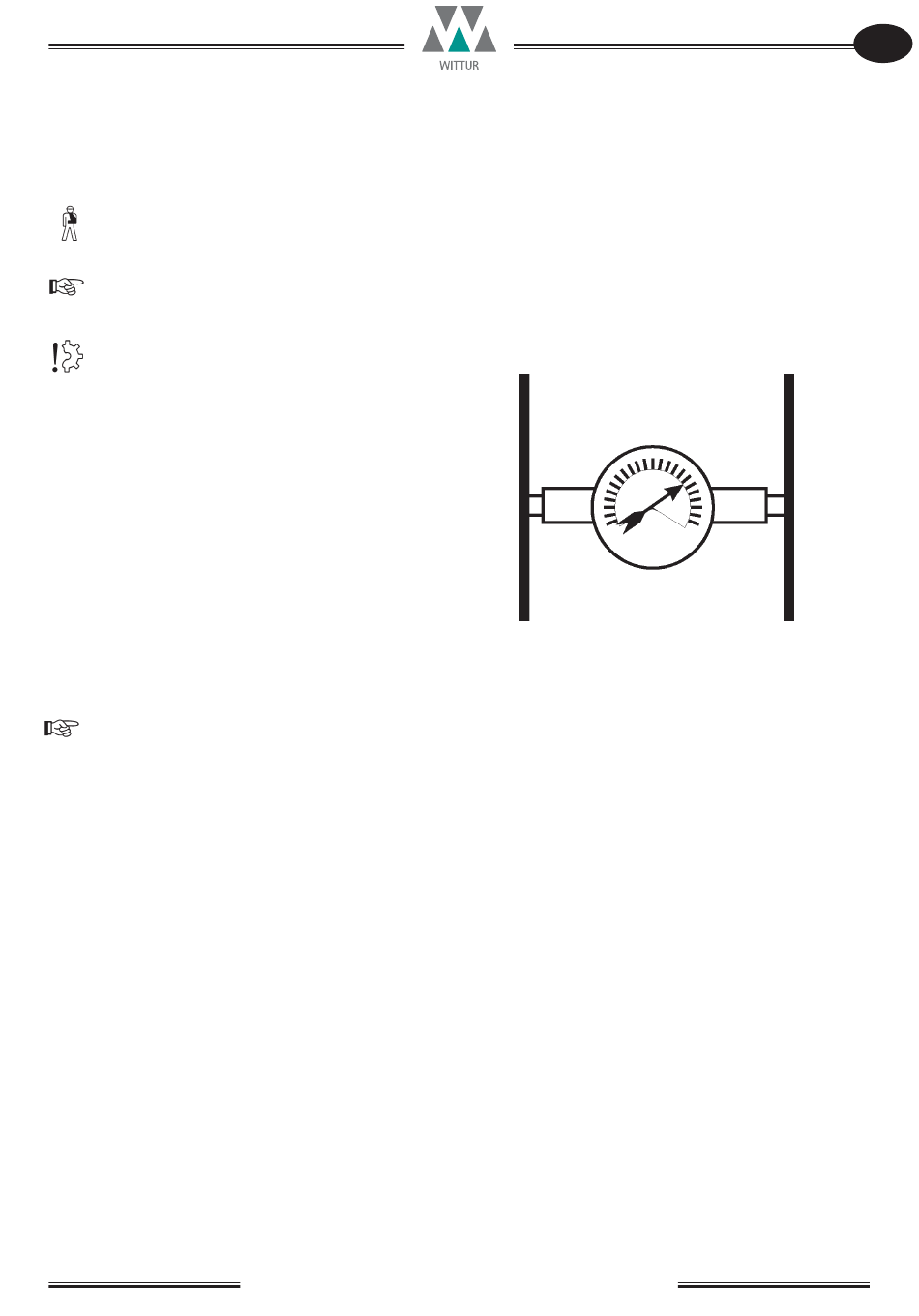

- Put a force measuring device between the door
panels (center opening) or between door panel and
slam post (side opening).
For centre opening the measuring device will show half of the actual close force. For side opening
the measuring device will show the actual close force.
- Drive the door with the close button (or close command) to the close direction. The Test Buttons
only function when the Test button operation DIP-Switch (S1/1) is ON.
- The close command should be applied for less than 10sec period's, than remove the close command
for a short time, before continue the adjustment procedure.
- The opening force adjustment will be done in the factory. ( Normally the opening force is 30N less
than closing force)
