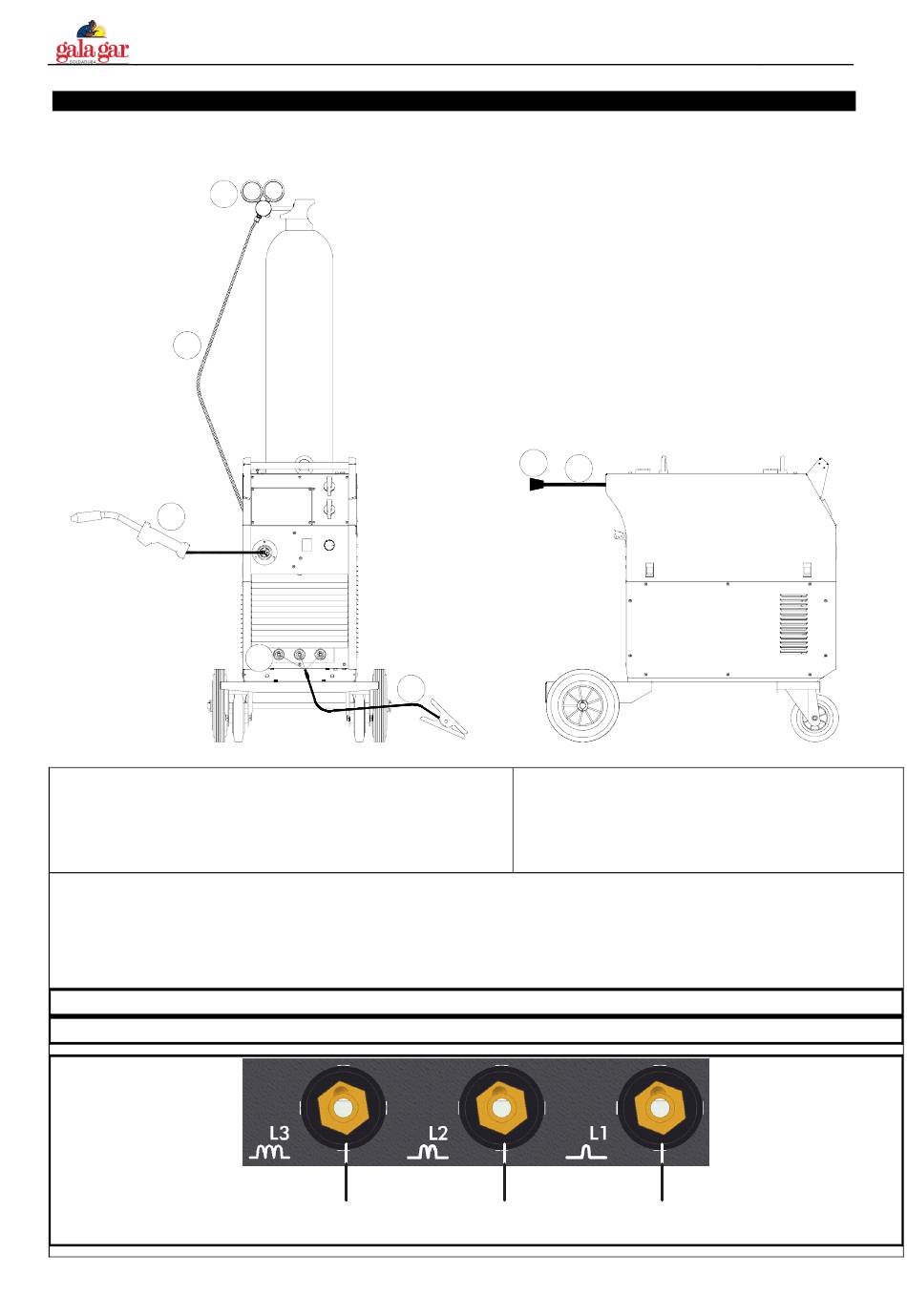

2.2. INSTALLATION OF GALA MIG 255 M.
F
E
G
Installation of welding shielding gas circuit
E- Gas inlet hose to power source.
F- Pressure reducing valve of gas flow control.
Installation of welding circuit elements.
G- Welding torch.
H- Reactance taps.
J- Welding earth clamp.
GALA MIG 255 M. Technical Instructions Manual
H
J
Earth cable connection (J) to reactance taps (H).
L3: MAX
L
K
Electrical connection of power source
K- Supply hose
L- Connection plug.
L2: HALF
L1: MIN
