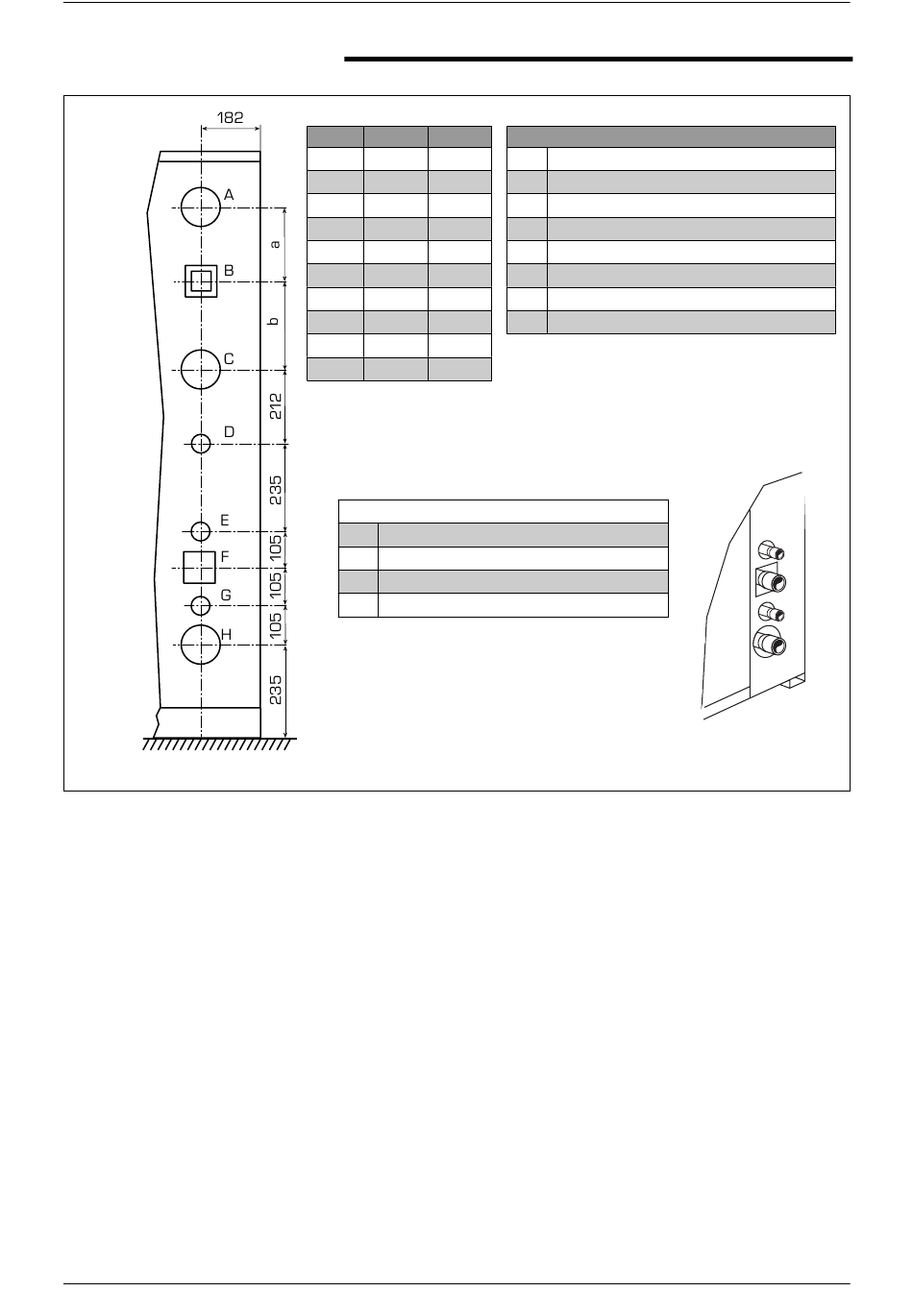

POSITIONS OF THE WATER CONNECTIONS
5
a mm b mm
0275 120 175
0300 120 175
0325 120 175
0350 120 175
0500 205 243
0550 205 243
0600 205 243
0650 205 243
0700 205 243
0750 205 243
CHILLER CONNECTIONS (NRA - C)
E Liquid line (C2)
F Gas line (C2)
G Liquid line (C1)
H Gas line (C1)
KEY
A total recovery outlet (2" ½ gas)
desuperheater outlet (1" ½ gas)
B total recovery inlet (2" ½ gas)
desuperheater inlet (1" ½ gas)
C inlet for version with storage tank (2" ½ gas)
D water filling connection (½" gas)
F inlet for version without storage tank (2" ½ gas)
H outlet (2" ½ gas)
KEY:
C1 = Cooling circuit (1)
C2 = Cooling circuit (2)
E
F
G
H
