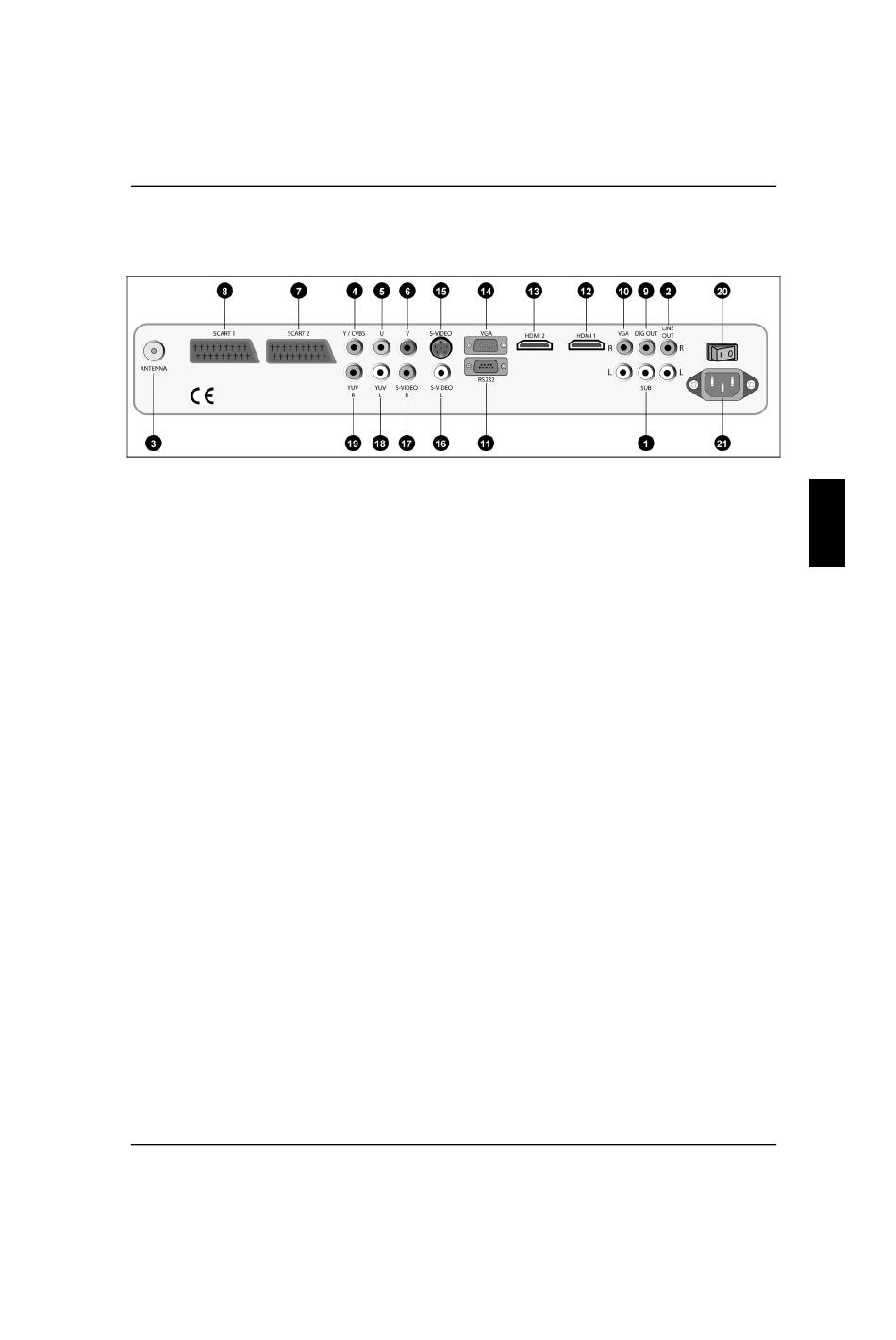

Conectores del televisor LCD

1 = LINE OUT SUB
2 = LINE OUT L/R
3 = ANTENNA
4 = YUV / Y (Component Y), CVBS
5 = YUV / U (Component Pb)
6 = YUV / U (Component Pb)
7 = SCART 2 (YC, CVBS)
8 = SCART 1 (RGB, CVBS)
9 = DIG OUT
10 = VGA AUDIO IN
11 = RS-232
A26361-K1139-Z120-1-M119, edición 1
MYRICA VQ32-1 / MYRICA VQ40-2
12 = HDMI 1
13 = HDMI 2
14 = VGA
15 = S-VIDEO
16 = Entrada de audio S-VIDEO L
17 = Entrada de audio S-VIDEO R
18 = Entrada de audio YUV/CVBS L
19 = Entrada de audio YUV/CVBS R
20 = Interruptor de encendido/apagado (solo
MYRICA VQ40-2)
21 = Conector para el cable de alimentación
