Introduction

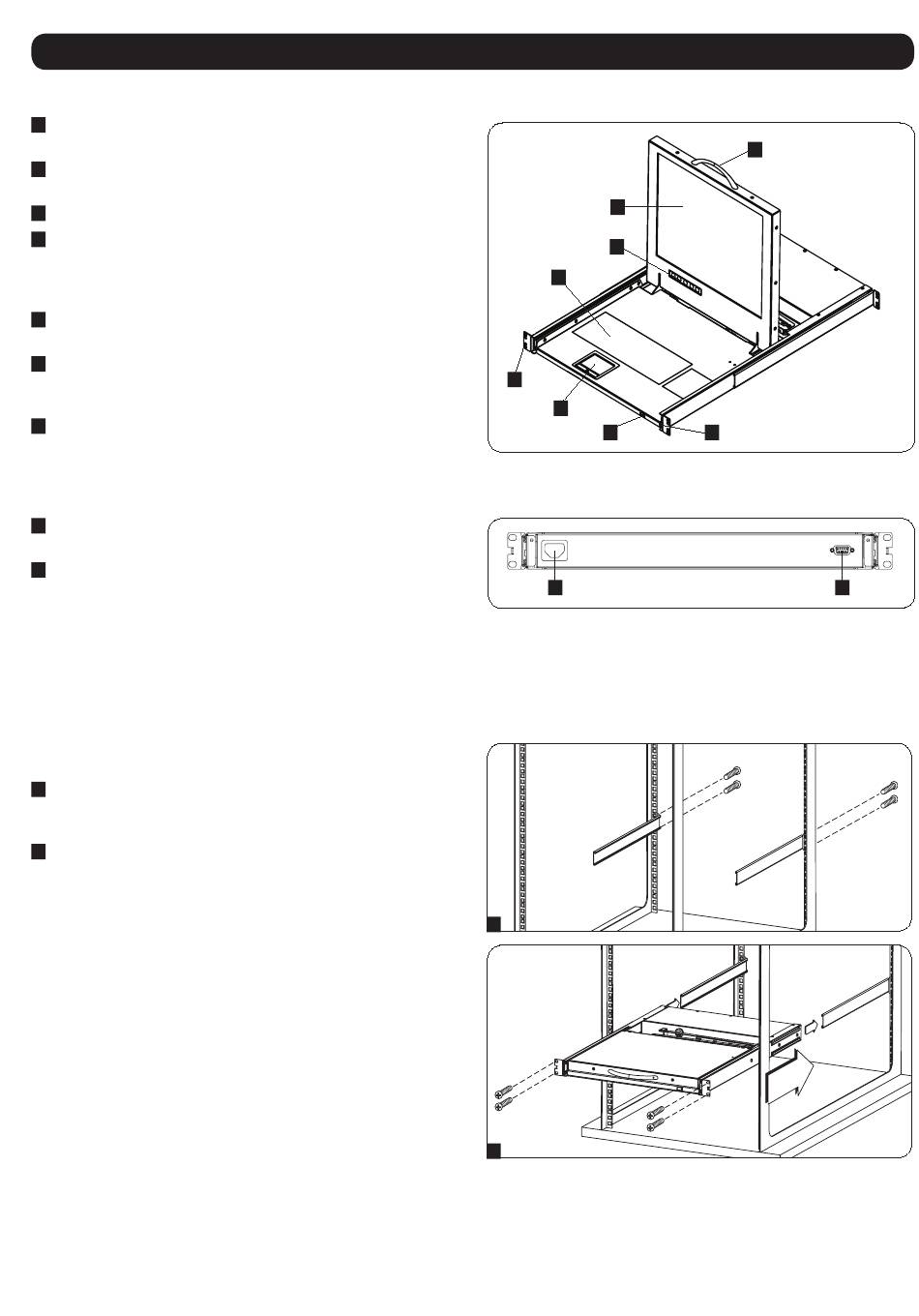

Front View

1
Handle: Pull to slide the module out; push to slide the
module in.
2
LCD Monitor: After sliding the module out, flip up the cover to
access the LCD monitor, keyboard and touch pad.
3
Keyboard
4
Slide Release: Mechanism to lock the drawer when the
console is not in use, preventing it from accidentally sliding
open. To slide the console out, you must first release it by
moving this tab sideways.
5
Rackmounting Brackets: The brackets secure the chassis to a
standard 19-inch rack or rack enclosure.
6
2-Button Touchpad: Press the left button to left-click, press the
right button to right-click. Scroll up and down the screen by
running finger up or down the far right side of the touchpad.
7
Console and LCD Controls: The controls located here include
the console power On/Off button, and the buttons used to
control the position and picture setting of the LCD display.

Rear View

1
Console Port Section: The KVM cable kit (included) to
connect the console to your server or KVM switch plugs in here.
2
Power Socket: The AC power cord plugs in here.

Rackmounting

Tripp Lite's 1U Rackmount Console is designed for mounting in a 1U
rack system. The various mounting options are explained in the
sections that follow.
Standard 4-Post Rackmounting
The standard rackmounting brackets that come attached to the unit
allow it to be installed in standard 1U racks by a single individual.
1
Slide out the rear mounting brackets from the console and
mount both brackets (separate from the console) to the inside
rear of a standard 1U rack system using user-supplied screws.
2
T ake the console and gently slide it into the two rear-mounted
brackets in the rack and secure the console in place by inserting
user-supplied screws.
2-Post Rackmounting
The console can also be mounted in a 2-post rack using the
optional 2-Post Rackmount Kit (Model: B019-000). The mounting
hardware allows for the console to be opened with the drawer in any
position. The kit provides added stability and prevents the console
frame from twisting. See the B019-000 Owner's Manual for detailed
mounting instructions.
