5. touch-pad cable

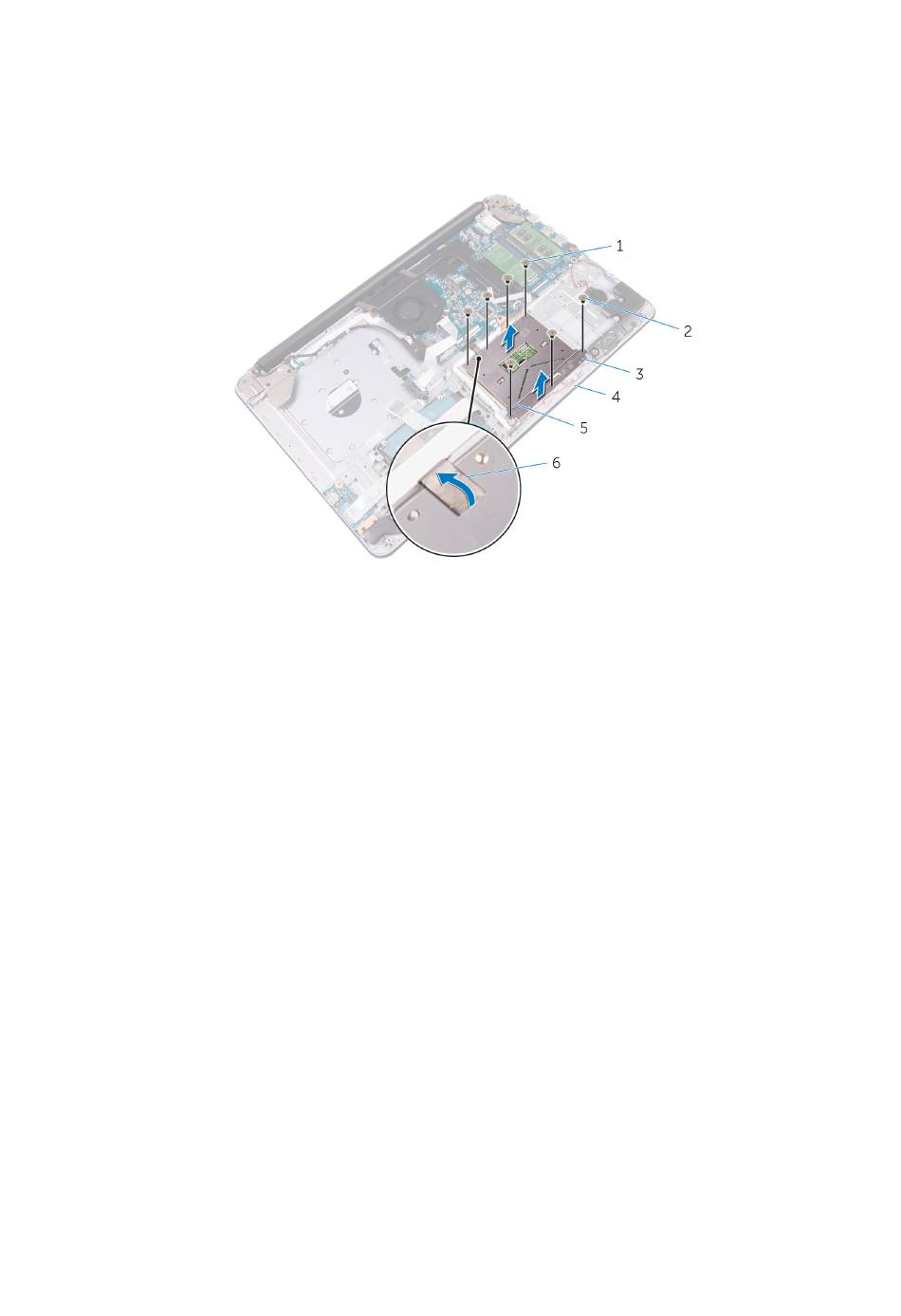

3. Remove the screws that secure the touch-pad bracket to the palm rest and keyboard assembly.
4. Remove the screws that secure the touch pad to the palm rest and keyboard assembly.
5. Gently peel the tape, and lift the touch pad off the palm rest and keyboard assembly.
6.
1. M2x2 screws (4)
3. touch-pad bracket
5. touch pad
6. latch
2. M2x2 screws (3)
4. palm rest and keyboard assembly
6. tape
Extracción de la superficie táctil 35
