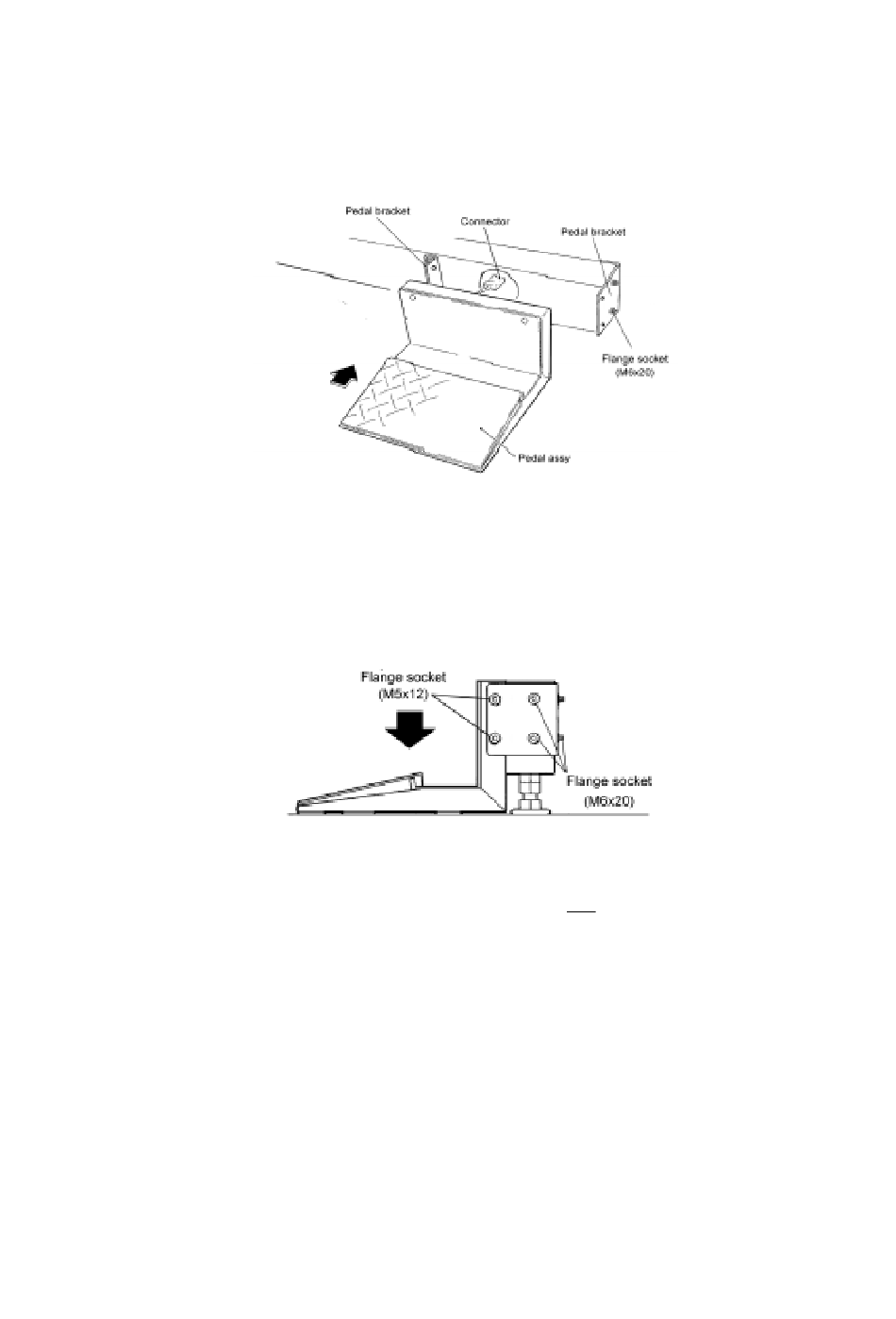

5-4 Fitting the Pedal Assembly

1. Connect the connector between the pedal assy and coin tower assy.
2. Slacken the Flange socket head screws (M6x20) retaining the pedal
brackets.
3. Place the pedal assy between the pedal brackets and fit, finger tight, the
supplied 4off flange socket head screws (M5x12) taking care not to trap
any wires.
4. Ensure that the pedal assy is against the floor and tighten the 4off flange
socket head screws (M5x12)
Note: Make sure that the pedal assy does not lift from the floor.
5. Re-tighten the flange socket head screws (M6x20).
Page 41
