Sony CDX-F7705X Instalación / Conexiones

FM/AM
Compact Disc
Player
Installation/Connections
Installation/Connexions
Instalación/Conexiones

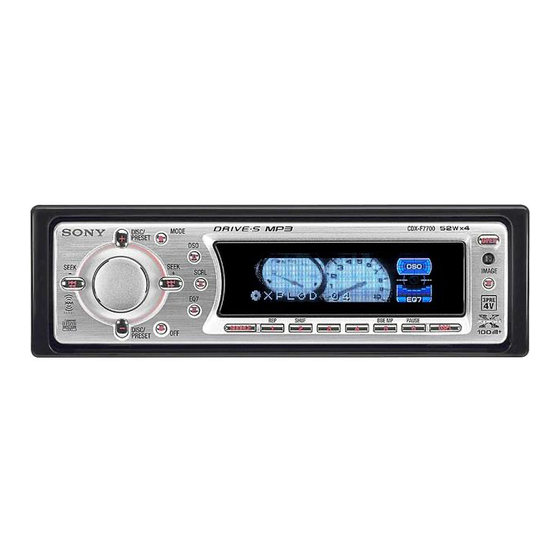

CDX-F7705X
CDX-F7700
© 2004 Sony Corporation
1
1 2
4 5
Equipment used in illustrations (not supplied)
Appareils utilisés dans les illustrations (non fournis)
Equipo utilizado en las ilustraciones (no suministrado)
Front speaker
Haut-parleur avant
Altavoz frontal
Rear speaker
Haut-parleur arrière
Altavoz posterior
Active subwoofer
Caisson de graves actif
Altavoz potenciador de
graves activo
3-263-425-11 (1)
Printed in Korea
3
× 4
× 2
Power amplifier
Amplificateur de puissance
Amplificador de potencia
CD/MD changer
Changeur de CD/MD
Cambiador de CD/MD
Rotary commander RM-X4S
Satellite de commande RM-X4S
Mando rotatorio RM-X4S
2
A
SUB OUT (MONO)
AUDIO OUT
REAR
B
BUS AUDIO IN
BUS CONTROL IN
Source selector*
Sélecteur de source*
Selector de fuente*
XA-C30
Cautions
• This unit is designed for negative ground 12 V DC
operation only.
• Do not get the leads under a screw, or caught in
moving parts (e.g. seat railing).
• Before making connections, turn the car ignition
off to avoid short circuits.
• Connect the yellow and red power input leads
only after all other leads have been connected.
• Run all ground leads to a common ground
point.
• Be sure to insulate any loose unconnected leads
with electrical tape for safety.
• The use of optical instruments with this product
will increase eye hazard.
Notes on the power supply lead (yellow)
• When connecting this unit in combination with
other stereo components, the connected car
circuit's rating must be higher than the sum of
each component's fuse.
• When no car circuits are rated high enough,
connect the unit directly to the battery.
Parts Iist (1)
• The numbers in the list are keyed to those in the
instructions.
• The bracket 1 and the protection collar 3 are
attached to the unit before shipping. Before
mounting the unit, use the release keys 5 to
remove the bracket 1 and the protection collar 3
from the unit. For details, see "Removing the
protection collar and the bracket (4)" on the
reverse side of the sheet.
• Keep the release keys 5 for future use as they
are also necessary if you remove the unit from
your car.
Caution
Handle the bracket 1 carefully to avoid injuring
your fingers.
1
Catch
Note
Before installing, make sure that the catches on both
sides of the bracket 1 are bent inwards 2 mm ( 3 /
32
the catches are straight or bent outwards, the unit will
not be installed securely and may spring out.
Connection example (2)
Notes (2-A)
• Be sure to connect the ground lead before connecting
the amplifier.
• If you connect an optional power amplifier and do not
use the built-in amplifier, the beep sound will be
deactivated.
Tip (2-B- )
For connecting two or more CD/MD changers, the source
selector XA-C30 (optional) is necessary.
AUDIO OUT
FRONT
BUS AUDIO IN
BUS CONTROL IN
* not supplied
non fourni
no suministrado
Connection diagram (3)
1 To a metal surface of the car
First connect the black ground lead, then connect
the yellow and red power input leads.
2 To the power antenna control lead or power
supply lead of antenna booster amplifier
Notes
• It is not necessary to connect this lead if there is no
power antenna or antenna booster, or with a
manually-operated telescopic antenna.
• When your car has a built-in FM/AM antenna in
the rear/side glass, see "Notes on the control and
power supply leads."
3 To AMP REMOTE IN of an optional power
amplifier
This connection is only for amplifiers. Connecting
any other system may damage the unit.
4 To the interface cable of a car telephone
5 To a car's illumination signal
Be sure to connect the black ground lead to a metal
surface of the car first.
6 To the +12 V power terminal which is energized
in the accessory position of the ignition key
switch
Notes
• If there is no accessory position, connect to the +12
V power (battery) terminal which is energized at
all times.
Be sure to connect the black ground lead to a
metal surface of the car first.
• When your car has a built-in FM/AM antenna in
the rear/side glass, see "Notes on the control and
power supply leads."
7 To the +12 V power terminal which is energized
at all times
Be sure to connect the black ground lead to a metal
surface of the car first.
Notes on the control and power supply leads
• The power antenna control lead (blue) supplies +12 V
DC when you turn on the tuner.
• When your car has built-in FM/AM antenna in the rear/
side glass, connect the power antenna control lead
(blue) or the accessory power input lead (red) to the
power terminal of the existing antenna booster. For
details, consult your dealer.
• A power antenna without a relay box cannot be used
with this unit.
Memory hold connection
When the yellow power input lead is connected, power
will always be supplied to the memory circuit even when
the ignition switch is turned off.
Notes on speaker connection
• Before connecting the speakers, turn the unit off.
• Use speakers with an impedance of 4 to 8 ohms, and
with adequate power handling capacities to avoid its
damage.
• Do not connect the speaker terminals to the car
in). If
chassis, or connect the terminals of the right speakers
with those of the left speaker.
• Do not connect the ground lead of this unit to the
negative (–) terminal of the speaker.
• Do not attempt to connect the speakers in parallel.
• Connect only passive speakers. Connecting active
speakers (with built-in amplifiers) to the speaker
terminals may damage the unit.
• To avoid a malfunction, do not use the built-in speaker
leads installed in your car if the unit shares a common
negative (–) lead for the right and left speakers.
• Do not connect the unit's speaker leads to each other.
Note on connection
If speaker and amplifier are not connected correctly,
"Failure" appears in the display. In this case, make sure
the speaker and amplifier are connected correctly.
