π H-3070

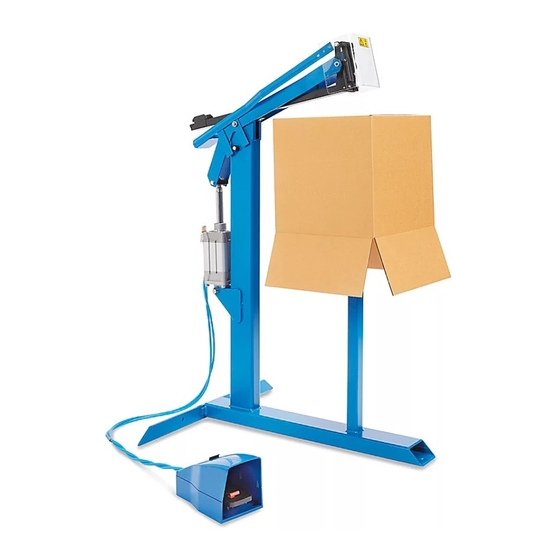

KIHLBERG PNEUMATIC
BOTTOM STAPLER
LOADING MAGAZINE
NOTE: Always use Josef Kihlberg original staples.
The correct designation is marked on each
stapling head.
1. Pull the pusher (1) back and lift up the magazine
breech (2). (See Figure 1)
1
2. Insert staple strips (3) from the rear. (See Figure 1)
WARNING! Do not overload the magazine, as
this may damage the pusher when the breech
is closed.
Never release the pusher directly from the rear
when the magazine is empty; carefully guide it
forward by hand.
PAGE 1 OF 15
1-800-295-5510
uline.com
PREPARATION
Figure 1
2
3
Pour le français, consulter les pages 11-15.
ADJUSTING ANVIL
Though the tool is tested carefully before delivery, it may
have seen rough treatment during transport and the
anvil may therefore have to be adjusted.
1. Slide down a staple (4) by hand until the staple legs
are visible. (See Figure 2)
2. Move the staple towards the anvil (5) until the
staple legs hit the anvil symmetrically. (See Figure 2)
3. If necessary, loosen the screw (6) and center the
anvil to the staple. Lock screw after adjusting.
(See Figure 2)
4. Make a test-stapling in a piece of carton. When
everything is in order, you can start using the tool.
Para en Español, vea páginas 6-10.
Figure 2
4
5
6
0521 IH-3070
