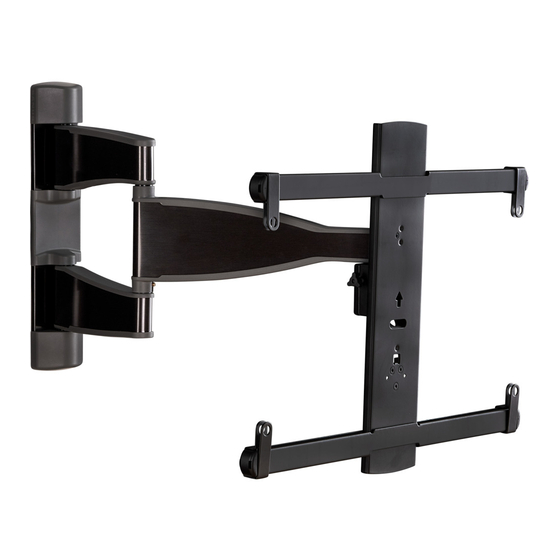

- Página 1 GET IT RIGHT THE FIRST TIME VDMF 20 Follow this step-by-step instruction manual to INSTRUCTION MANUAL speed up your installation. Texto en español, página 26...
- Página 2 DIY HeightFinder™ shows you experts are standing by to help. project will be? where to drill. Call us at: Watch it now at: Check it out at: +1 (800) 359-5520 SANUS.com/3078 SANUS.com/1172 Or, chat at: SANUS.com/chatSP...
-
Página 3: Before You Begin
Before you begin Remove the stand Install any accessories Protect the face from your TV — of your TV if attached. you may have purchased — if they require when laying it down for installation. the TV to be removed from the wall for assembly. -
Página 4: Important Safety Instructions
● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use. If your TV (including accessories) exceeds this TV Weight Limit weight, this mount is NOT compatible. 55 lbs. (including accessories) Visit SANUS.com or call customer service to find a (24.9 kg) compatible mount. DO NOT EXCEED... -
Página 5: Tools Needed
Wall wood studs Solid concrete or CAUTION: concrete block Construction DO NOT install ONLY install on in drywall alone these acceptable wall types. Drywall alone will hold Unsure the weight of your TV. ACCEPTABLE ACCEPTABLE Call Customer Service +1 (800) 359-5520 Tools Needed 7/16 in. - Página 6 STEP 1 Attach TV Bracket to TV WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts! NOTE: Not all hardware included will be used.
- Página 7 1.1 Select TV Screw Diameter 1.2 Select TV Screw Length and Spacers Only one screw size fits your TV. NO SPACER SPACER NEEDED • Flat Back TV • Flat Back TV • Rounded or with Irregular Back TV Extra Space Needed [TV brackets lay flat on your TV] [for deep inset holes...
- Página 8 1.3 Attach TV Brackets to Your TV MEASURE ADJUST TO WIDTH inches 7 ⅞ 11 ¾ 15 ¾ 300 mm position illustrated inch dimensions are approximate...
- Página 9 ASSEMBLE FOR HEIGHT ASSEMBLE FOR HEIGHT For height 200 mm or less For height greater than 200 mm ≤ 200 mm > 200 mm...
- Página 10 1. 3 (continued) CENTER LOOSELY ASSEMBLE NO SPACER SPACER NEEDED...
- Página 11 SECURE ASSEMBLY TIGHTEN ALL SCREWS...
- Página 12 STEP 2 Attach Wall Plate to Wall WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts! NOTE: Not all hardware included will be used.
-
Página 13: Wood Stud Installation
STEP 2A Attach Wall Plate Wood Stud Installation CAUTION: Avoid potential personal Min. 3 ½ in. (8.9 cm) injury or property damage! Min. 1 ½ in. (3.8 cm) ● Drywall covering the wall must not exceed 5/8 in. (1.5 cm) Max. - Página 14 Visit 2 ¾ in. (7.0 cm) HeightFinder™ sanus.com /1172 1/8 in. (3 mm) To calculate your precise wall plate location, check Be sure you drill into the out our HeightFinder at sanus.com [www.sanus. CAUTION: TIP: CENTER of the stud. com/1172].
- Página 15 SECURELY TIGHTEN INSERT COVERS CAUTION: TIP: You can make small level Avoid potential personal injury or property damage! adjustments by loosening the bottom Both lag bolts MUST BE firmly tightened to prevent unwanted movement lag bolt and shifting the wall plate of arm assembly .
- Página 16 Minimum solid concrete thickness: 8 in. (20.3 cm) ● Minimum concrete block size: 8 x 8 x 16 in. (20.3 x 20.3 x 40.6 cm) To calculate your precise wall plate location, check out our TIP: TIP: HeightFinder at sanus.com [www.sanus.com/1172].
- Página 17 DRILL INSERT ANCHORS REMOVE COVERS 3 in. (7.5 cm) 3/8 in. (10 mm) Be sure the anchors are seated flush Never drill into the mortar between CAUTION: CAUTION: CAUTION: CAUTION: with the concrete surface. blocks.
- Página 18 STEP 2B (continued) SECURELY TIGHTEN INSERT COVERS CAUTION: TIP: You can make small level Avoid potential personal injury or property damage! adjustments by loosening the bottom Both lag bolts MUST BE firmly tightened to prevent unwanted movement lag bolt and shifting the wall plate of arm assembly .
- Página 19 STEP 3 Attach TV to Wall Plate WARNING: Before starting assembly, verify this part is undamaged. If HANG YOUR TV damaged, do not return the damaged item to your dealer; contact Customer Service. HEAVY! Never use damaged parts! You may need assistance with this step.
- Página 20 STEP 3 (continued) SECURELY TIGHTEN ATTACH CAUTION: Avoid potential personal injury or property damage! Always make sure your securement screw is tightened, so the TV is securely fastened to the arm assembly...
-
Página 21: Important
Manage Cables ROUTE CABLES ATTACH COVERS IMPORTANT: Pull arm to its full extension, to leave enough slack and prevent stretching the cables when the arms are moved. -
Página 22: Level Adjustment
Adjustments LEVEL ADJUSTMENT TILT ADJUSTMENT TILT NOTE: If you do not intend to adjust the tilt for different viewing locations, you can tighten the tilt tension knobs , to prevent unwanted movement. If needed, use hex key to tighten more firmly. CAUTION: CAUTION: Avoid potential personal injury or... - Página 23 EXTEND / RETRACT -- ONLY IF NECESSARY CAUTION: Avoid potential personal injury or property damage! DO NOT remove screws , only turn enough for slight adjustment. TIP: ONLY If needed, adjust the arm tension when you extend or retract your TV, with screw using hex key...
- Página 24 REMOVE THE TV Disconnect all cables from the TV. Remove securement screw HEAVY ! You may need assistance with this step. Pull down on the release cord to release the TV. Carefully lift the TV from arm assembly...
- Página 25 Troubleshooting If you are uncertain about your hardware selection, contact Customer Service TV SUPPLIED SPACERS Use your TV supplied spacer for: Use your TV supplied spacer and spacer for: • Flat Back TV • Rounded or Irregular Back TV with Extra Space Needed •...
-
Página 26: Estamos A Su Disposición Para Ayudarle
¿Su televisor pesa No — ¡Perfecto! (accesorios incluidos) 24,9 kg MÁS de 24.9 kg Sí — Este soporte NO es compatible. Visite MountFinder.Sanus.com o llame al : +1 (800) 359-5520 (55 lbs) (55 lbs)? para encontrar un soporte compatible. ¿De qué está... -
Página 27: Antes De Comenzar
ESPAÑOL Antes de comenzar Retire el soporte de su televisor... ¡si ya estaba instalado, claro! Instale cualquier accesorio que quiera añadir a su televisor. Consulte todos los manuales de instalación de los accesorios para determinar si necesita INSTALARLOS ANTES de montar su televisor. Proteja la pantalla de su televisor cuando lo tumbe para la instalación. -
Página 28: Colocación Sobre Montantes De Madera
LOCALIZAR VERIFICAR MARCAR COLOCAR LA PLANTILLA CONSEJO: Para calcular la ubicación precisa de su placa mural, descubra nuestro Height Finder en sanus.com [www.san.us/1172]. TALADRAR RETIRAR LAS CUBIERTAS APRETAR FIRMEMENTE PRECAUCIÓN: Evite posibles lesiones personales o daños materiales. Los cuatro pernos tirafondo... -
Página 29: Resolución De Problemas
ESPAÑOL Gestión de los cables PÁGINA 21 PASE LOS CABLES IMPORTANTE: xtienda el brazo por completo antes de pasar los cables. VUELVA A COLOCAR LA CUBIERTA Ajustes PÁGINA 22 NIVELACIÓN PRECAUCIÓN: Se DEBE aflojar el tornillo antes de girar el tornillo PRECAUCIÓN: Evite posibles lesiones personales o daños materiales. - Página 30 Dimensions in. [mm] TV INTERFACE 18.03 458.0 3.94 100.0 15.75 3.94 400.0 100.0 TOP VIEW - EXTENDED 16.40 416.6 0.38 16.28 413.4 WALL PLATE SIDE VIEW - EXTENDED 20.01 508.3 60.00° 5° 2.59 0.33 65.8 SIMULATED 49" FLAT SCREEN TV 13.03 11.39 331.0...
