4.3. Device Description

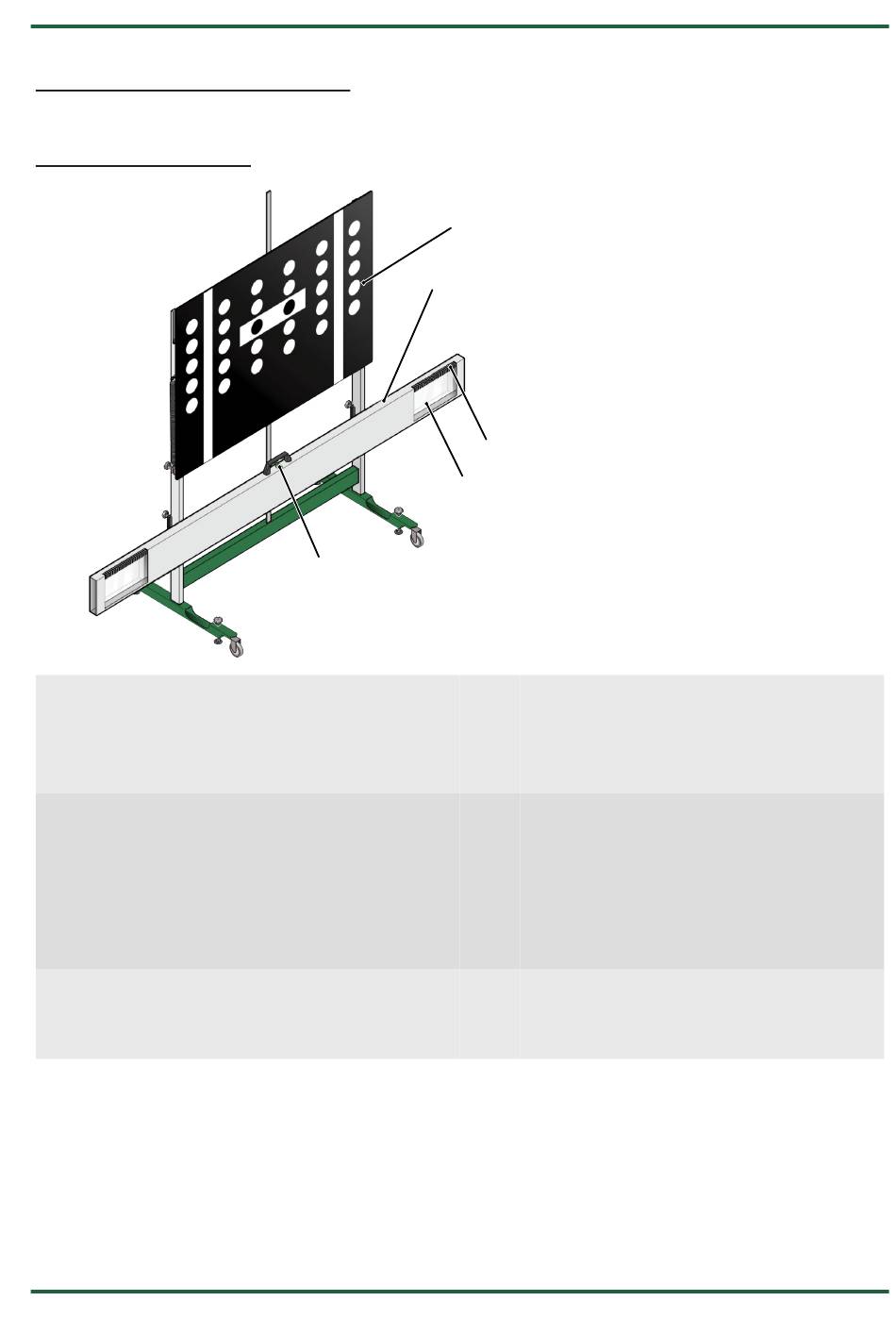

4.3.1. CSC-Tool SE

1 CSC-panel frame incl. VAG reference panel (Here
you will need different reference panels depending
on the car manufacturer. These are optionally
available.)
3 Cross member scale (Here you can check whether
the CSC-Tool SE is placed correctly in front of the
vehicle.)
5 Cross member level gauge (Use the level gauge to
check whether the cross member is exactly hori-
zontal.)
CSC-Tool SE
1
2
4
5
3
2 Cross member
4 Cross member mirrors (This is used to reflect the
laser beam onto the scale of the wheel clamp
module SE when using the wheel clamp module
SE. / This is used to reflect the laser beam onto the
wheel clamp scale of the wheel clamp module WA
when using the wheel clamp module WA.
Product Description | 4.
