CAMBIO DEL VOLTAJE DE ALIMENTACION

ACOPLIAMENTO

Only vibrators designed with dual-voltage windings are reconnectable.

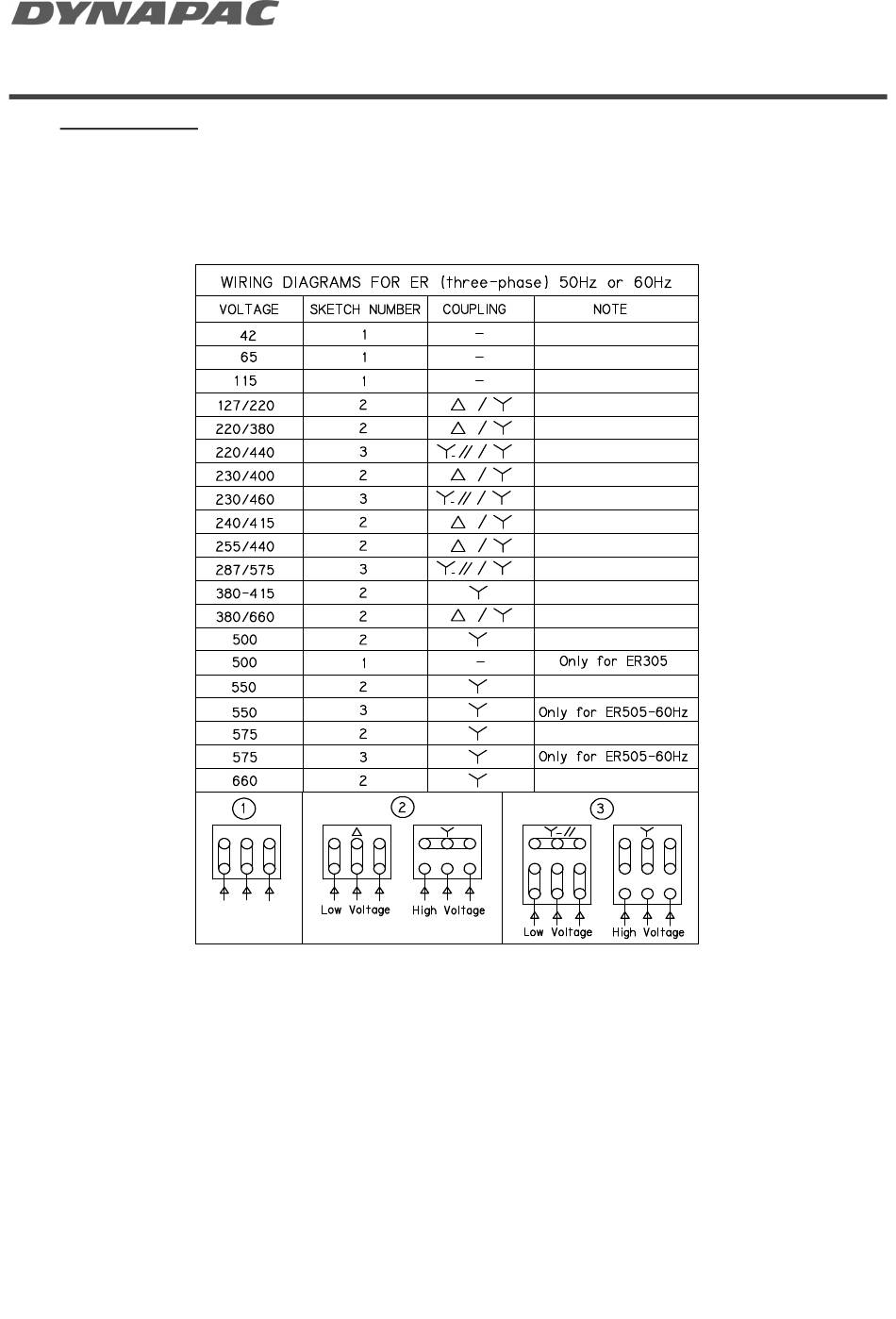

To obtain the correct voltage, reconnect the links as shown in fig. Here below.
The terminal board with links is located in the terminal box.
Tighten the terminal board nuts firmly after reconnection.
Make sure that the rubber gasket between the terminal box and its cover makes a good seal.
