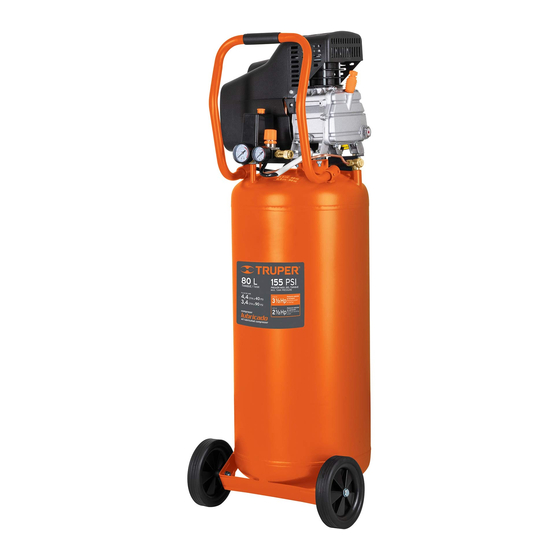

- Página 1 Manual Vertical lubricated 116 PSI air compressor Pressure Applies for: Code Model 15656 COMP-80LV Read the user’s manual thoroughly CAUTION before operating this tool.
- Página 2 Contents CAUTION Technical Data Power Requirements To gain the best performance of the tool, prolong the duty life, General Power Tool Safety Warnings make the Warranty valid if necessary, and to avoid hazards Safety Warnings for the use of pneumatic of fatal injuries please read and compressors understand this Manual before...
- Página 3 Technical data COMP-80LV Code 15656 Description Vertical lubricated air compressor Voltage 127 V Engine power Nominal: 2- 1/2 Hp Maximum: 3-1/2 Hp Frequency 60 Hz Maximum pressure 116 PSI Continuous air flow 4.4 CFM - 40 PSI 3.4 CFM - 90 PSI...
- Página 4 General Power Tools Safety Warnings WARNING! Read carefully all safety warnings and instructions listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references.
- Página 5 Safety Warnings for Pneumatic Compressors Before using the compressor When using the compressor CAUTION CAUTION • The pressurestat produces sparks when • Do not aim nozzles, sprayers or the air working. If sparks make contact with gasoline vapors or jet towards people or animals. WARNING other solvents they can ignite causing fire or explosion.
- Página 6 Parts Motor Carrying cover filter handle Pressure relief valve Oil plug Switch Pressurestat Oil level peephole Thermal filter switch Tank pressure gauge Regulated outlet pressure Non-return gauge valve (check) Power cable Output pressure regulator Regulated air outlet valve (quick connect) Wheels Tank Drain valve...
- Página 7 Preparation • The air compressor is used to power pneumatic tools, which are as versatile as electric tools, so they can be used for drilling, screwing, nailing, riveting, stapling, chiseling, polishing, blowtorching, cleaning, painting, etc. • Operation of the compressor is fully automatic, controlled by its pressure switch, which stops the motor when the tank pressure reaches the maximum level and restarts when it drops below 551.6 kPa (80 PSI).
- Página 8 Start Up Switching ON and OFF • Before operating the compressor, place it on a flat, level, solid surface with good ventilation and away from flammable objects, such as curtains, etc. Leave a space of at least 12” (30 cm) around the compressor for air circulation.
- Página 9 Maintenance Oil change • After the first 50 hours of operation, change the oil by removing the drain plug (A). Reinstall the plug and fill the oil tank as instructed on page 7. Subsequent oil changes should be performed every 150 hours of operation. Cleaning and care •...
- Página 10 • Remove the plastic cover from the compressor and turn the fan 3 turns clockwise to release the engine. Perform an oil change and turn on the compressor. If the compressor is still not operating, go to a Truper service center.
- Página 11 Authorized Service Centers In the event of any problem contacting a Truper Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 018-7873 to get information about the nearest Service Center.
- Página 12 It includes the costs of transportation of the product that derive from its fulfillment of its service network. . Phone number 800-018-7873. Made in China. Imported by Truper, S.A. de C.V. Parque Industrial 1, Parque Industrial Jilotepec, Jilotepec, Edo. de Méx. C.P. 54257, Phone number 761 782 9100.
