INTRODUCTION
TOOL NEEDED
Phillips Screwdriver
UNPACKING
This Product Requires Assembly.
Check all parts from carton against the Carton Contents List.
If any parts are damaged or missing, contact 1-800-4-RIDGID
(US and Canada) or by email at info@ridgidvacs.com.

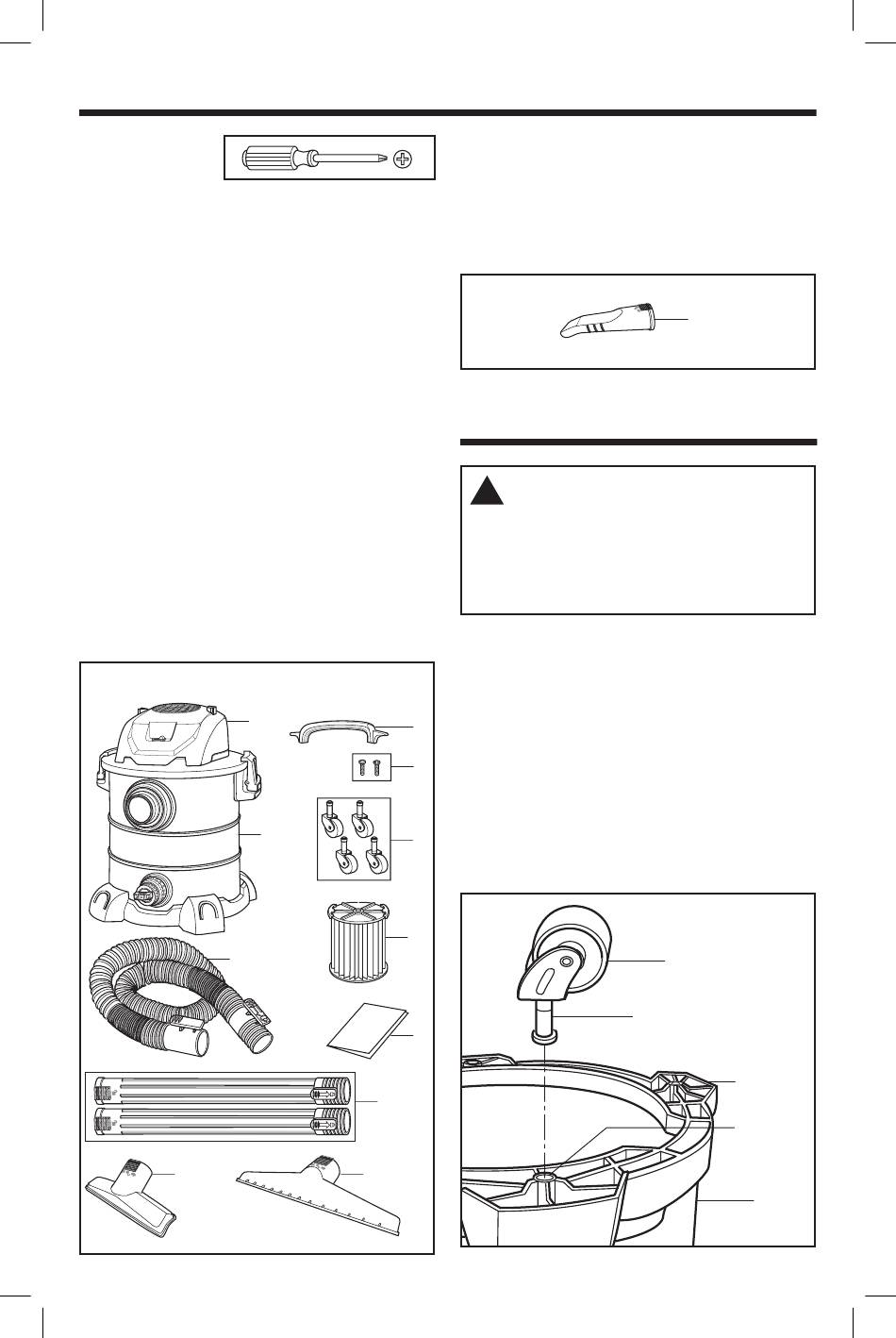

CARTON CONTENTS LIST (Fig. 1)
Key Description
A* Powerhead Assembly ..........................................1
B* Dust Drum Assembly ..........................................1
C Carry Handle/Power Cord Wrap ..........................1
D Pan Head Screws, #10 x 3/4" (19mm)... .............2
E Tug-A-Long Positive Locking Hose with
Dual-Flex ..........................................................1
F Caster ..................................................................4
G Extension Wand...................................................2
H Utility Nozzle ........................................................1
I Wet Nozzle...........................................................1
J* Qwik Lock™ Filter ..................................................1
K Owner's Manual.....................................................1
* These parts come preassembled.
E
H
Qty
Fig. 1
A*
C
D
B*
F
J*
K
G
I
CARTON CONTENTS LIST (Fig. 2)
Supplied with Some Models:
Key Description
L** Car Nozzle ....................................................................1
** Check the Contents List on your carton for a list of included
accessories.
ASSEMBLY
WARNING:
!
For your own safety, never connect plug to
power source outlet until all assembly steps are
complete and you have read and understood the
safety and operation instructions. Do not operate
Vac with any parts damaged or missing.
CASTER ASSEMBLY (Fig. 3)
NOTE: Remove Powerhead Assembly (A) from Dust
Drum (B) prior to assembly of Casters (F).
1. Turn the Dust Drum (B) upside down on the floor.
2. Insert the Caster Stem into the Socket of the Accessory
Caddy, as shown.
3. Push on the Caster (F) until the Ball on the Caster Stem
is inserted all the way into the Socket. You will hear
the Ball snap into the Socket and the Caster will swivel
easily when positioning is correct.
4. Repeat for remaining Three Casters (F).
5. Turn the Drum upright.
4
Qty
Fig. 2
L**
Fig. 3
(F)
Caster Stem
Accessory
Caddy
Socket
(B)
