Installation

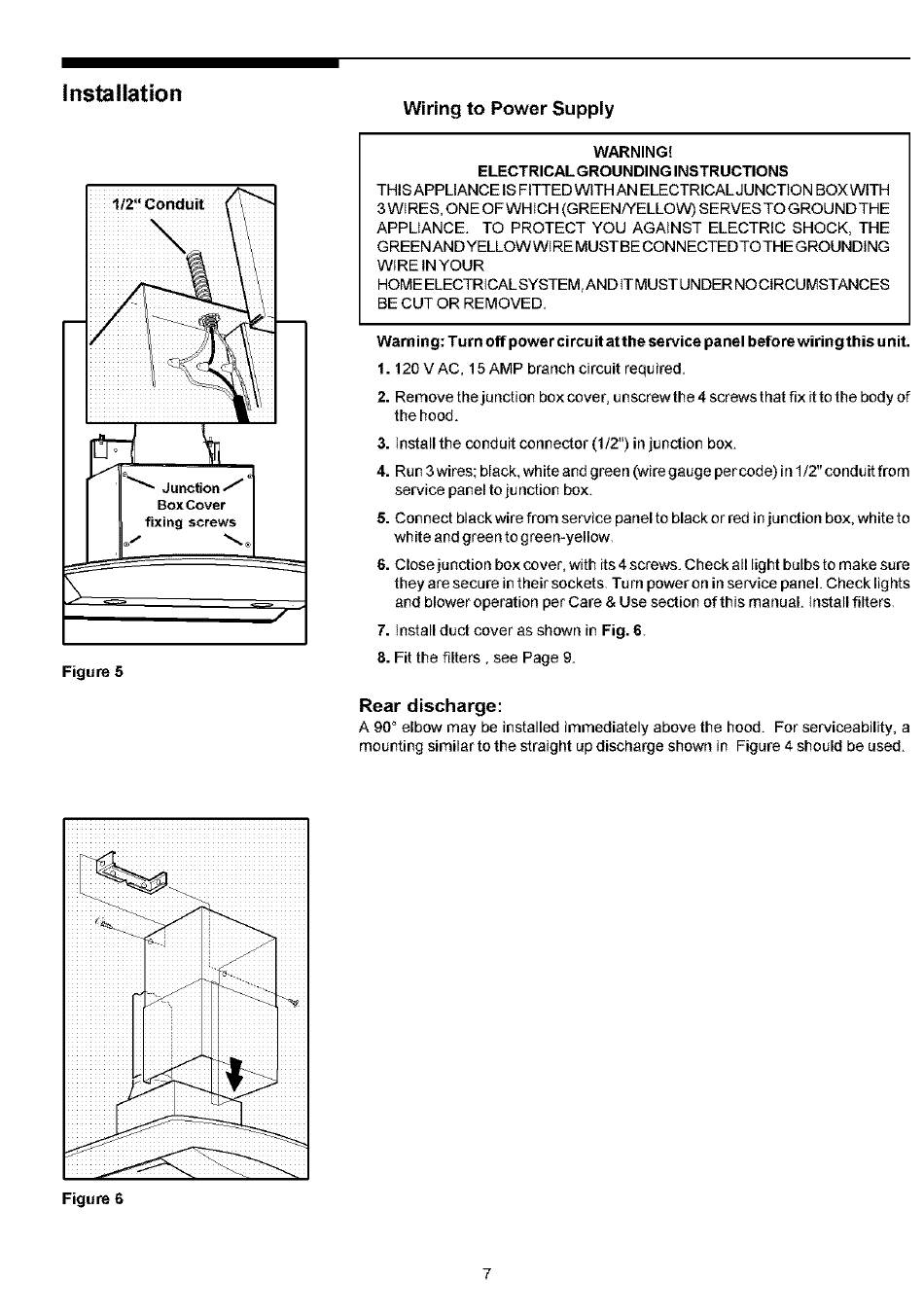

Figur_ 5
Wiring to Power Supply
WARNING!
ELECTRICALGROUNDING
INSTRUCTIONS
THISAPPLIANCE IS FITTED WITHAN ELECTRICAL JUNCTION BOXWITH
3 WIRES, ONE OF WHICH (GREEN/YELLOW) SERVESTO GROUNDTHE
APPLIANCE.
TO PROTECT YOU AGAINST ELECTRIC SHOCK, THE
GREEN AND YELLOWWIRE MUST BE CONNECTEDTO THE GROUNDING
WIRE IN YOUR
HOME ELECTRICALSYSTEM,AND
IT MUST UNDER NO CIRCUMSTANCES
BE CUT OR REMOVED.
Warn ing: Turn off power circu it at the service panel before wiring this u nit.
1. 120 VAC, 15 AMP branch circuit required.
2. Remove the junction box cover, unscrew the 4 screws that fix it to the body of
the hood.
3. install the conduit connector (1/2") in junction box.
4. Run 3 wires; black, white and green (wire gauge per code) in 1/2" conduit from
service panel to junction box.
5. Connect black wire from service panel to black or red in junction box, white to
white and green to green-yellow
6. Close junction box cover, with its 4 screws. Check all light bulbs to make sure
they are secure in their sockets Tum power on in service panel. Check lig hts
and blower operation per Care & Use section of this manual. Install filters
7. install duct cover as shown in Fig. 6
8. Fit the filters, see Page 9.
Rear
discharge:
A 90 ° elbow may be installed immediately above the hood. For serviceability, a
mounting similar to the straight up discharge shown in Figure 4 should be used.
Figur_ 6
7
