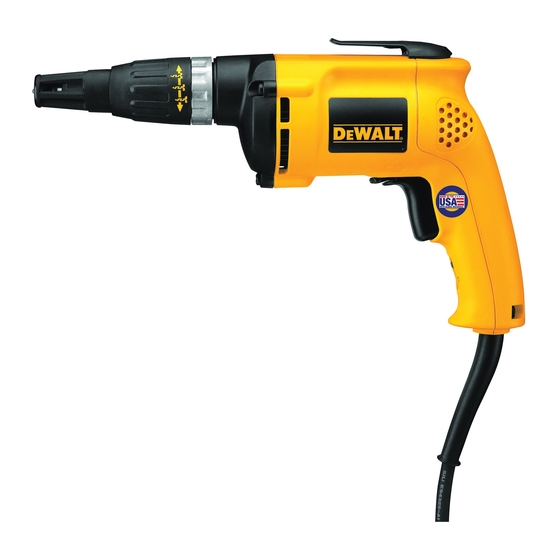

DeWalt DW252 Manual De Instrucciones

zt-
,o z
<
>o
of_
©o
t--
z
LU--
coco
OLU
OELU
t--CO
S,K,
OJ
"_O
©z
wwo
o,_<c_
> F- ,,-4
o%cr
cr <. co
c2_n
Z
i
@
b,,
€ -
°
DEWALTIndustrialTool Co., 701 East Joppa Road, Baltimore, MD 21286
(OCT13) Part No. N241602 DW252, etc. Copyright © 2002, 2004, 2010, 2013 DEWALT
The following are trademarks for one or more DEWALTpower tools: the yellow and black color scheme;
the "D" shaped air intake grill; the array of pyramids on the handgrip; the kit box configuration; and the
array of lozenge-shaped humps on the surface of the tool.
Definitions: Safety Guidelines
The definitions below describe the level of severity for each signal word. Please read the
manual and pay attention to these symbols.
ADANGER: Indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
A WARNING: Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
A CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result
in minor or moderate injury.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may
result in property damage.
IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS OR ANY DEWALT TOOL, CALL
US TOLL FREE AT: 1-800-4-DEWALT (1-800-433-g258}.
_ WARNING: To reduce the risk of injury, read the instruction manual.
General Power Tool Safety Warnings
_ ARNING! Read all safety warnings and all instructions. Failure to follow the warnings
and instructions may result in electric shock, fire and/or serious injury,
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control
2} ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not
use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is earthed
or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool Keep cord away from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
0 If operating a power tool in a damp location is unavoidable, use a ground fault
circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric
shock.
3} PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention while operating power tools may
result in serious personal injury,
b) Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used
for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off position before
connecting to power source and/or battery pack, picking up or carrying the tooL
Carrying power tools with your finger on the switch or energizing power tools that have the
switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or
a key left attached to a rotating part of the power tool may result in personal injury,
e) Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in
moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-
related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool Use the correct power tool for your application. The
correct power too/will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power too/
that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source andlor the battery pack from the power
tool before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally,
d) Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tooL
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the power tool's operation. If
damaged, have the power tool repaired before use. Many accidents are caused by
poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control
g) Use the power tool, accessories and tool bits, etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those intended could result
in a hazardous situation.
5) SERVICE
a) Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
Additional Safety Rules
• Hold power tool by insulated gripping surfaces when performing an operation where
the fastener may contact hidden wiring or its own cord. Fasteners contacting a "live" wire
may make exposed metal parts of the power tool "live" and could give the operator an electric
shock.
• Keep handles dry, clean, free from oil and grease. It is recommended to use rubber gloves.
This will enable better control
• KEEP TOOL DRY FROM SWEAT DURING USE. Reduce risk of electric shock by preventing
perspiration or other liquids from entering the tool during use in hot/humid conditions. Use
wristbands, gloves, drying towels or cloths as necessary,
• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long
hair can be caught in moving parts.
• An extension cord must have adequate wire size (AWG or American Wire Gauge) for
safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is
16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage
resulting in loss of power and overheating. When using more than one extension to make up
the total length, be sure each individual extension contains at least the minimum wire size. The
following table shows the correct size to use depending on cord length and nameplate ampere
rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the
cord.
Ampere Rating
More
Than
0
6
10
12
Not More
Than
6
10
12
16
Minimum Gauge for Cord Sets
Volts Total Length of Cord in Feet (meters)
120V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7)
240V 50 (15.2) 100 (30.5) 200 (61.0) 300
(91.4)
AWG
18
18
16
14
16
16
16
12
16 14
14 12
14 12
Not Recommended
WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use
face or dust mask if cutting operation is dusty, ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT}
• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI $12.6 ($3. 19) hearing protection,
• NIOSH/OSHA/MSHA respiratory protection.
A WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to the State of California to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromMm from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. Toreduce
your exposure to these chemicals: work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed to filter out microscopic particles.
• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and
other construction activities. Wear protective clothing and wash exposed areas with
soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote
absorption of harmful chemicals.
A WARNING: Use of this tool can generate and/or disperse dust, which may cause serious and
permanent respiratory or other injury, Always use NIOSH/OSHA approved respiratory protection
appropriate for the dust exposure. Direct particles away from face and body,
_WARNING: Always wear proper personal hearing protection that conforms to ANSI
$12.6 ($3.19) during use. Under some conditions and duration of use, noise from this product
may contribute to hearing loss.
• The label on your tool may include the following symbols. The symbols and their definitions are
as follows:
V..................... volts
Hz ................... hertz
min ................. minutes
--- or DC ..... direct current
(_) ................... Class I Construction
(grounded)
[] ................... Class II Construction
(double insulated)
.../min ............ per minute
IPM ................. impacts per minute
SPM ............... strokes per minute
A ......................... amperes
W........................ watts
or AC ............. alternating current
or AC/DC ...... alternating or direct current
no ....................... no load speed
n ......................... rated speed
@ ....................... earthing terminal
........................ safety alert symbol
BPM ................... beats per minute
RPM ................... revolutions per minute
sfpm ................... surface feet per minute
SAVE THESE INSTRUCTIONS FOR FUTURE USE
