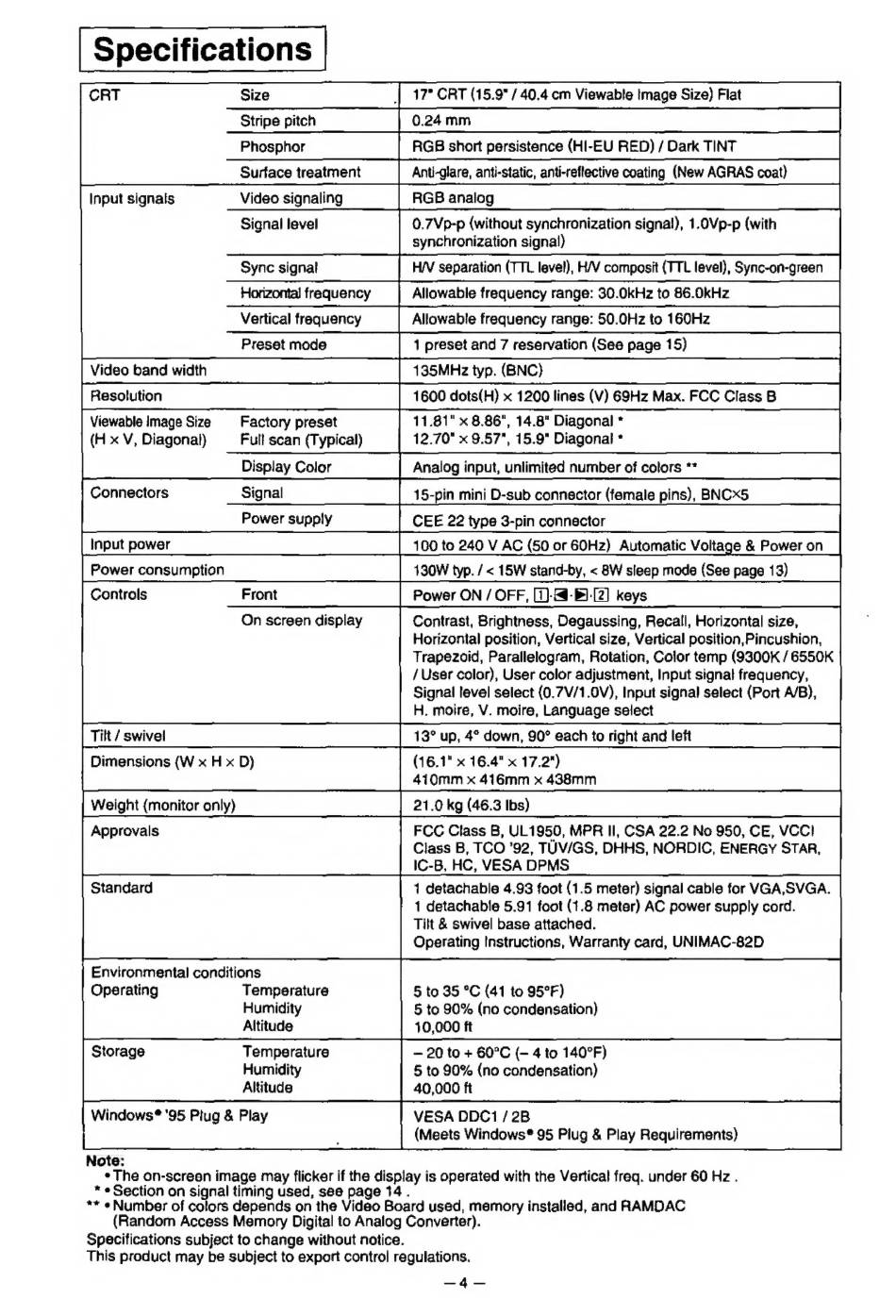

Specifications
17" CRT (15.9" / 40.4 cm Viewable Image Size) Flat
Signal level 0.7Vp-p (without synchronization signal), 1.0Vp-p (with
synchronization signal)
Sync signal H/V separation (TTL level), H/V composit (TTL level), Sync-on-green
Horizontal frequency Allowable frequency range: 30.0kHz to 86.0kHz
Vertical frequency Allowable frequency range: 50.0Hz to 160Hz
Preset mode 1 preset and 7 reservation (See page 15)
Video band width 135MHz typ. (BNC)
1600 dots(H) x 1200 lines (V) 69Hz Max. FCC Class B
Viewable Image Size Factory preset 11.81" x 8.86", 14.8" Diagonal *
(H x V, Diagonal) Full scan (Typical) 12.70" x 9.57", 15.9" Diagonal *
Display Color Analog input, unlimited number of colors **
Connectors Signal 15-pin mini D-sub connector (female pins), BNCx5
Power supply CEE 22 type 3-pin connector
100 to 240 V AC (50 or 60Hz) Automatic Voltage & Power on
130W typ. / « 15W stand-by, « 8W sleep mode (See page 13)
Controls Power ON / OFF, П]-{4-Ь].[2] keys
On screen display Contrast, Brightness, Degaussing, Recall, Horizontal size,
Horizontal position, Vertical size, Vertical position, Pincushion,
Trapezoid, Parallelogram, Rotation, Color temp (9300K / 6550K
/ User color), User color adjustment, Input signal frequency,
Signal level select (0.7V/1.0V), Input signal select (Port А/В),
H. moire, V. moire, Language select
Tilt / swivel 13? up, 4? down, 90? each to right and left
Dimensions (W x H x D) (16.1" x 16.4" x 17.2")
410mm x 416mm x 438mm
Weight (monitor only) 21.0 kg (46.3 Ibs)
Approvals FCC Class B, UL1950, MPR Il, CSA 22.2 No 950, CE, VCCI
IC-B, HC, VESA DPMS
Standard 1 detachable 4.93 foot (1.5 meter) signal cable for VGA,SVGA.
1 detachable 5.91 foot (1.8 meter) AC power supply cord.
Tilt & swivel base attached.
Operating Instructions, Warranty card, UNIMAC-82D
Environmental conditions
Operating Temperature 5 to 35 °С (41 to 95°Е)
Humidity 5 to 90% (no condensation)
Altitude 10,000 ft
Storage Temperature — 20 to + 60°C (- 4 to 140°Е)
Humidity 5 to 90% (no condensation)
Altitude 40,000 ft
Windows® '95 Plug & Play VESA DDC1 / 2B
| (Meets Windows" 95 Plug 4 Play Requirements)
Note:
* The on-screen image may flicker if the display is operated with the Vertical freq. under 60 Hz .
* «Section on signal timing used, see page 14 .
** «Number of colors depends on the Video Board used, memory installed, and RAMDAC
(Random Access Memory Digital to Analog Converter).
Specifications subject to change without notice.
This product may be subject to export control regulations.
