INSTALLATION INSTRUCTIONS

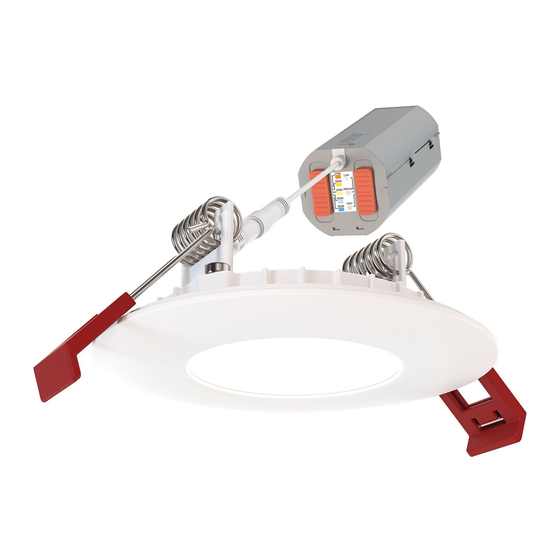

Juno Wafer 2" LED Downlight-WF2 Series
WF2 RD ALO25 SWW5 90CRI 120 or MVOLT **
WF2 DREG B ALO25 SWW5 90CRI 120 or MVOLT **
WF2 DREG SM ALO25 SWW5 90CRI 120 or MVOLT **
WF2 DREG B ALO25 SWW5 90CRI 120 MW M6
WF2 RD ALO25 SWW5 90CRI 120 MW M6
WF2 DREG SM ALO25 SWW5 90CRI 120 MW M6
WF2 RD ALO25 SWW5 90CRI MVOLT MW M6
WF2 DREG B ALO25 SWW5 90CRI MVOLT MW M6
WF2 DREG SM ALO25 SWW5 90CRI MVOLT MW M6
Visit
http://www.acuitybrands.com/brands/lighting/juno
to find complementary fixtures and much
more.
• Customer Support
• Our Complete Product Catalog
• Product Instruction Sheets
• Energy Saving Tips
• Product Specifications
• Glossary of Lighting Terms
One Lithonia Way · Conyers, GA 30012 · Phone 1-(800)705-7378
912-00497-001 REV A
Visit us at
www.acuitybrands.com/juno-recessed
DATE 01/2024
.
© 2024 Acuity Brands Lighting, Inc
1
PAGE |
