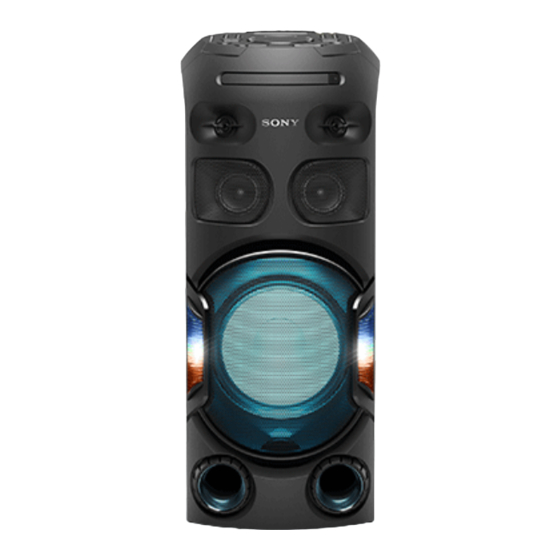

Sony MHC-V42D Manual De Instrucciones

Home Audio System
Equipo de audio para
el hogar
MHC-V42D
©2019 Sony Corporation
Printed in China
https://www.sony.net/
English Home Audio System
Before operating the unit, please read this guide thoroughly and retain it for
future reference.
WARNING
To reduce the risk of fire, do not cover the ventilation opening of the appliance
with newspapers, tablecloths, curtains, etc.
Do not expose the appliance to naked flame sources (for example, lighted
candles).
To reduce the risk of fire or electric shock, do not expose this appliance to
dripping or splashing, and do not place objects filled with liquids, such as vases,
on the appliance.
As the main plug is used to disconnect the unit from the mains, connect the unit
to an easily accessible AC outlet. Should you notice an abnormality in the unit,
disconnect the main plug from the AC outlet immediately.
Do not install the appliance in a confined space, such as a bookcase or built-in
cabinet.
The unit is not disconnected from the mains as long as it is connected to the AC
outlet, even if the unit itself has been turned off.
Indoor use only.
The following information is only applicable to equipment sold
in countries/regions comply to EMC regulation.
This equipment has been tested and found to comply with the limits set out in
the EMC regulation using a connection cable shorter than 3 meters.
CAUTION
Risk of explosion if the battery is replaced by an incorrect type.
Do not expose batteries or appliances with battery-installed to excessive heat,
such as sunshine and fire.
CAUTION
The use of optical instruments with this product will increase eye hazard.
For customers in Australia and India
Disposal of old electrical & electronic equipment
(applicable in the European Union and other
countries with separate collection systems)
Troubleshooting
If error code and "CHECK MANUAL" flashes on the display
See the following table for the corrective action.
Error code Corrective action
"PROTECT2" Contact your nearest Sony dealer.
"PROTECT3"/ Immediately unplug the AC power cord (mains lead), and check
if anything is blocking the ventilation openings of the unit. After
"PROTECT4"/
you have checked and found no problems, reconnect the AC
"PROTECT6"
power cord (mains lead), and turn on the system. If the issue
persists, contact your nearest Sony dealer.
Precautions
When carrying the unit
To avoid damaging the disc mechanism, perform the following procedure before
carrying the unit.
Use the controls on the unit to perform this operation.
1
Press  to turn on the system.
2
Press FUNCTION repeatedly to select "DVD/CD".
3
Remove the disc.
Press  to open and close the disc tray.
Wait until "NO DISC" appears on the display.
4
Press  to turn off the system.
5
Unplug the AC power cord (mains lead).
Notes on discs
• Before playing, wipe the disc with a cleaning cloth from the center outward to
the edge.
• Do not clean discs with solvents, such as benzine, thinner, or commercially
available cleaners or anti-static spray intended for vinyl LPs.
• Do not expose discs to direct sunlight or heat sources such as hot air ducts, nor
leave them in a car parked in direct sunlight.
On safety
• Completely disconnect the AC power cord (mains lead) from the wall outlet
(mains) if it is not going to be used for an extended period of time. When
unplugging the system, always grip the plug. Never pull the cord itself.
• Should any solid object or liquid get into the system, unplug the system, and
have it checked by qualified personnel before operating it again.
• AC power cord (mains lead) must be changed only at the qualified service shop.
On handling the system
This system is not drip-proof or waterproof. Make sure not to splash water on the
system or clean it with water.
On placement
• Do not place the system in an inclined position or in locations that are extremely
hot, cold, dusty, dirty, or humid or lacking adequate ventilation, or subject to
vibration, direct sunlight or a bright light.
• Be careful when placing the system on surfaces that have been specially treated
(for example, wax, oil, polish) as staining or discoloration of the surface may
result.
• If the system is brought directly from a cold to a warm location or is placed in a
very damp room, moisture may condense on the lens inside the unit, and cause
the system to malfunction. In this situation, remove the disc, and leave the
system turned on for about an hour until the moisture evaporates.
On heat buildup
• Heat buildup on the unit during operation is normal and is not a cause for
alarm.
• Do not touch the cabinet if it has been used continuously at a high volume
because the cabinet may have become hot.
• Do not obstruct the ventilation holes.
On the speaker system
The built-in speaker system is not magnetically shielded, and the picture on
nearby TV sets may become magnetically distorted. In this situation, turn off the
TV, wait 15 to 30 minutes, and turn it back on. If there is no improvement, move
the system far away from the TV.
IMPORTANT NOTICE
Caution: If you leave a still video image or on-screen display image displayed
on your TV for an extended period of time via this system, you risk permanent
damage to your TV screen. Projection TVs are especially susceptible to this.
Cleaning the cabinet
Clean this system with a soft cloth slightly moistened with a mild detergent
solution.
Do not use any type of abrasive pad, scouring powder, or solvent, such as thinner,
benzine, or alcohol.
4-748-034-11(1) On BLUETOOTH communication
• BLUETOOTH devices should be used within approximately 10 meters
(unobstructed distance) of each other. The effective communication range may
become shorter under the following conditions:
– When a person, metal object, wall or other obstruction is between the devices
with a BLUETOOTH connection.
– Locations where a wireless LAN is installed.
– Around microwave ovens that are in use.
– Locations where other electromagnetic waves are generated.
Reference Guide
• BLUETOOTH devices and wireless LAN (IEEE 802.11b/g/n) equipment use the
same frequency band (2.4 GHz). When using your BLUETOOTH device near a
Guía de referencia
device with wireless LAN capability, electromagnetic interference may occur.
This could result in lower data transfer rates, noise, or inability to connect. If this
happens, try the following remedies:
– Use this system at least 10 meters away from the wireless LAN equipment.
– Turn off the power of the wireless LAN equipment when using your
BLUETOOTH device within 10 meters.
– Use this system and BLUETOOTH device as closer to each other as possible.
• The radio waves broadcast by this system may interfere with the operation of
some medical devices. Since this interference may result in malfunction, always
turn off the power on this system and BLUETOOTH device in the following
locations:
– In hospitals, on trains, in airplanes, at gas stations, and any place where
flammable gases may be present.
– Near automatic doors or fire alarms.
• This system supports security functions that comply with BLUETOOTH
specifications to ensure secure connections during communication using
BLUETOOTH technology. However, this security may be insufficient depending
on the setting contents and other factors, so always be careful when performing
communication using BLUETOOTH technology.
• Sony cannot be held liable in any way for damages or other loss resulting from
information leaks during communication using BLUETOOTH technology.
• BLUETOOTH communication is not necessarily guaranteed with all BLUETOOTH
devices that have the same profile as this system.
• BLUETOOTH devices connected with this system must comply with the
BLUETOOTH specification prescribed by the Bluetooth SIG, Inc., and must be
certified to comply. However, even when a device complies with the
BLUETOOTH specification, there may be cases where the characteristics or
specifications of the BLUETOOTH device make it impossible to connect, or may
result in different control methods, display or operation.
• Noise may occur or the audio may cut off depending on the BLUETOOTH device
connected with this system, the communications environment, or surrounding
conditions.
About the Voice Guidance
IMPORTANT: THE VOICE GUIDANCE FOR THIS SYSTEM IS ONLY
AVAILABLE IN ENGLISH.
Depending on the status of the system, the voice guidance outputs from the
system as follows:
• When setting the system to the pairing mode: "BLUETOOTH pairing"
• When connected to a BLUETOOTH device: "BLUETOOTH connected"
• When disconnected from a BLUETOOTH device: "BLUETOOTH disconnected"
• When the settings are completed for the Speaker Add function: "Double mode"
• When setting the output mode during the Speaker Add function:
"Left/Right/Double mode"
License and Trademark Notice
• is a trademark of DVD Format/Logo Licensing Corporation.
• "DVD+RW", "DVD-RW", "DVD+R", "DVD-R", "DVD VIDEO", and the "CD" logos are
trademarks.
• WALKMAN® and WALKMAN® logo are registered trademarks of Sony
Corporation.
• MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer
IIS and Thomson.
• Windows Media is either a registered trademark or trademark of Microsoft
Corporation in the United States and/or other countries.
• This product is protected by certain intellectual property rights of Microsoft
Corporation. Use or distribution of such technology outside of this product is
prohibited without a license from Microsoft or an authorized Microsoft
subsidiary.
• This system incorporates Dolby* Digital.
* Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and
the double-D symbol are trademarks of Dolby Laboratories.
• This system incorporates High-Definition Multimedia Interface (HDMI™)
technology. The terms HDMI and HDMI High-Definition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc. in the United States and other countries.
• "BRAVIA" is a trademark of Sony Corporation.
• LDAC™ and LDAC logo are trademarks of Sony Corporation.
• The BLUETOOTH® word mark and logos are registered trademarks owned by the
Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under
license. Other trademarks and trade names are those of their respective owners.
• The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the
United States and in other countries.
• Android, Google Play, and the Google Play logo are trademarks of Google LLC.
• Apple, the Apple logo, iPhone, iPod, and iPod touch are trademarks of Apple
Inc., registered in the U.S. and other countries. App Store is a service mark of
Apple Inc., registered in the U.S. and other countries.
• Use of the Made for Apple badge means that an accessory has been designed
to connect specifically to the Apple product(s) identified in the badge, and has
been certified by the developer to meet Apple performance standards. Apple is
not responsible for the operation of this device or its compliance with safety
and regulatory standards.
• THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO
LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR
(i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD
("MPEG-4 VIDEO")
AND/OR
(ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED
IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED
FROM A VIDEO PROVIDER LICENSED TO PROVIDE MPEG-4 VIDEO.
NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE.
ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL,
INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM
MPEG LA, L.L.C.
HTTP://WWW.MPEGLA.COM
• All other trademarks are trademarks of their respective owners.
• In this manual, ™ and ® marks are not specified.
Specifications
Speaker section
Speaker system:
3-way, Double Bass Reflex
Speaker unit:
Tweeter L/R: 40 mm, cone type
Midrange L/R: 80 mm, cone type
Woofer: 250 mm, cone type
Inputs
AUDIO/PARTY CHAIN IN (TV) L/R:
Voltage 2 V, impedance 47 kilohms
TV (ARC):
Supported audio signal:
2-channel Linear PCM
MIC1:
Sensitivity 1 mV, impedance 10 kilohms
MIC2/GUITAR:
Sensitivity 1 mV, impedance 10 kilohms (When guitar mode is turned off.)
Sensitivity 200 mV, impedance 1 Megaohm (When guitar mode is turned on.)
Outputs
AUDIO/PARTY CHAIN OUT L/R:
Voltage 2 V, impedance 1 kilohm
HDMI OUT (TV) ARC:
Supported audio signal:
2-channel Linear PCM (up to 48 kHz), Dolby Digital
HDMI section
Connector:
Type A (19 pin)
Disc player section
System:
Compact disc and digital audio and video system
Laser Diode Properties
Emission Duration: Continuous
Laser Output*: Less than 44.6 μW
* This output is the value measurement at a distance of 200 mm from the
objective lens surface on the Optical Pick-up Block with 7 mm aperture.
Frequency response:
20 Hz – 20 kHz
Video color system format:
Latin American models:
NTSC
Other models:
NTSC and PAL
USB section
Supported USB device:
Mass Storage Class
Maximum current:
1 A
(USB) port:
Type A
FM tuner section
FM stereo, FM superheterodyne tuner
Antenna:
FM lead antenna
Tuning range:
87.5 MHz – 108.0 MHz (50 kHz step)
BLUETOOTH section
Communication system:
BLUETOOTH Standard version 4.2
Output:
BLUETOOTH Standard Power Class 2
Maximum output power:
<9.5 dBm
Maximum number of devices to be registered:
8 devices
Maximum number of simultaneous connection (Multipoint):
3 devices
Maximum communication range:
Line of sight approx. 10 m
Frequency band:
2.4 GHz band (2.4000 GHz – 2.4835 GHz)
Modulation method:
FHSS (Freq Hopping Spread Spectrum)
1)
Compatible BLUETOOTH profiles 2) :
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio Video Remote Control Profile)
SPP (Serial Port Profile)
Supported codecs:
SBC (Subband Codec)
AAC (Advanced Audio Coding)
LDAC
1) The actual range will vary depending on factors such as obstacles between devices,
magnetic fields around a microwave oven, static electricity, reception sensitivity,
antenna's performance, operating system, software application, etc.
2) BLUETOOTH standard profiles indicate the purpose of BLUETOOTH communication
between devices.
NFC section
Frequency band:
13.56 MHz
Supported audio formats
Supported bit rate and sampling frequencies:
MP3:
32/44.1/48 kHz, 32 kbps – 320 kbps (VBR)
AAC:
44.1 kHz, 48 kbps – 320 kbps (CBR/VBR)
WMA:
44.1 kHz, 48 kbps – 192 kbps (CBR/VBR)
WAV:
44.1/48 kHz (16 bit)
Supported video formats
Xvid:
Video codec: Xvid video
Bit rate: 4.854 Mbps (MAX)
Resolution/Frame rate:
720 × 480, 30 fps
720 × 576, 25 fps (except for Latin American models)
Audio codec: MP3
MPEG4:
File format: MP4 File Format
Video codec: MPEG4 Simple Profile (AVC is not compatible.)
Bit rate: 4 Mbps
Resolution/Frame rate:
720 × 480, 30 fps
720 × 576, 25 fps (except for Latin American models)
Audio codec: AAC-LC (HE-AAC is not compatible.)
DRM: Not compatible
General
Power requirements:
AC 120 V – 240 V, 50/60 Hz
Power consumption:
115 W
Power consumption (at the Power Saving mode):
0.5 W (When "BT STBY" is set to "OFF" and [CONTROL FOR HDMI] is set to [OFF].)
2 W* (When "BT STBY" is set to "ON" and [CONTROL FOR HDMI] is set to [ON].)
Dimensions (W/H/D) (Approx.):
328 mm x 799 mm x 300 mm
Mass (Approx.):
12.6 kg
Operating temperature:
5 °C to 35 °C
* The power consumption of the system will be less than 0.5 W when there is no HDMI
connection and "BT STBY" is set to "OFF".
Supplied accessories
Remote control (DC 3 V) (1)
R03 (DC 1.5 V) (size AAA) batteries (2)
FM lead antenna (aerial) (1)
AC power cord (mains lead) (1)
AC plug adaptor* (1) (supplied only for certain areas)
* This plug adaptor is not for the use in Chile, Paraguay and Uruguay. Use this plug
adaptor in the countries/regions where it is necessary.
Design and specifications are subject to change without notice.
Compatible iPhone/iPod models
iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s
Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPod touch (6th generation)
The system is compatible with iOS 10.0 or later.
Español Equipo de audio para el hogar
Antes de utilizar la unidad, lea esta guía atentamente y consérvela para
consultarla en el futuro.
Nombre del producto: Equipo de audio para el hogar
Modelo: MHC-V42D
Tensión nominal: ca 120 V – 240 V
Frecuencia nominal: 50/60 Hz
POR FAVOR LEA DETALLADAMENTE ESTE MANUAL DE INSTRUCCIONES ANTES DE
CONECTAR Y OPERAR ESTE EQUIPO.
RECUERDE QUE UN MAL USO DE SU APARATO PODRÍA ANULAR LA GARANTÍA.
AVISO IMPORTANTE PARA MÉXICO
La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es
posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este
equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que
pueda causar su operación no deseada.
Para consultar la información relacionada al número del certificado, refiérase a la
etiqueta del empaque y/o del producto.
ADVERTENCIA
Para reducir el riesgo de incendios, no cubra las aberturas de ventilación del
aparato con periódicos, manteles, cortinas, etc.
No exponga el aparato a fuentes con llama descubierta (por ejemplo, velas
encendidas).
Para reducir el riesgo de incendios o descargas eléctricas, no exponga el aparato
a goteos o salpicaduras, ni coloque recipientes con líquidos, como jarrones,
encima de éste.
Puesto que el enchufe principal se utiliza para desconectar la unidad de la
corriente, conecte la unidad a una toma de corriente de ca de fácil acceso. En
caso de observar un funcionamiento anómalo de la unidad, desconecte
inmediatamente el enchufe principal de la toma de corriente de ca.
No instale el aparato en un espacio cerrado, como una estantería para libros o un
armario empotrado.
Aunque se haya apagado la unidad, esta continuará recibiendo suministro
eléctrico mientras esté conectada a la toma de corriente de ca.
Solo para uso en interiores.
La siguiente información solo se aplica al equipo que se
comercializa en países/regiones que cumplen con la Normativa
sobre Compatibilidad Electromagnética (EMC).
Este equipo se ha probado y ha demostrado cumplir con los límites establecidos
en la Normativa sobre Compatibilidad Electromagnética (EMC) cuando se utiliza
un cable de conexión de una longitud inferior a 3 metros.
PRECAUCIÓN
Existe riesgo de explosión si la pila se reemplaza por pilas de distinto tipo.
No exponga las pilas o aparatos con pilas instaladas a fuentes de calor excesivo,
como la luz solar y fuego.
PRECAUCIÓN
El uso de instrumentos ópticos con este producto aumentará el riesgo de lesiones
oculares.
Solución de problemas
Si el código de error y "CHECK MANUAL" parpadean en la
pantalla
Consulte la siguiente tabla para conocer la acción correctiva.
Código de error Acción correctiva
"PROTECT2" Póngase en contacto con el distribuidor Sony más cercano.
"PROTECT3"/ Desenchufe inmediatamente el cable de alimentación de ca y
compruebe si hay algo que bloquee las aberturas de
"PROTECT4"/
ventilación de la unidad. Después de que se haya verificado
"PROTECT6"
que no existe ningún problema, vuelva a conectar el cable de
alimentación de ca y encienda el sistema. Si el problema
continúa, póngase en contacto con el distribuidor de Sony
más cercano.
Precauciones
Cuando transporte la unidad
Para evitar daños en el mecanismo del disco, realice el siguiente procedimiento
antes de transportar la unidad.
Utilice los controles de la unidad para realizar esta operación.
1
Pulse  para encender el sistema.
2
Pulse FUNCTION varias veces para seleccionar "DVD/CD".
3
Extraiga el disco.
Pulse  para abrir y cerrar la bandeja de discos.
Espere hasta que "NO DISC" aparezca en la pantalla.
4
Pulse  para apagar el sistema.
5
Desenchufe el cable de alimentación de ca.
Notas sobre discos
• Antes de reproducirlos, limpie el disco con un trapo desde el centro hacia el
borde.
• No limpie discos con disolventes, como bencina, diluyente o limpiadores
disponibles en el mercado o spray antiestático para LP de vinilo.
• No exponga los discos a la luz directa del sol o fuentes de calor como
conductos de aire caliente, ni los deje en un coche en un aparcamiento a la luz
directa del sol.
Seguridad
• Desconecte el cable de alimentación de ca de la toma de corriente de la pared
si no va a utilizar el sistema durante un periodo largo de tiempo. Cuando
desconecte el sistema hágalo siempre agarrando el enchufe. Nunca tire del
cable.
• Si cae dentro del sistema algún objeto sólido o líquido, desenchúfelo y deje que
personal calificado lo compruebe antes de utilizarlo de nuevo.
• El cable de alimentación de ca debe ser sustituido únicamente en un taller de
servicio calificado.
Sobre el manejo del sistema
Este sistema no es resistente al agua ni a prueba de salpicaduras. Asegúrese de
no salpicar agua sobre el sistema y no lo limpie con agua.
