Connections

Caution
When connecting a microphone or electric guitar to the unit,
be sure to turn the unit off.

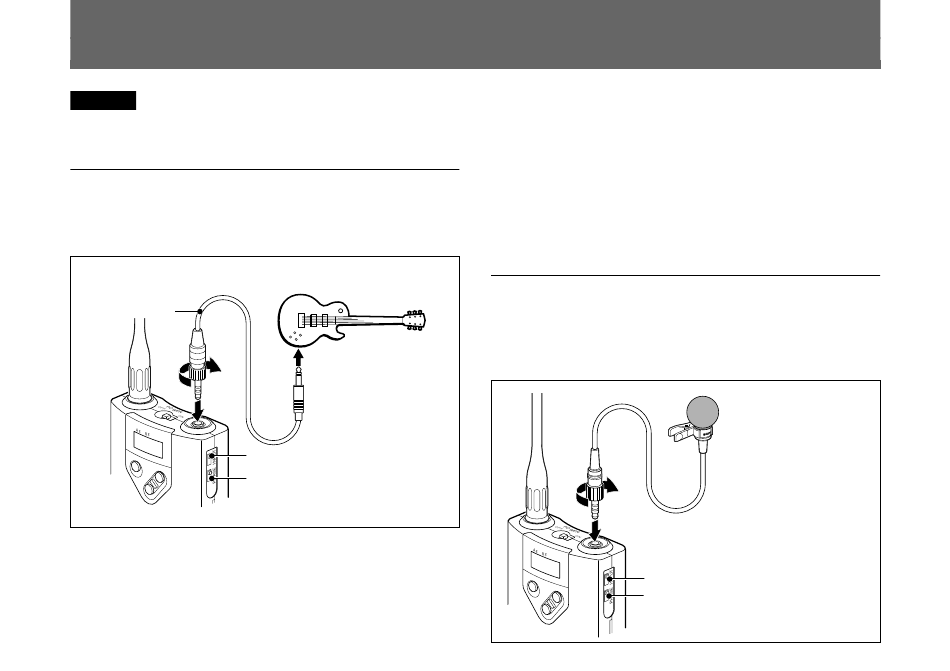

To connect an electric guitar
For connection of an electric guitar, use the optional GC-0.7
MP Guitar Cable.
GC-0.7 MP
guitar cable
(optional)
2
1
B A T T
C H
S E T
+
–
To obtain the proper output level
The optimum level setting depends on type of guitar. Set the
INPUT level switch and the ATT (attenuator) level of this unit
according to the guitar to be used.
8
(GB)
INPUT level switch: –40 dBV
PHASE switch: =
Loud noise: If noise is not negligible even if the INPUT
switch is set at "–40 dBV" and the ATT level is "0 dB,"
set the INPUT switch to "–60 dBV" and adjust the ATT
level for an optimum result.
Distortion: If the guitar sound is distorted even if the
INPUT switch is set at "–40 dBV" and the ATT level is
"0 dB," increase the ATT level by 3 dB (0 to 3 to 6 . . .
21 dB).
For the ATT level adjustment, see page 13.
To connect a microphone
When using one of the following optional Sony Electret
Condenser Microphones equipped with a miniature phone
plug, connect it as illustrated below.
2
1
B A T T
C H
INPUT switch: –60 dBV
S E T
+
Set the PHASE switch to "ø" when
–
using the ECM-44BMP.
For other microphone, set it to "=."
Sony
Electret Condenser
Microphones (optional):
ECM-44BMP
ECM-122BMP
ECM-310BMP
