Chassis - Sony KP-51WS510 Manual De Servicio

NOTE: The components identifi ed by shading and ! mark are critical for safety.
Replace only with part number specifi ed.

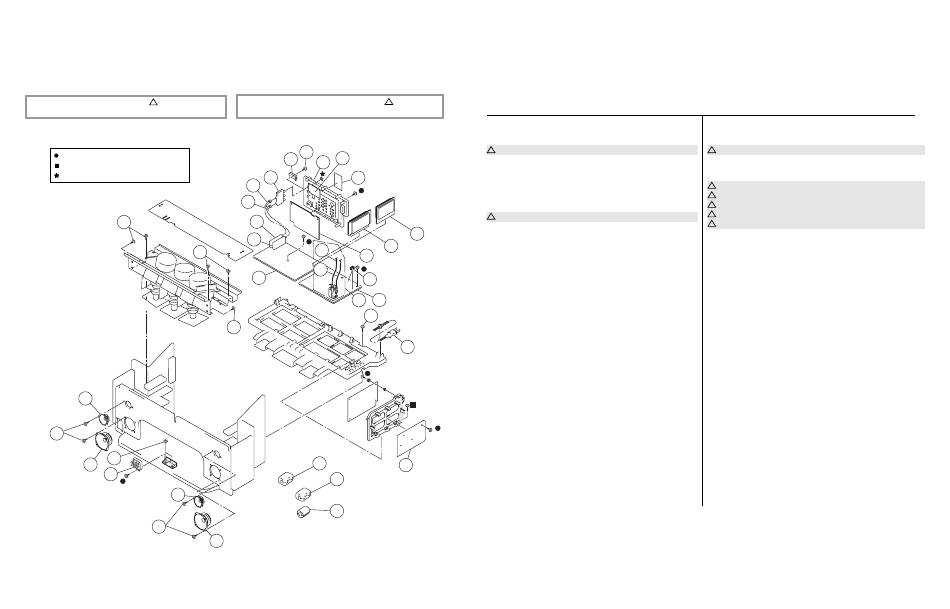

6-3. CHASSIS

7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
7-685-661-14 SCREW +BVTP 4X12 TYPE2 IT-3
4-635-966-01 SCREW (HEX)
50
50
51
50
50
52
53
51
50
NOTE: Les composants identifi es per un trame et une marque !
la securite. Ne les remplacer que par une piece portant le numero specifi e.
50
62
60
61
59 63
58
57
56
55
65
71
66
70
54
67
69 68
50
50
74
75
76
52
sont critiques pour
REF.NO. PART NO.
50 4-081-063-01 SCREW, DOME WASHER HEX TAP 4X20
51 1-529-403-41 LOUDSPEAKER (6.6CM)
52 1-825-525-11 LOUDSPEAKER (13CM)
53 1-223-925-34 RESISTOR ASSY (HIGH-VOLTAGE)
!
* 54 A-1302-177-A A BOARD, COMPLETE
55 8-598-594-10 TUNER, FSS BTF-FA421
56 8-598-593-20 TUNER, FSS BTF-WA421
* 57 1-557-056-31 CABLE, P-P
* 58 1-556-945-21 CABLE, P-P
59 1-771-787-13 SWITCH, RF ANTENNA
!
64
60 4-069-675-01 CAP, TERMINAL BOARD
61 4-089-438-01 BOARD, TERMINAL
* 62 A-1300-324-A UD BOARD, COMPLETE
63 4-089-194-01 LABEL, TERMINAL
* 64 A-1302-179-A AD BOARD, COMPLETE
72
73
— 91 —
DESCRIPTION REF.NO. PART NO.
* 65 A-1302-209-A
* 66 A-1302-178-A
67 3-710-578-01
* 68 A-1302-180-A
!
The high voltage leads associated with the FBT on the D Board are not
included and must be ordered separately. (SEE 70-71)
69 1-453-285-51
!
! 70 1-779-095-51
71 1-900-260-40
!
! 72 1-790-001-12
* 73 A-1302-383-A
!
74 1-500-082-11
75 1-500-021-11
76 1-469-241-11
KP-51WS510/57WS510/65WS510
DESCRIPTION ASSEMBLY INCLUDES
B BOARD, COMPLETE
U BOARD, COMPLETE
COVER, VOLUME, 6 MOLD
D BOARD, COMPLETE
FBT ASSY, NX-4006 (70-71)
LEAD ASSY, HIGH-VOLTAGE
CONNECTOR ASSY, MV
CORD, AC POWER (WITH CONNECTOR
G BOARD, COMPLETE
CLAMP, SLEEVE FERRITE
CLAMP, SLEEVE FERRITE
(KP-57WS510/65WS510 ONLY)
CORE, FERRITE (RFC-8 BK)
