USE LIMITS

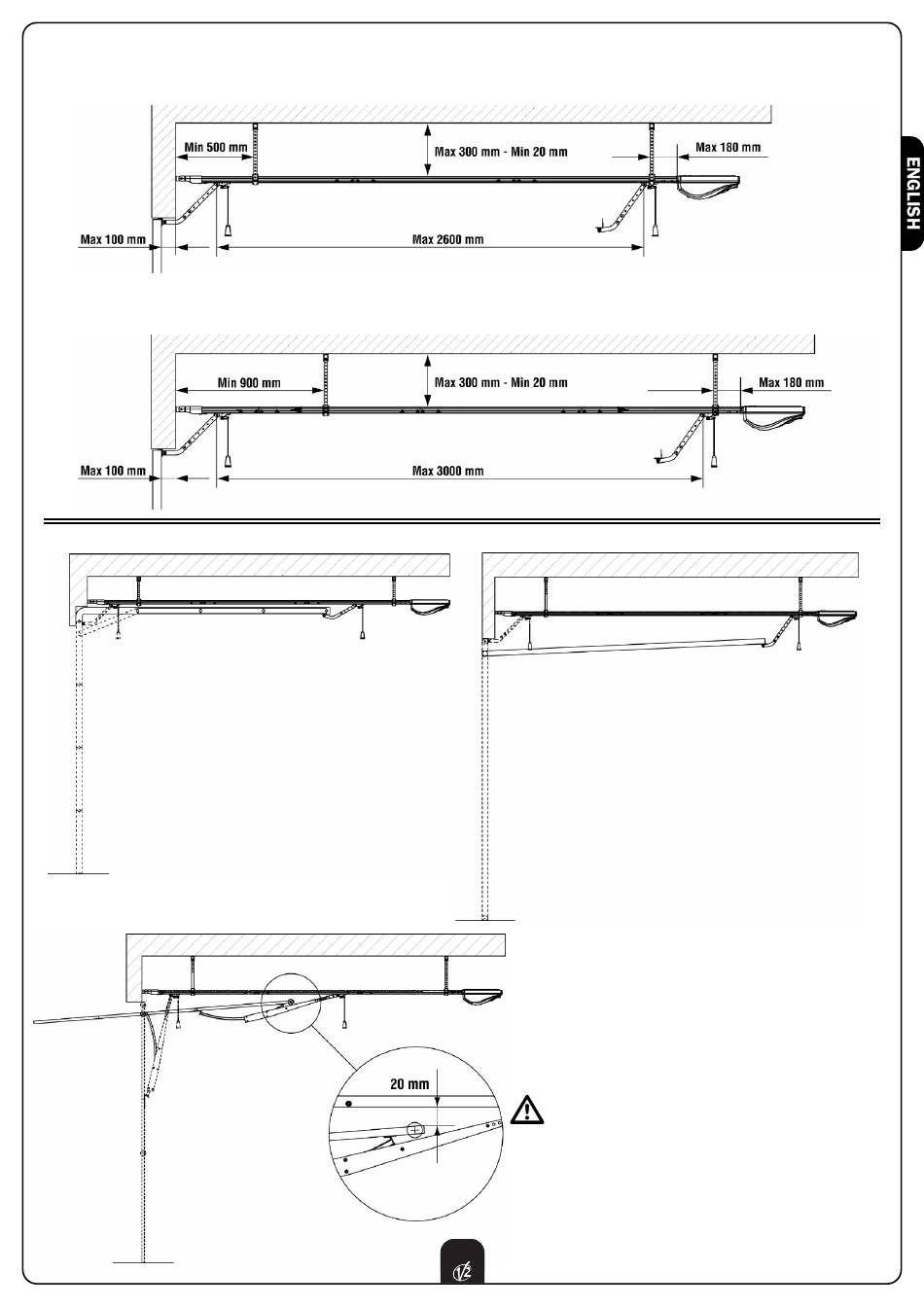

JET-24V can automate sectional doors max 2,6 m high, balanced doors max 2,6 m and counterweight balanced door max 2,8 m. Take
into consideration in order to install properly.
In order to automate higher doors it is necessary to install the mounting extension J1.
Take into consideration in order to install properly.
SECTIONAL DOORS: max 2,6 m high.
The mounting extension J1 allows automation of
sectional doors up to max 3 m.
SPRING DOORS: max 2,6 m high.
The mounting extension J1 allows automation of balanced
doors up to max 3 m.
COUNTERWEIGHT BALANCED DOOR: max 2,8 m high.
The mounting extension J1 allows automation of
counterweight balanced doors up to max 3 m.
WARNING:
• To automate any kind of counterweight balanced door it
is necessary to install the adapter arm J4.
• As the counterweight balanced door can open with a
non-straight movement, be sure that the distance
between the upper side of the door and the section
must not be under 20 mm.
