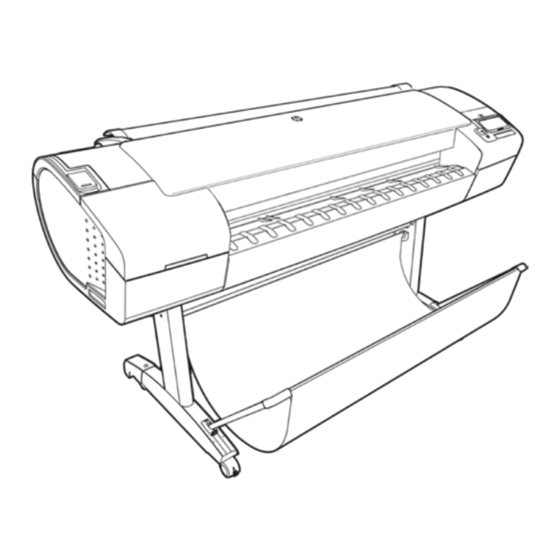

HP DESIGNJET T790 ePrinter Serie Instrucciones De Montaje Del Producto
Ocultar thumbs
Ver también para DESIGNJET T790 ePrinter Serie:
- Manual del usuario (210 páginas) ,
- Manual del usuario (233 páginas)
Publicidad
Enlaces rápidos
HP DESIGNJET
T790 and T1300
ePrinter Series
Product Assembly
EN
Instructions
Instructions d'assemblage
FR
du produit
Instrucciones de montaje
ES
del producto
Instruções de montagem
PT
do produto
© 2012 Hewlett-Packard Company
Large Format Division
Camí de Can Graells 1-21 · 08174
Sant Cugat del Vallès
Barcelona · Spain
All rights reserved
Printed in XXX
Hardware Setup:
EN
1- open the printer box
2- Stand assembly
3- Unpack more components
4- Power and network configuration
5- Printhead and cartridge setup
Software setup:
Experience HP Designjet cloud printing, using free
HP Designjet ePrint & Share. Now, it's easy to print
large-format documents from virtually anywhere,
using your laptop, printer touchscreen, iPhone®, or
iPad®.
Installation du matériel :
FR
1- Ouverture du carton de l'imprimante
2- Assemblage du support
3- Déballage des autres composants
4- Configuration réseau et alimentation
5- Installation des têtes d'impression et des
cartouches
Installation du logiciel :
Découvrez l'impression sur le Cloud HP Designjet
avec le logiciel gratuit HP Designjet ePrint & Share.
Il est désormais facile d'imprimer des documents
grand format depuis quasiment n'importe où à
l'aide d'un ordinateur portable, de l'écran tactile de
l'imprimante, d'un iPhone® ou d'un iPad®.
Instalación del hardware:
ES
1- Apertura de la caja de la impresora
2- Montaje del soporte
3- Desembalaje de más componentes
4- Configuración de red y alimentación
5- Instalación del cabezal de impresión y el
cartucho
Instalación del software:
Experimente la impresión remota de HP Designjet,
mediante la solución gratuita HP Designjet ePrint &
Share. Ahora resulta muy fácil imprimir documentos
de gran formato desde prácticamente cualquier
lugar mediante un portátil, la pantalla táctil de la
impresora, un iPhone® o un iPad®.
Configuração de hardware:
PT
1- Abra a caixa da impressora
2 - Levante a montagem
3 - Retire mais componentes da embalagem
4 - Configuração de rede e energia
5 - Configuração de cartucho de tinta e cabeçotes
de impressão
Configuração de software:
Experimente a impressão na nuvem HP Designjet
usando o
HP Designjet ePrint & Share gratuito. Agora, é
fácil imprimir documentos em grandes formatos de
praticamente qualquer lugar usando olaptop, a tela
sensível ao toque da impressora, o iPhone® ou o
iPad®.
