Carton Inventory
WARNING
CAUTION
Transformer (1)
Insulated Staples (30)
Low Voltage Wire 35'
Optional Low Voltage Wire 50'
(Not Shown) 41A6669
Installation (Figure 1)
NOTE: For use only with Residential Jackshaft Openers.
Disconnect all power to the opener if already installed.
1
Disconnect the Standby Power Unit
installed.
Determine mounting location for the interface within
2
3' (.9 m) of opener. Mount and secure with screws and
anchors.
Plug interface into opener.
3
Position transformer within 1' (.3 m) of outlet, secure with
4
screws and anchors.
NOTE: If transformer is being secured to ceiling, the
transformer must be secured to a ceiling joist.
Separate low voltage wires. One end of the wire is prepared
5
for convenience. Cut wire to appropriate length and strip
7/16" (11 mm) of insulation from the end of the wire.
Use one of the stripped wires to connect COM screw
6
terminals on the interface and transformer. Use the other
stripped wire to connect 24V screw terminals. (Polarity is
not important.)
Before permanently mounting, reduce slack in cord. Secure
7
with insulated staples.
Use cable tie to bind power cord from opener. Be sure to
8
keep power cord away from rail and out of the reach of
children.
Plug transformer into the outlet. To reduce the risk of electric
9
shock, your garage door opener has a grounding type plug
with a third grounding pin. This plug will only fit into a
grounding type outlet. If the plug doesn't fit into the outlet
you have, contact a qualified electrician to install the proper
outlet.
NOTE: Opener may operate at a slower speed while using
this device.
Connect to Standby Power Unit
(Not Provided) (Figure 2)
Connect the SPU connector from the SPU to the interface.
NOTE: If connecting to a standby power unit, the interface and
SPU must be within 3' (.9 m) of each other.

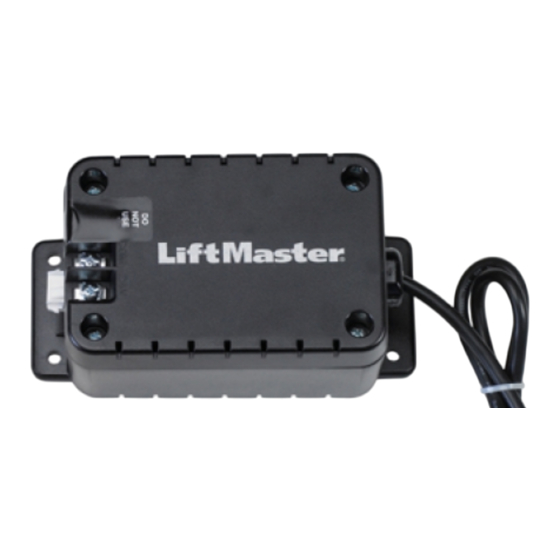

Interface (1)
Screws (8)
Cable Tie (1)
Anchor (8)
®
from the opener if it is
®
(SPU)
Models 580LM & 580LMC
Residential Jackshaft Opener Alternate
WARNING
WARNING
To prevent possible SERIOUS INJURY or DEATH from electrocution
or fire:
WARNING
• Disconnect power to opener BEFORE proceeding.
• NEVER use an extension cord, 2-wire adapter, or change plug in
any way to make it fit outlet. Be sure the opener is grounded.
NOTE: If the Smart Control Panel is showing the message
"Battery Back-up enabled" or the LCD Backlight is not on under
power from the Alternate Power System contact service at
1-800-528-9131.
Figure 1
9
Figure 2
Power System Accessory
8
2
COM 24V
7
4-6
3
4-6
