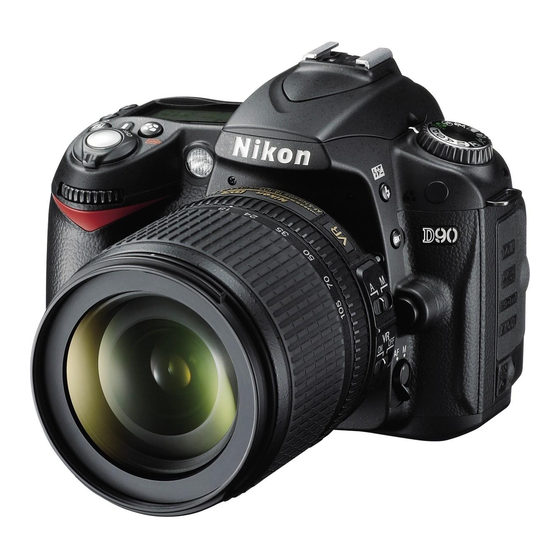

Nikon D90 Manual Del Usuario

En
Errata
Please note the following corrections to the D90 User's Manual.
pg. 30
Incorrect
Correct
pg. 44
Incorrect
Press X to zoom in up to a maximum of 6.7 ×, or press W to zoom out.
While the view through the lens is zoomed in, a navigation window will
appear in a gray frame at the bottom right corner of the display. Use the
multi selector to scroll to areas of the frame not visible in the monitor.
Press J to exit zoom.
Correct
Press X to zoom in up to a maximum of 6.7 ×, or press W to zoom out.
While the view through the lens is zoomed in, a navigation window will
appear in a gray frame at the bottom right corner of the display. Use the
multi selector to scroll to areas of the frame not visible in the monitor.
Press the J button to start recording (pg. 50).
pg. 50
Incorrect
D
Maximum Size
Movie files can be up to 2 GB in size. The maximum length is 5 min for
movies with a frame size of 1280 × 760, 20 min for other movies; note
that depending on memory card write speed, shooting may end before
this length is reached.
Correct
D
Maximum Size
Movie files can be up to 2 GB in size. The maximum length is 5 min for
movies with a frame size of 1280 × 720, 20 min for other movies; note
that depending on memory card write speed, shooting may end before
this length is reached.
pg. 121
Incorrect
3
Select the number of shots.
Press 1 or 3 to choose the number of exposures (three or four) that
will be combined to form a single photograph and press J.
Correct
3
Select the number of shots.
Press 1 or 3 to choose the number of exposures (two or three) that
will be combined to form a single photograph and press J.
Printed in Thailand
6MB04523-01
▼
▼
▼
▼
pg. 163
Incorrect
Highlights for master RGB channel and for individual red,
Highlights green, and blue channels are shown in photo information
display. Very bright areas blink on and off.
Correct
Highlights are shown in photo information display. Very
Highlights
bright areas blink on and off.
pg. 245
Incorrect
Clean at
The image sensor is cleaned automatically at startup
7 startup &
and at shutdown.
shutdown
Cleaning off
8 Automatic image sensor cleaning off.
(default)
Correct
Clean at
startup & The image sensor is cleaned automatically at startup
7
shutdown and at shutdown.
(default)
8 Cleaning off Automatic image sensor cleaning off.
pg. 254
Incorrect
Some options are not available at certain combinations
Menu item of settings or when no memory card is inserted. Note
can not be that Battery info option is not available when camera
selected. is powered by an optional AC adapter or by optional
MB-D80 battery pack with AA batteries.
Correct
Some options are not available at certain combinations
Menu item
of settings or when no memory card is inserted. Note
can not be
that Battery info option is not available when camera
selected.
is powered by an optional AC adapter.
pg. 269
Incorrect
• Autofocus: Single-servo AF (AF-S); continuous-servo AF (AF-C);
predictive focus tracking automatically activated according
Lens servo
to subject status (AF-A)
• Manual (M): Electronic range finding supported
Correct
• Autofocus (AF): Instant single-servo AF (AF-S); continuous-servo
AF (AF-C); auto AF-S/AF-C selection (AF-A); predictive focus
Lens servo
tracking activated automatically according to subject status
• Manual (M): Electronic rangefinder can be used
pg. 273
Incorrect
Nikon Internal Focusing (IF) system; autofocus uses a Silent
Focusing
Wave motor;manual focus uses separate focusing ring
Correct
Autofocus with Silent Wave Motor; manual focus; manual
focus supported when A-M switch is set to A or M. Focus can
Focusing be adjusted by rotating lens focusing ring after locking focus
in single-servo autofocus. Do not use focusing ring while
camera is focusing.
▼
▼
▼
▼
▼
