Cutting Base Molding Up to 3.5"
(89 mm) High Vertically Against the
Fence
Position material as shown in Figure T.
Fig. T
All cuts should be made with the back of the molding
against the fence and with the bottom of the molding
against the table.
inside corner
Miter left 45°
Left side
Save left side of cut
Right Miter right 45°
side Save right side of cut
Material up to 3.5" (89 mm) can be cut as described above.

Cutting Crown Molding

In order to fit properly, crown molding must be compound
mitered with extreme accuracy.
The two flat surfaces on a given piece of crown molding
are at angles that, when added together, equal exactly 90°.
Most, but not all, crown molding has a top rear angle (the
section that fits flat against the ceiling) of 52° and a bottom
rear angle (the part that fits flat against the wall) of 38°.
Your miter saw has special pre-set miter detent points at
31.6° left and right for cutting crown molding at the proper
angle. There is also a mark on the bevel scale at 33.8°.
The Bevel Setting/Type of Cut chart gives the proper
settings for cutting crown molding. (The numbers for the
miter and bevel settings are very precise and are not easy
to accurately set on your saw.) Since most rooms do not
have angles of precisely 90°, you will have to fine tune your
settings anyway.
PRETESTING WITH SCRAP MATERIAL IS EX TREME LY
IMPORTANT!
18
Instructions for Cutting Crown Molding

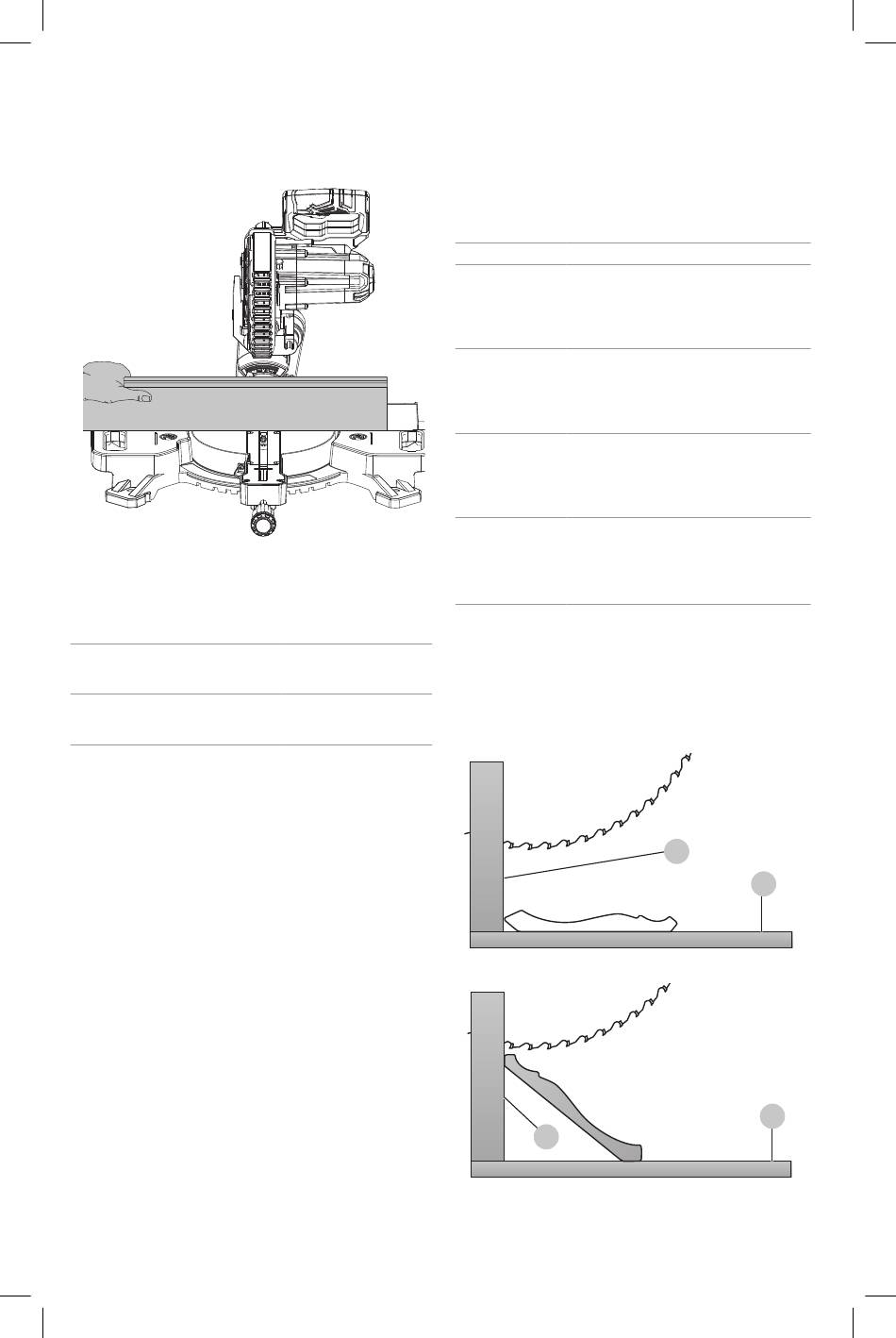

Laying Flat and Using the Compound
Features
1. Lay the molding with broad back surface down flat on
saw table (Fig. U).
2. The settings below are for all Standard (U.S.) crown
molding with 52° and 38° angles.
BEVEl sETTing
Outside corner
nOTE: When setting bevel and miter angles for all
compound miters, remember that the angles presented for
Miter right 45°
crown moldings are very precise and difficult to set exactly.
Save left side of cut
Since they can easily shift slightly and very few rooms have
exactly square corners, all settings should be tested on
Miter left 45°
scrap molding.
Save right side of cut
Fig. U
Fig. V
PRETESTING WITH SCRAP MATERIAL IS EXTREMELY
TYPE OF CUT
lEFT siDE, insiDE CORnER:
Top of molding against fence
33.8°
Miter table set right 31.62°
Save left end of cut
RighT siDE, insiDE CORnER:
Bottom of molding against fence
33.8°
Miter table set left 31.62°
Save left end of cut
lEFT siDE, OUTsiDE CORnER:
Bottom of molding against fence
33.8°
Miter table set left 31.62°
Save right end of cut
RighT siDE, OUTsiDE CORnER:
Top of molding against fence
33.8°
Miter table set right 31.62°
Save right end of cut
