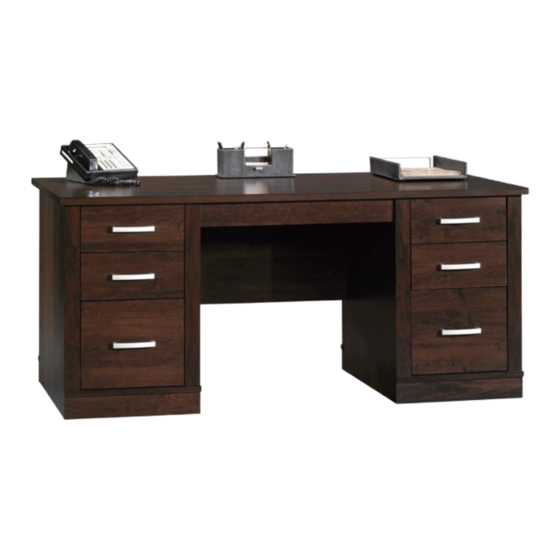

Escritorio ejecutivo
Ocultar thumbs
Tabla de contenido

Publicidad

Enlaces rápidos

Descargar este manual
sauder.com
Executive Desk
Offi ce Port Collection | Model 408289
Need help? Visit Sauder.com to view video assembly tips or chat with a live rep.
Prefer the phone? Call 1-800-523-3987.
Share your journey!
Business or pleasure.
Works both ways.
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-28
Français pg 29-32
Español pg 33-36
Lot # 516472
06/08/18
Purchased: __________________
Be sure to give us a ring before
making any returns. 1-800-523-3987
