Connection example

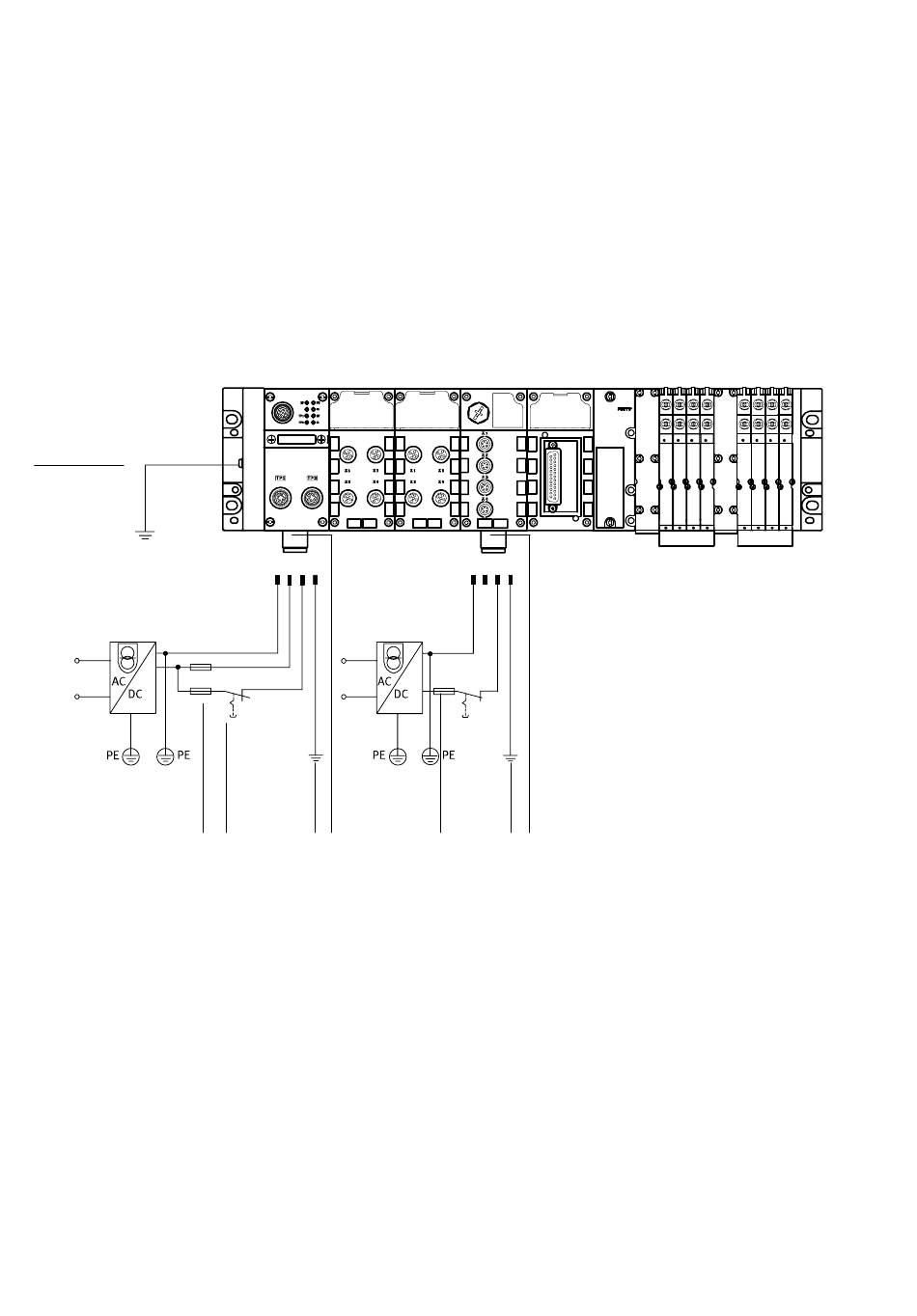

The following figure shows an example of the connection
when a system supply and additional power supply (with
M 18 plug each) are used for electrical outputs.
1
2
1
Equipotential bonding
2
External fuses
3
Load supply of valves/outputs can
be switched off separately
4
Earth connection on pin 4
(M18 plug), rated for 16 A
28
M18
3 4 5 2
M18
4 6
5
System supply terminal
type CPX−GE−EV−S
(M18)
6
Additional power
supply terminal for type
CPX−GE−EV−Z (M18)
electrical outputs
