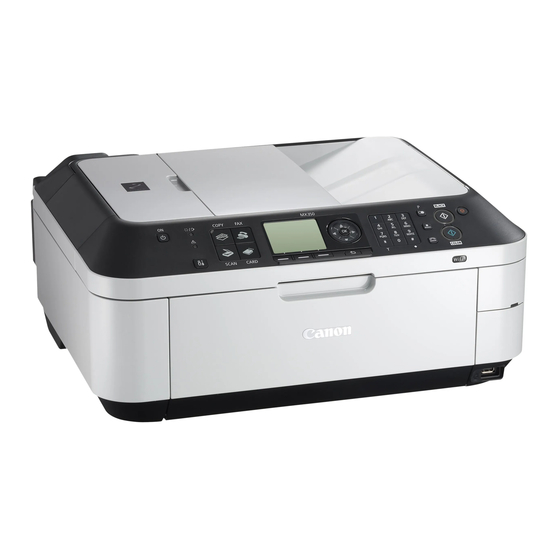

Resumen de contenidos para Canon PIXMA MX350 Serie
Página 1
ENGLISH ESPAÑOL Office All-In-One Equipo multifunción de oficina series Getting Started Read Me First Guía de inicio Léame en primer lugar Make sure to read this manual before using the machine. Please keep it in hand for future reference. Asegúrese de leer este manual antes de usar el equipo. Consérvelo a mano para utilizarlo como referencia en el futuro.
Página 2
■ Symbols Used in This Document ■ Símbolos utilizados en este documento Prohibited actions. Acciones prohibidas. Instructions including important information. Instrucciones que incluyen información importante. Informational notes. Notas informativas. Operations that take some time to complete. Operaciones que tardan cierto tiempo en completarse. Indicates operations in Windows.
Página 3
On-screen manuals can be viewed on a computer. They are included on the Setup CD-ROM and are installed during the software installation. For some languages parts of the manual may be displayed in English. For details on opening the on-screen manuals, refer to page 75. Los manuales en pantalla se pueden ver en un ordenador.
Página 4
■ Contents ■ Contenido 1 Check the Included Items P.5 1 Comprobación de los elementos incluidos P.5 2 Remove the Protective Material P.6 2 Retirada del material protector P.6 3 Connect the Telephone Line P.9 3 Conexión de la línea telefónica P.9 4 Turn the Power On P.11 4 Encendido del equipo P.11 5 Install the FINE Cartridges P.14...
Página 5
■ Machine Installation Flow Network Connection Conexión de red USB Connection ■ Flujo de instalación Conexión USB Wireless Connection Wired Connection Using from Additional del equipo Computers Conexión inalámbrica Conexión por cable (when the machine is already connected to the network and you want to add computers from which to use the machine)
Página 6
■ Devices Required for Wireless/Wired Connection ■ Dispositivos necesarios para la conexión inalámbrica/por cable When using the machine over a wireless/wired connection, the following devices are required depending on the connection method. Cuando el equipo se utilice mediante una conexión inalámbrica/por cable, se necesitarán los dispositivos siguientes en función del método de conexión. Wireless Connection Wired Connection Conexión inalámbrica...
Página 7
Check that all the items shown below are included in the box. Compruebe que todos los elementos que se citan a continuación están incluidos en la caja. Telephone line cable Power cord Color Black FINE cartridges Color Negro Cable de línea telefónica Cable de alimentación Cartuchos FINE (FINE Cartridges) Setup CD-ROM (containing the drivers,...
Página 8
Remove all the protective materials and orange tape from the outside of the machine. Open the Paper Output Tray (A). • The tape and protective materials may differ in shape and position from what they actually are. Retire la cinta naranja y todos los materiales protectores del exterior del equipo. Abra la bandeja de salida del papel (A).
Página 9
Lift the Scanning Unit (Cover) (B) and fix it with the Scanning Unit Support (C). Remove the orange tape (E) carefully. The protective material (F) is removed along with the orange tape. Close the Document Cover (D) and lift it with the Scanning Unit (Cover). Levante la unidad de escaneado (cubierta) (B) y sujétela con el soporte de la unidad Retire la cinta naranja (E) con cuidado.
Página 10
Lift the Scanning Unit (Cover) slightly (1) and fold the Scanning Unit Support (2), then gently close the Scanning Unit (Cover) (3). Levante la unidad de escaneado (cubierta) ligeramente (1) y pliegue el soporte de la unidad de escaneado (2) para cerrar después la unidad de escaneado (cubierta) (3) con cuidado.
Página 11
Do not turn the power on yet. No encienda aún el equipo. To use the machine as a fax, a telephone line needs to be connected. This section describes the basic method of telephone line connection. For other connection methods, refer to the on-screen manual: Basic Guide. When not using as a fax: Go to "4 Turn the Power On"...
Página 12
Only when connecting a telephone: Sólo al conectar un teléfono: Connect one end of supplied telephone line cable (A) to the lower connector labeled Remove the Cap (C) (1), then connect a telephone with the telephone line cable "L" on the machine, and then connect the other end to the telephone jack on the (2).
Página 13
Insert the power cord into the connector on the left side of the machine and into the wall outlet. • Do NOT connect the USB cable or Ethernet cable at this stage. • Make sure that the Document Cover (A) is closed. •...
Página 14
Press the ON button (B) to turn on Use the { or } button (C) on the Operation Panel to select Make sure that the above screen is displayed and go the machine. the language for the LCD (Liquid Crystal Display) (D), then press to the next step.
Página 15
When it is necessary to power off the machine Cuando sea necesario apagar el equipo Be sure to follow the procedure below. • When removing the power plug, make sure that all the lamps on the Operation Panel are not lit before removing the plug.
Página 16
Lift the Scanning Unit (Cover) (A) and fix • Do not touch the buttons or LCD (F) on the Operation Panel (G). May result in unintended operation. it with the Scanning Unit Support (D). • When opening the Scanning Unit (Cover), the FINE Cartridge Holder moves automatically. •...
Página 17
Make sure that the FINE Cartridge Follow the next procedure to insert the Black Open the Ink Cartridge Locking Cover on the right side. Holder (H) moves to the installation Color FINE Cartridges into their corresponding position. slots Pinch (I) firmly and pull up the cover. Asegúrese de que el soporte de Siga el procedimiento que se indica a continuación Abra la tapa de bloqueo del cartucho de tinta...
Página 18
Remove the Black FINE Cartridge from its package. Pull the orange protective tape (J) in the direction of the arrow and remove it carefully. • Handle the FINE Cartridges carefully. Do not drop or apply excessive pressure to them. • Be sure to use the supplied FINE Cartridges.
Página 19
Place the Black FINE Cartridge into the right slot Push down of the Ink Cartridge Locking Cover until you hear a click to close it completely. View the Ink Cartridge Locking Cover straight on and check that it is locked correctly (not at an angle). •...
Página 20
Insert the Color FINE Lift the Scanning Unit (Cover) slightly (1) and fold Make sure that the LCD changes • Once you have installed the FINE Cartridge into the left the Scanning Unit Support (2), then gently close as shown in the illustration and go Cartridges, do not remove them unnecessarily.
Página 21
Open the Paper Support (A). Move the Paper Guides (B) to both edges. Abra el soporte del papel (A). Desplace las guías del papel (B) hasta ambos bordes.
Página 22
Load paper in the center of the Rear Tray (C). Slide the left and right Paper Guides against both edges of the paper. Load paper in portrait orientation with the printing side facing up. Make sure that the height of the paper stack does not exceed the line (D). •...
Página 23
Read this section only when using The following four modes are available for receiving faxes. Select a receive mode the machine as a fax. according to your needs. You can change the receive mode any time. Refer to the on-screen manual: Basic Guide. If not using the machine as a fax, go to "8 Select Connection Method"...
Página 24
Intended Use Receive Mode Uso previsto Modo de recepción Want to use a telephone line for voice calls and faxes. • • Want to prioritize voice call reception over fax call reception because there are more opportunities to receive TEL priority mode voice calls.
Página 25
Responses to Calls in Each Mode Respuestas a llamadas en cada modo When a fax call arrives: When a voice call arrives: Si recibe una llamada de fax: Si recibe una llamada de voz: While the telephone's ringtone sounds, pick up the While the telephone's ringtone sounds, pick up the handset.
Página 26
Press the FAX button (A). Press the FUNCTION button (B), then select a receive mode using the { or } Press the OK button. button (C). The fax standby screen is displayed. The fax standby screen returns. Pulse el botón FAX (A). Pulse el botón FUNCIÓN (FUNCTION) (B) y seleccione después un modo Pulse el botón OK.
Página 27
Intended Use Connection Method Device Required Uso previsto Método de conexión Dispositivo necesario Go to "9 Install the Software • Want to connect to a computer with (USB Connection)" on page 27. a USB cable. USB Connection • Si desea conectarlo a un ordenador con un Conexión USB Vaya a “9 Instalación del software USB cable...
Página 28
What is Network? If it is uncertain whether your device (access point, router, etc.) supports wireless connection or wired connection, refer to the manual supplied with the device, or contact its manufacturer. A system to exchange information between computers by connecting them to each other with cables or via wireless communication.
Página 29
Do not connect the USB cable yet. □ For Spanish Users in the U.S.A.: □ Para los usuarios de habla No conecte aún el cable USB. hispana de EE UU: • To use the machine by connecting it to a computer, software including the drivers needs to be copied (installed) to the computer's hard disk.
Página 30
□ If you connect the machine via USB cable before installing the software: □ Easy-WebPrint EX □ Si se conecta el equipo mediante un cable USB antes de instalar el software: □ Easy-WebPrint EX For Windows 7 If you are using Internet Explorer 7 or later, you can use the Web print software Easy-WebPrint EX.
Página 31
Press the ON button (A) to TURN OFF THE MACHINE. Turn on the computer, then insert the Setup CD-ROM into the CD-ROM drive. If you are using Windows, the setup program starts automatically. Operating noise may continue for up to 30 seconds until the For Windows machine turns off.
Página 32
Windows 7/Windows Vista Click Run Msetup4.exe on the AutoPlay screen, then click Continue or Yes on the User Account Control dialog box. Windows XP/Windows 2000 If the User Account Control dialog box reappears in following steps, click Continue or Yes. Haga clic en Ejecutar Msetup4.exe (Run Msetup4.exe) en la pantalla Reproducción automática (AutoPlay) y, a continuación, haga clic en Continuar (Continue) o en Sí...
Página 33
Click Easy Install. Click Install. The drivers, application software, and on-screen manuals are installed all together. For Windows • To install Easy-WebPrint EX, you need to connect your computer to the internet at this stage. • If you want to select particular items to install, click Custom Install. (Internet Explorer 7 or later is required.) If an internet connection is not available, it is also possible to install this software later.
Página 34
□ USB Port □ Puerto USB Select Use the printer via USB, then click Next. When the Printer Connection screen appears, connect the machine to the computer with the USB cable. Follow any on-screen instructions to proceed with the software installation. After connecting the cable, TURN ON THE MACHINE.
Página 35
□ Necessary Information for the User Registration □ If the Extended Survey Program screen appears □ Información necesaria para el registro de usuario □ Si aparece la pantalla Extended Survey Program (User Registration) Serial No. * * * * * * * * * The product serial number is If you can agree to Extended Survey Program, click Agree.
Página 36
Click Exit to complete the installation. For Windows: For Macintosh: Solution Menu starts Click the icon on the Congratulations! Setup is complete. If Restart is displayed, follow the instruction to restart the computer. automatically. Dock to start Solution Proceed to page 75 for information Menu.
Página 37
Before connecting the machine to the network, the computer needs to be connected to the network. Make sure that configuration of the computer and access point or router is complete. Access point or wireless router, etc. Punto de acceso o router inalámbrico, etc.
Página 38
■ Notes on Wireless Connection ■ Notas acerca de la conexión inalámbrica • The configuration, router functions, setup procedures and security settings of the network device vary depending on your system environment. For details, refer to your device's instruction manual or contact its manufacturer. •...
Página 39
Contraseña que se debe establecer para evitar el acceso no autorizado a las comunicaciones. You can retrieve your network key by using the Canon PIXMA Wireless Setup Assistant or the instructions which can be downloaded from the Canon support webpage (www.usa.canon.com/downloadlibrary).
Página 40
If you choose one of these connection methods, skip the "Easy Setup" section and proceed the desired section (WPS or WCN). Si elige uno de estos métodos, omita la sección “Configuración fácil (Easy Setup)” y continúe con la sección deseada (WPS o WCN). □...
Página 41
Press the Setup button (A). Use the [ or ] button (B) to select Wireless LAN Use the { or } button (C) to select Yes, then press setup, then press the OK button. the OK button. The Setup menu screen is displayed. When wireless connection is enabled, the Wi-Fi lamp (D) lights blue.
Página 42
Select Easy setup, then Select the access point name you wrote When one of the above screens is displayed, enter • Enter upper and lower case letters of press the OK button. down on page 37, then press the OK the network key you wrote down on page 37 using the the alphabet correctly.
Página 43
Make sure that the When the above screen appears, press the OK button. Press the COPY button (F). network key is correct, The copy standby screen is displayed. then press the OK The Setup menu screen returns. button. Next, read "12 Install the Software (Network •...
Página 44
Read this section only when setting up a wireless connection by using the WPS (Wi-Fi Protected Setup). If not using WPS, the following procedure is not necessary. Press the Setup button (A). The Setup menu screen is displayed. Lea esta sección sólo si utiliza una conexión inalámbrica mediante WPS (Wi-Fi Protected Setup).
Página 45
Use the [ or ] button (B) to select Wireless LAN Use the { or } button (C) to select Yes, then press the OK button. Select Other setup, then press the OK setup, then press the OK button. button. When wireless connection is enabled, the Wi-Fi lamp (D) lights blue.
Página 46
Select WPS, then press Select Push button method, then press the OK button. Press the OK button. the OK button. • To use the PIN code method for setup, select PIN code method in , then press the OK button. Follow the on-screen instructions to operate the machine and access appears, press the OK button.
Página 47
Press and hold the WPS button on the access point (for about 5 seconds), When the above screen appears, press the OK button. then press the OK button on the machine within 2 minutes. The Setup menu screen returns. For details on the WPS button pressing, refer to the manual of your access point. •...
Página 48
Press the COPY button (E). The copy standby screen is displayed. Next, read "12 Install the Software (Network Connection)" on page 59! Pulse el botón COPIA (COPY) (E). Aparecerá la pantalla de copia en espera. A continuación, lea “12 Instalación del software (Conexión de red)” en la página 59.
Página 49
Antes de configurarla mediante la función WCN, establezca una comunicación inalámbrica entre el ordenador y el punto de acceso. • Canon no asume ninguna responsabilidad en el caso de que se pierdan o dañen los datos almacenados en la unidad flash USB, con independencia del motivo, incluso dentro del periodo de garantía.
Página 50
Windows Vista Windows 7 (P.50) From the Start menu of the Windows Click Add a wireless device on the Click I want to add a wireless device Click Add the device or computer side, click Network. menu. or computer that is not on the list, using a USB flash drive.
Página 51
From the list, select the network name (SSID), then Connect the USB flash drive to the computer, make When the above screen appears, remove the USB click Next. sure that the drive name is displayed, then click Next. flash drive from the computer, then click Close. •...
Página 52
Windows 7 Click Start > Control Panel > View Select the network name (SSID) from Select Copy this network profile to a When the above screen appears, network status and tasks > Manage the list and right-click it, then select USB flash drive.
Página 53
Press the Setup button (A). Use the [ or ] button (B) to select Wireless LAN Use the { or } button (C) to select Yes, then press setup, then press the OK button. the OK button. The Setup menu screen is displayed. When wireless connection is enabled, the Wi-Fi lamp (D) lights blue.
Página 54
Select Other setup, then press the OK Select WCN, then press the OK button. Connect the USB flash drive to the Direct Print Port (USB connector) (E) on the button. front of the machine, then press the OK button. Seleccione Otra configuración Seleccione WCN y, a continuación, Conecte la unidad flash USB al puerto de impresión directa (conector USB) (E) en (Other setup) y, a continuación, pulse...
Página 55
When the above screen appears, press the OK Press the COPY button (F). button, then remove the USB flash drive from the The copy standby screen is displayed. machine. Next, read "12 Install the Software (Network Connection)" on page 59! The Setup menu screen returns.
Página 56
Before connecting the machine to the network, the computer needs to be connected to the network. Make sure that configuration of the computer and router is complete. Antes de conectar el equipo a la red, se debe conectar el ordenador a la red. Asegúrese de que haya finalizado la configuración del ordenador y del router.
Página 57
■ Notes on Wired Connection ■ Notas acerca de la conexión por cable • The configuration, router functions, setup procedures and security settings of the network device vary depending on your system environment. For details, refer to your device's instruction manual or contact its manufacturer. •...
Página 58
Remove the Cap (A), then connect a network device (router, etc.) with an Ethernet cable (B). Press the Setup button (C). The Setup menu screen is displayed. Retire la tapa (A); a continuación, conéctese a un dispositivo de red (router, etc.) con un cable Pulse el botón Configuración (Setup) (C).
Página 59
Use the [ or ] button (D) to select Device settings, then press the OK button. Use the { or } button (E) to select LAN Select Change wireless/wired, then settings, then press the OK button. press the OK button. Utilice el botón [ o ] (D) para seleccionar Configuración de dispositivo Utilice el botón { o } (E) para Seleccione Cambiar inalám./...
Página 60
Select Wired LAN active, press the OK button. Press the COPY button (F). The copy standby screen is displayed. The LAN settings screen returns. Next, read "12 Install the Software (Network Connection)" on page 59! Seleccione LAN cableada activa (Wired LAN active) Pulse el botón COPIA (COPY) (F).
Página 61
Si tiene activada la función de cortafuegos en el software de seguridad, puede aparecer un mensaje indicando que el software de Canon está intentando acceder a la red. En tal caso, configure el software de seguridad para que permita siempre el acceso.
Página 62
□ Easy-WebPrint EX If you are using Internet Explorer 7 or later, you can use the Web print software Easy-WebPrint EX. An internet connection is required for installation. Turn on the computer, then insert the Setup CD-ROM into the CD-ROM drive. If you are using Windows, the setup program starts automatically.
Página 63
Windows 7/Windows Vista Click Run Msetup4.exe on the AutoPlay screen, then click Continue or Yes on the User Account Control dialog box. Windows XP/Windows 2000 If the User Account Control dialog box reappears in following steps, click Continue or Yes. Haga clic en Ejecutar Msetup4.exe (Run Msetup4.exe) en la pantalla Reproducción automática (AutoPlay) y, a continuación, haga clic en Continuar (Continue) o en Sí...
Página 64
Click Easy Install. Click Install. The drivers, application software, and on-screen manuals are installed all together. For Windows • To install Easy-WebPrint EX, you need to connect your computer to the internet at this stage. • If you want to select particular items to install, click Custom Install. (Internet Explorer 7 or later is required.) If an internet connection is not available, it is also possible to install this software later.
Página 65
Select Use the printer on network, then click Next. When the Printer Detection screen appears, click Next. • If the Printer Connection screen appears instead of the screen above, the connection method is not correctly Follow any on-screen instructions to proceed with the software installation. selected in −...
Página 66
When the Detected Printers List dialog box appears, select Canon MX350 series, then click Next. When the Setup Completion dialog box appears, click Complete. • If the machine is not detected, Check Printer Settings dialog box is displayed. Refer to the printed manual: Network Setup Troubleshooting.
Página 67
This section describes how to register the machine on a Macintosh computer. Windows users: read “Install the Software (Information)” on page 69. When the Register Printer and Scanner screen appears, click Register Printer. En esta sección se describe cómo registrar el equipo en un ordenador Macintosh.
Página 68
Go to on page 67. • The alphanumeric characters after Canon MX350 series is the machine’s Bonjour service name or MAC address. • If the machine has not been detected, make sure of the following. − The machine is turned on.
Página 69
Mac OS X v.10.4.11 When the Printer List window Click More Printers in the Printer Select Canon IJ Network in the pop-up Make sure that Canon MX350 series appears, click Add. Browser window. menu, select Canon MX350 series in is added to the list of printers.
Página 70
When the Register Printer and Scanner screen Select Canon MX350 series on the Click Next on the Register Printer and Scanner appears, click Register Scanner. Scan-from-PC Settings screen, then screen. click OK. Next, read “Install the Software (Information)” on page 69!
Página 71
Click Next. Follow any on-screen instructions to proceed with the software installation. Haga clic en Siguiente (Next). Siga cualquier instrucción en pantalla para llevar a cabo la instalación del software.
Página 72
□ Necessary Information for the User Registration □ If the Extended Survey Program screen appears □ Información necesaria para el registro de usuario (User Registration) □ Si aparece la pantalla Extended Survey Program Serial No. * * * * * * * * * The product serial If you can agree to Extended Survey Program, click Agree.
Página 73
Click Exit to complete the installation. For Windows: For Macintosh: Solution Menu starts Click the icon on the Congratulations! Setup is complete. If Restart is displayed, follow the instruction to restart the computer. automatically. Dock to start Solution Proceed to page 75 for information Menu.
Página 74
Using the Machine from Additional Computers Now that the wireless/wired connection of the machine is complete, it can be used from additional computers on the same network. Install software including the drivers on the computer from which you want to use the machine. Other settings are not required. For the software installation procedure, refer to “12 Install the Software (Network Connection)”...
Página 75
If the machine is already connected to a wireless /wired connection, it can be used from additional computers on the same network. Si el equipo ya está conectado a una conexión inalámbrica/por cable, se puede utilizar desde otros ordenadores de la misma red. To use from additional computers Computer from which the machine can be used currently Insert the Setup CD-ROM into the computer from which...
Página 76
Use the Operation Panel on the machine to print your own items easily. Various application software are installed on the computer along with the drivers. You can print creative items by correcting/ enhancing photos using the application software. For details on how to use the application software and the machine, refer to the on-screen manual. Utilice el panel de control del equipo para imprimir fácilmente sus propios elementos.
Página 77
Solution Menu Solution Menu is a gateway to functions and information that allow you to make full use of the machine! For example, How to open the on-screen manual How to start Solution Menu Click this icon on the desktop (Windows) or on Click this button to open the on-screen manual.
Página 78
Load A4 or Letter-sized plain paper. Open the Document Cover (B). Make sure that the Paper Output Tray (A) is open. This section describes how to perform a standard copy. • For details, refer to "6 Load Paper" on page 19. •...
Página 79
Place the document face-down and align it with the Close the Document Cover, press the COPY • Hold the Document Cover firmly when closing it because it is heavy. Alignment Mark (C). button (E), then press the Black button (F) or •...
Página 80
Load 4" x 6" size photo paper in portrait orientation with the Start Solution Menu from the Canon Solution Menu icon on the desktop printing side facing up. (Windows) or on the Dock (Macintosh), then click One-Click to Photo Print.
Página 81
Select the image you want to print, then click Layout/Print. Click Print. If you are using Windows, printing will start. If you are using Macintosh, click Print on the Print dialog box to start printing. When a photo is selected, the number of copies is set to "1". For more information, refer to the on-screen manual: Advanced Guide.
Página 82
Press the FAX button (A). The fax standby screen is displayed. This section explains how to send a fax in black and white from the ADF (Auto Document Feeder) (B). • Make sure that the telephone line type is set correctly. For the setting procedure, refer to "Preparing for Faxing" in the on-screen manual: Basic Guide. •...
Página 83
Open the Document Tray (C), then move the Document Guides (D) to both edges. Insert the document until a beep sounds, then slide the left and right Document Guides against both ends of the document. • For details on supported documents and settings for image quality, density (brightness), etc., refer to the on-screen manual: Basic Guide.
Página 84
Use the Numeric buttons (E) to enter Press the Black button (F). the fax number. The fax is sent. When the machine is ready for faxing, the Black button and Color button light up. For other procedures to send faxes, refer to "Faxing" in the on-screen manual: Basic Guide.
Página 85
After a period of use, the inside of the machine may become stained with ink. To avoid staining your hands or clothes with ink, it is recommended that you clean the Ink Cartridge Locking Cover (A) and the inside of the tray (B) with a facial tissue or the like as required. If the Scanning Unit (Cover) is left open for more than 10 minutes, the FINE Cartridge Holder moves to the right automatically.
Página 86
(Based on ITU-T No.1 chart for US specifications and Canon FAX Standard *5 Setup possible through Easy setup, WPS (Wi-Fi Protected Setup) or WCN chart No.1 for others, both in standard mode or Canon FAX Standard chart (Windows Connect Now).
Página 87
Macintosh: Hard Disk must be formatted as Mac OS Extended (Journaled) or Mac OS Extended. • Macintosh: After upgrading from Mac OS X v.10.5 or lower to Mac OS X v.10.6, install software bundled with the Canon inkjet printer. •...
Página 88
(Basado en el cuadro n.º 1 de ITU-T para especificaciones de EE UU y en el Apagado: 0,8 W* aprox. cuadro n.º 1 del estándar de FAX de Canon para el resto, ambos en modo * Conexión USB a PC estándar).
Página 89
Windows: sólo se garantiza el funcionamiento en un PC con Windows 7, Windows Vista, Windows XP o Windows 2000 preinstalado. • Windows: desinstale primero el software incluido con la impresora de inyección de tinta Canon antes de actualizar de Windows Vista a Windows 7 y, a continuación, vuelva a instalar el software. •...
Página 90
2975B001 PG-210 2974B001 CL-211 2976B001 N.º de referencia PG-210XL 2973B001 Call 1-800-OK-CANON to locate a dealer near you, or visit the Canon CL-211XL 2975B001 online store at www.shop.usa.canon.com PG-210 2974B001 CL-211 2976B001 Llame a 1-800-OK-CANON para localizar un distribuidor cercano o visite la tienda en línea de Canon en www.shop.usa.canon.com...
