Connecting

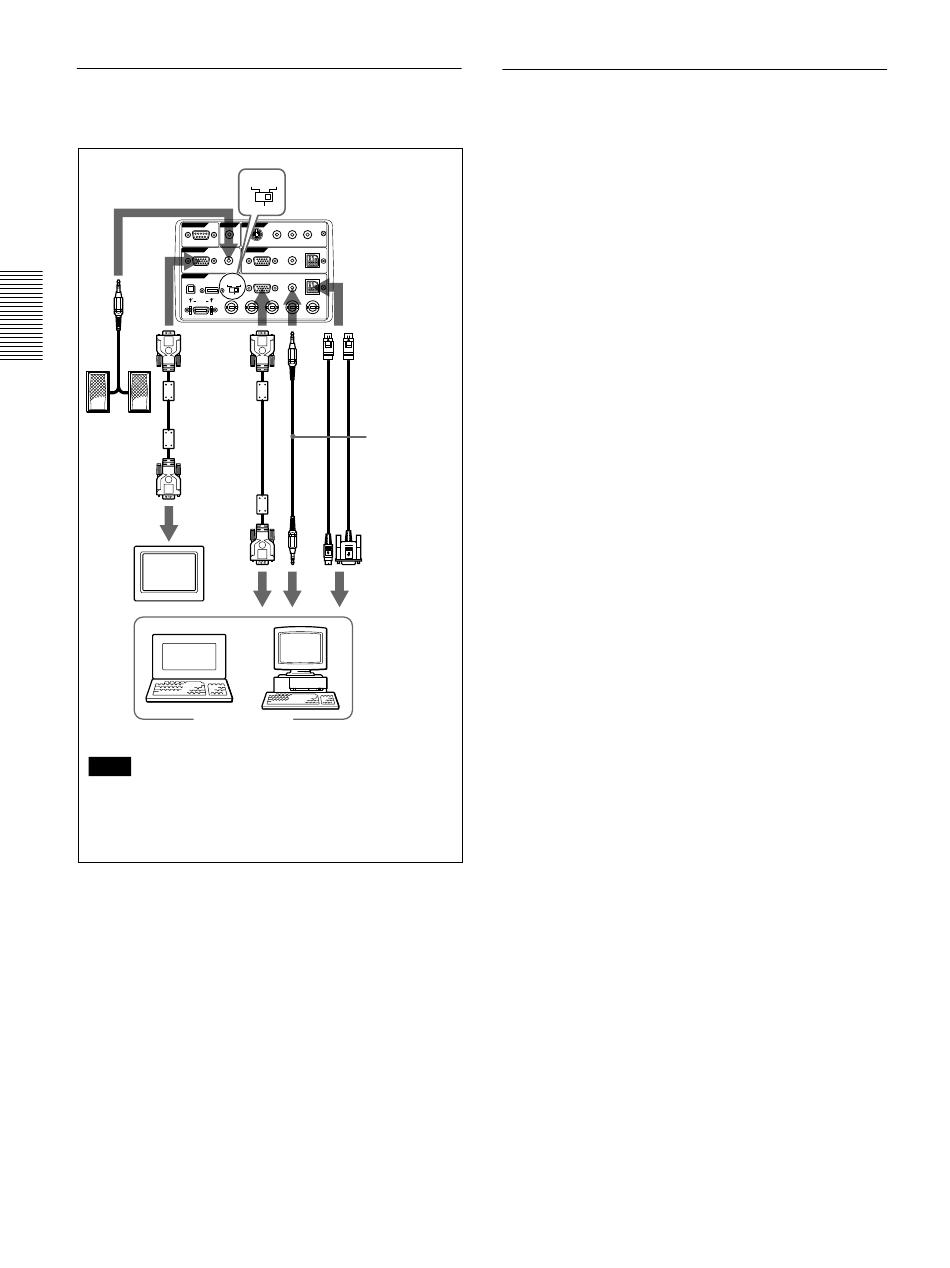

When connecting with an IBM PC/AT
compatible computer
DIGITAL
RGB
Right side
REMOTE CONTROL S VIDEO IN
IN
RS-232C S VIDEO
PLUG IN POWER
OUTPUT INPUT B
MONITOR AUDIO
INPUT A
DIGITAL
RGB RGB
5BNC
USB
DIGITAL RGB R/R-Y/P G/Y
R
HD D-sub
15-pin
cable
Speaker
(supplied)
Monitor
cable
SMF-410
(not
supplied)
to
monitor
Monitor out
Computer
Note
Set the DIGITAL RGB/5BNC/RGB switch to RGB
(right) when you connect the computer to the
INPUT A connector.
.........................................................................................................................................................................................................
1) Macintosh is a registered trademark of Apple Computer, Inc.
16
(GB)
RGB
5BNC
L R
(MONO)
VIDEO AUDIO
to INPUT A
RGB AUDIO MOUSE
or INPUT B
RGB AUDIO MOUSE
B/B-Y/P SYNC/HD VD
B
Mouse cable
SIC-S21
(for serial)(not
supplied)/
S22 (for PS/2)
(supplied)
Stereo audio
connecting
cable (not
supplied)*
* Use a no-resistance
connecting cable.
to
to serial
audio
port or
out
to mouse
port
When connecting with a Macintosh
computer
To connect a Macintosh computer equipped with
video output connector of a type having two rows of
pins, use a commercially available plug adaptor. In
this case, however, you can not control the mouse of
the computer by the Remote Commander.
1)
