Press the Up/Down-buttons for setting the desired starting address. Now you can start operating the LIS-69
via your lighting controller.
Note:

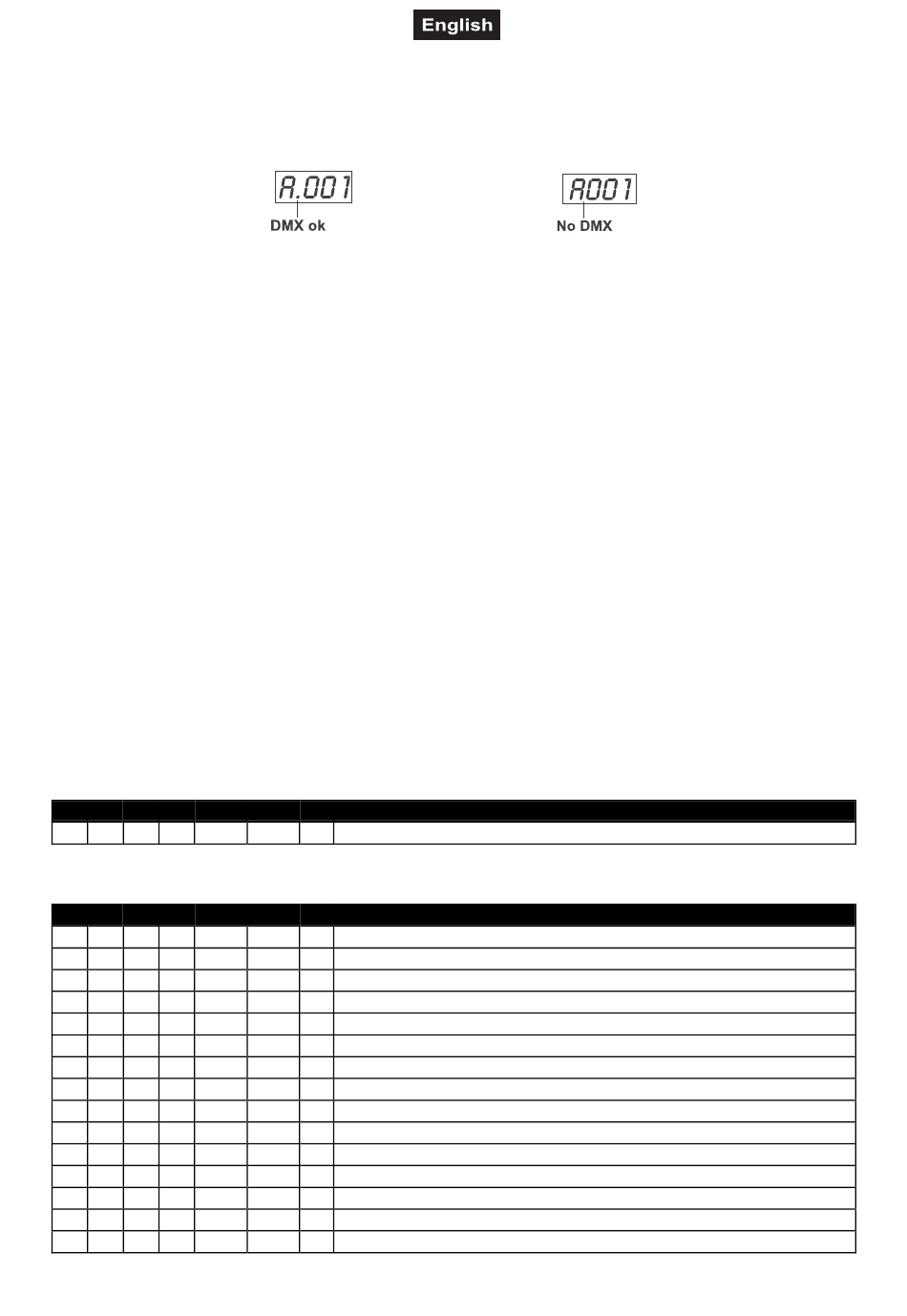

The modes of DMX 512 data are shown via the display:
After switching on, the device will automatically detect whether DMX 512 data is received or not. If the data
is received, the the display will show "A.001" with the actually set address. If there is no data received at the
DMX-input, the display will flash "A001" with the actually set address.
This situation can occur if:
- the 3 PIN XLR plug (cable with DMX signal from controller) is not connected with the input of the device.
- the controller is switched off or defective, if the cable or connector is defective or the signal wires are swap
in the input connector.
Note:
It's necessary to insert the XLR termination plug (with 120 Ohm) in the last device in the link in order to
ensure proper transmission on the DMX data link.

DMX-protocol

Control-channel 1 - Horizontal movement (Pan)
Push slider up in order to move the head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be stopped at any position you wish.
Control-channel 2 - Vertical movement (Tilt)
Push slider up in order to move the head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be stopped at any position you wish.
Control-channel 3 - Pan/Tilt-speed
Decimal Hexad. Percentage S/F
0 255 00 FF 0% 100%
Control-channel 4 - LED patterns
Decimal Hexad. Percentage S/F
0 10 00 0A 0% 4%
11 20 0B 14 4% 8%
21 30 15 1E 8% 12%
31 40 1F 28 12% 16%
41 50 29 32 16% 20%
51 60 33 3C 20% 24%
61 70 3D 46 24% 27%
71 80 47 50 28% 31%
81 90 51 5A 32% 35%
91 100 5B 64 36% 39%
101 110 65 6E 40% 43%
111 120 6F 78 44% 47%
121 130 79 82 47% 51%
131 140 83 8C 51% 55%
141 150 8D 96 55% 59%
F Decreasing speed
S Blackout
S Open
S Auto program 1 (RGB pattern 1)
S Auto program 2 (RGB pattern 2)
S Auto program 3 (RGB pattern 3)
S Auto program 4 (RGB pattern 4)
S Auto program 5 (RGB pattern 5)
S Auto program 6 (RGB pattern 6)
S Auto program 7 (RGB pattern 7)
S Auto program 8 (RGB pattern 8)
S Auto program 9 (RGB pattern 9)
S Auto program 10 (RGB pattern 10)
S Auto program 11 (RGB pattern 11)
S Auto program 12 (RGB pattern 12)
S Auto program 13 (RGB pattern 13)
35/87
