BEFORE INSTALLING:
1. All installations should comply with National and local electrical codes. If
you have any doubts concerning installation contact a qualified, licensed
electrician.
2. This fixture can only be used with Kichler Cabinet Lighting fixtures and
accessories.
3. This fixture must be installed using interconnect cables 10571 (9"), 10572 (14"),
10573 (21"), connected to wire module 10570 or existing Kichler Cabinet
Lighting fixture and can also be installed by directly connecting to another
Kichler Cabinet Lighting fixture.
4. Mounting surface should be a minimum of ½" thick.
5. When using interconnect cables or connecting fixture to fixture, fixtures can
have a maximum of 3 units in a single run.
Model
Voltage
Number
4U_ _K08_ _ _
120V
4U_ _K12_ _ _
120V
4U_ _K22_ _ _ 120V
4U_ _K30_ _ _
120V
INSTALLATION INSTRUCTIONS USING LINE CONNECTION
1. Turn off power.
2. Open wiring compartment by inserting flathead screwdriver into the slots and
wedging cover open. (ref. FIG. 1)
3. Remove knock-out that allows for easiest access to conduit. Knock-out
should be removed by inserting flat-headed screwdriver into the knock-out
slot and rocking up and down until knock-out releases. (ref. FIG. 2)
4. Install conduit connector in knock-out hole on fixture housing.
5. Run wire through installed conduit connector ensuring that at least 3" of wire
extend into the wiring compartment. The provided conduit connector may
only be used with the following:
• 14/2 to 10/2 steel armored cable;
• 3/8" trade sized reduced wall flexible steel or aluminum conduit;
or
• 14/2 to 10/2 non-metallic sheathed cable
6. Tighten screws on conduit connector to clamp wire into place.
7. Hold the fixture in the desired mounting location and drive mounting screws
into cabinet surface until fixture is secure. If screws are difficult to install,
mark holes and drill 1/16" maximum pilot holes. (ref. FIG. 3)
8. Make grounding connection (connector provided).
9. Make wire connections (connectors provided).
Connect Black or
Red Supply Wire to:
Black
*Parallel cord (round & smooth)
Clear, Brown, Gold or Black
without tracer
Insulated wire (other than green)
with copper conductor
*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)
10. Swing the cover towards the fixture and close it by pressing at the ends of
the cover until the cover snaps into place and is flush with the fixture.
CAUTION: Ensure that the wires are not pinched or damaged by any part of
the metal housing or clips.
NOTE: See Step 2 to re-access wiring compartment.
11. Place connector cover over any connector not being used. (ref. FIG. 4)
12. Turn on power.
See Page 2 for:
• Installation Instructions using Plug-In Cord
• Installation Instructions using Interconnect Cable
• Installation Instructions for Fixture to Fixture
• Installation Instructions for Replacing Power Supply
Date Issued: 12/11/15

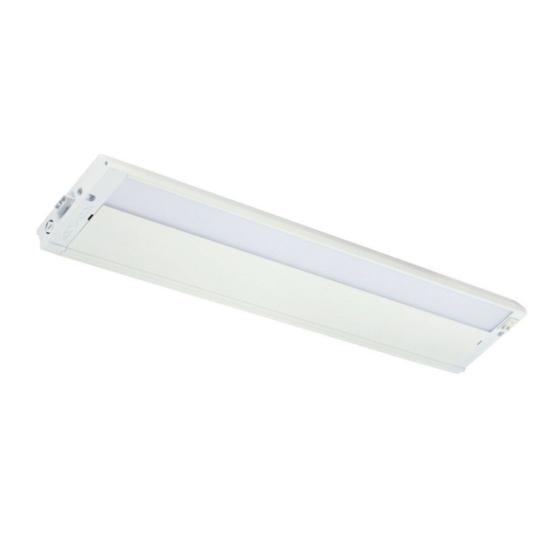

Kichler® LED Under-Cabinet
Power Supply
Wattage
Model
4W 4UT8LED15
5W 4UT12LED15
10W 4UT22LED15
14W 4UT30LED15
Connect
White Supply Wire to:
White
*Parallel cord (square & ridged)
Clear, Brown, Gold or Black
with tracer
Insulated wire (other than green)
with silver conductor
Neutral Wire
4U SERIES, CP301175
4U_ _K_ _ _ _ _
NOTE: Read all instructions thoroughly before starting installation.
CAUTION: To reduce the risk of fire, electric shock, or injury to persons:
a) Use only insulated staples or plastic ties to secure cords;
b) Route and secure cords so that they will not be pinched or damaged
when the fixture is pushed to the wall;
c) Not intended for recessed installation in ceiling, or soffits;
d) Not intended for surface installation inside built-in furnishings such as
kitchen cabinets, china cabinets, or trophy cases;
e) The National Electric Code (NEC) does not permit cords to be concealed
where damage to insulation may go unnoticed. To prevent fire danger,
do not run cord behind walls, ceilings, soffits, or cabinets where it
may be inaccessible for examination. Cords should be visually
examined periodically and immediately replaced when any damage is
noted.
FIG. 1
FIG. 3
MOUNTING SCREW
We're here to help
FIG. 2
KNOCK-OUT
MOUNTING SCREW
22" & 30"
MODELS ONLY
FIG. 4
866-558-5706
Hrs: M-F 9am to 5pm EST
KNOCK-OUT
CONDUIT
CONNECTOR
Page 1
IS-4ULED-US_English
