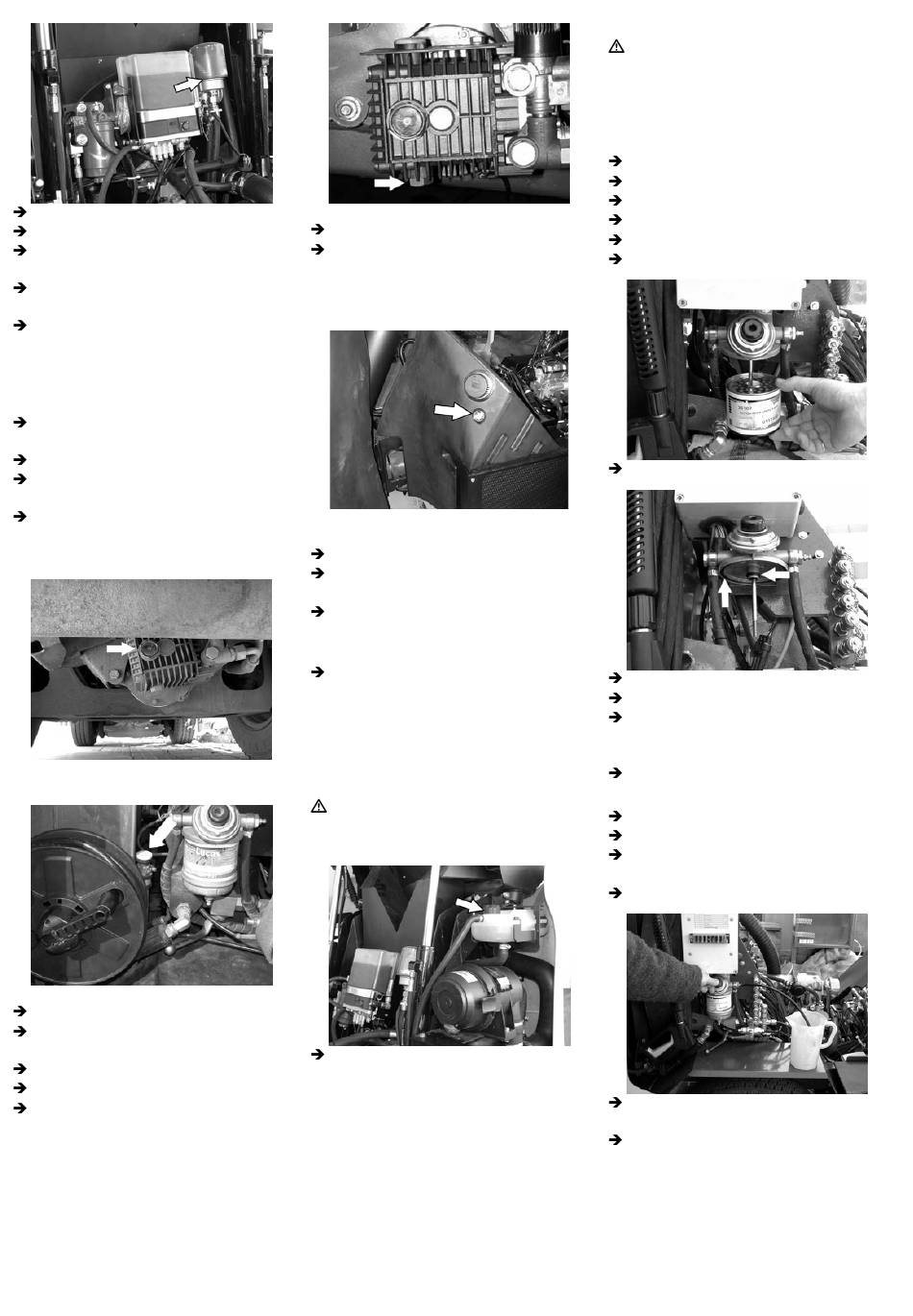

Unscrew the oil filter.
Clean the intake and sealing areas.
Coat the washer of the new oil filter with
oil before fitting it.
Fit in the new oil filter and tighten it by
hand.
Screw in the oil drain screw along with
the new washer.
Note
Tighten the oil drain screw using a torque
wrench to 25 Nm.
Fill in motor oil.
Oil grade: see Technical Data
Close oil filler opening.
Let the motor run for approx. 10 sec-
onds.
Check engine oil level.
Check oil level in the water pump; refill
and change oil
The oil level must be within the viewing
glass.
Refill oil:
Clean the filling area.
Loosen the screw cap of the oil filling
opening.
Refill oil.
Close oil filler opening.
Check oil level
Oil change:
Ready a catch bin for appr. 1 litre oil.
Unscrew oil drain plug.
Oil grade: see Technical Data
Check hydraulic oil level and refill hy-
draulic oil
The oil level must be within the viewing
glass.
Clean the filling area.
Loosen the screw cap of the oil filling
opening.
Refill hydraulic oil.
Oil grade: see Technical Data
Check hydraulic unit
Check all hydraulic hoses and connec-
tions and ensure that they are leak-
proof.
Only Kärcher Customer Service is author-
ised to carry out maintenance tasks on the
hydraulic unit.
Check water cooler and maintain it.
Danger
Danger of scalding by boiling water! Let the
cooler cool down for at least 20 minutes.
Fill in cold water in the cooling water
compensation tank.
If the motor is cold:
– Cooling water level must be above the
lower marking.
If the motor is warm:
– Cooling water level must be below the
upper marking.
– The percentage of anti-frost agent in the
cooling water should not be more than
50%.
Clean and replace fuel filter
Danger
Risk of explosion!
– Do not carry out maintenance tasks in
closed rooms.
– Smoking and naked flames are strictly
prohibited.
Switch off engine.
Raise waste container.
Keep a suitable catch bin ready.
Loosen the fuel filter casing.
Empty the fuel filter casing.
Remove the fuel filter casing.
Clean or replace fuel filter.
Replace washers.
Fit the fuel filter again.
Check fuel tubes and clamps for dam-
ages and make sure they are leak-
proof.
Deaerate the fuel system
Deaerating the fuel system
Raise waste container.
Insert the hose on the deaeration screw.
Turn the deaeration screw by one rota-
tion.
Keep a suitable catch bin ready.
Pump until fuel free of air bubbles is re-
leased.
Close the deaeration screw.
