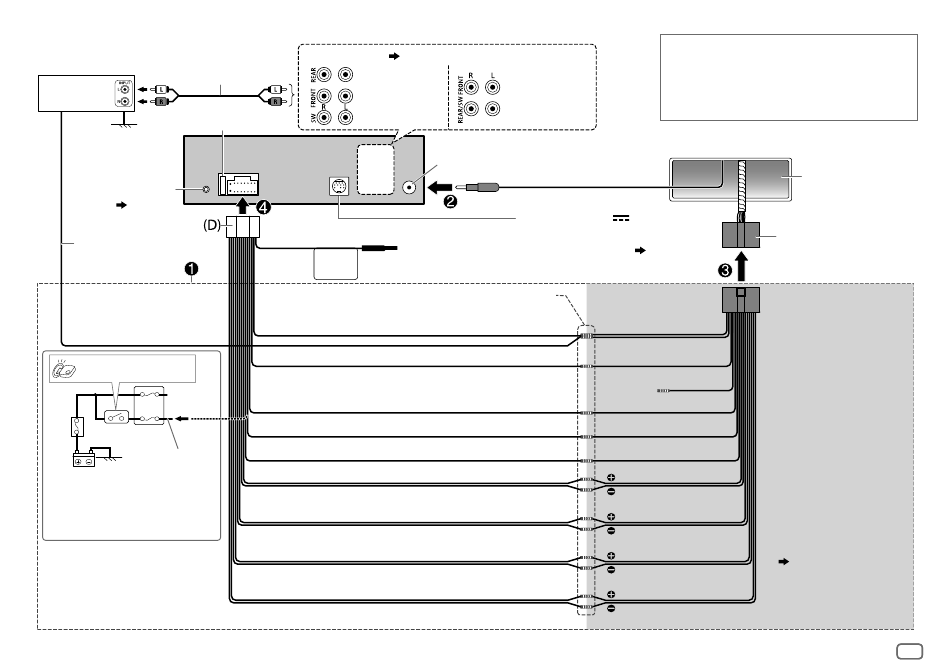

Wiring connection

Signal cord
(not supplied)
JVC Amplifier * 1
Fuse (10 A)
Microphone input
jack ( 14)
Remote wire
(not supplied)
Ignition switch
Car fuse block
Separate red wire
Make this connection if your vehicle
factory wiring harness does not
have "12 V ignition switch" wire.
Output terminals ( 32)
KD-X33MBS
Antenna terminal
To the steering
Light blue/yellow
wheel remote
STEERING
WHEEL
control adapter
REMOTE
Join the same color wires together.
Blue/white: Remote (200 mA max.)
Orange/white: Illumination
Yellow: Battery 12 V
Red: Ignition 12 V
Black: Ground
Gray: Front speaker/For 3-way crossover: Mid range speaker (right)
Gray/black
White: Front speaker/For 3-way crossover: Mid range speaker (left)
White/black
Purple: Rear speaker/For 3-way crossover: Tweeter (right)
Purple/black
Green: Rear speaker * 2
/For 3-way crossover: Tweeter (left)
Green/black * 2

IMPORTANT

We recommend installing the unit with a
commercially available custom wiring harness specific
KD-X330BTS for your car and leave this job to professionals for your
safety. Consult your car audio dealer.
Expansion port (12 V 500 mA)
To the optional SiriusXM Vehicle Tuner
(commercially available) ( 11)
Blue: To power antenna
Blue/white: To amplifier
Brown
(Not used)
Vehicle
dashboard
Factory wiring
harness (vehicle)
Custom wiring harness
(separately purchased)
*
1
Firmly connect the ground
wire of the amplifier to
the car's chassis to avoid
damaging the unit.
*
2
You can also connect a
subwoofer speaker directly
using this lead without
an external subwoofer
amplifier. For setting,
21, 22.
Recommended connection
