[1]

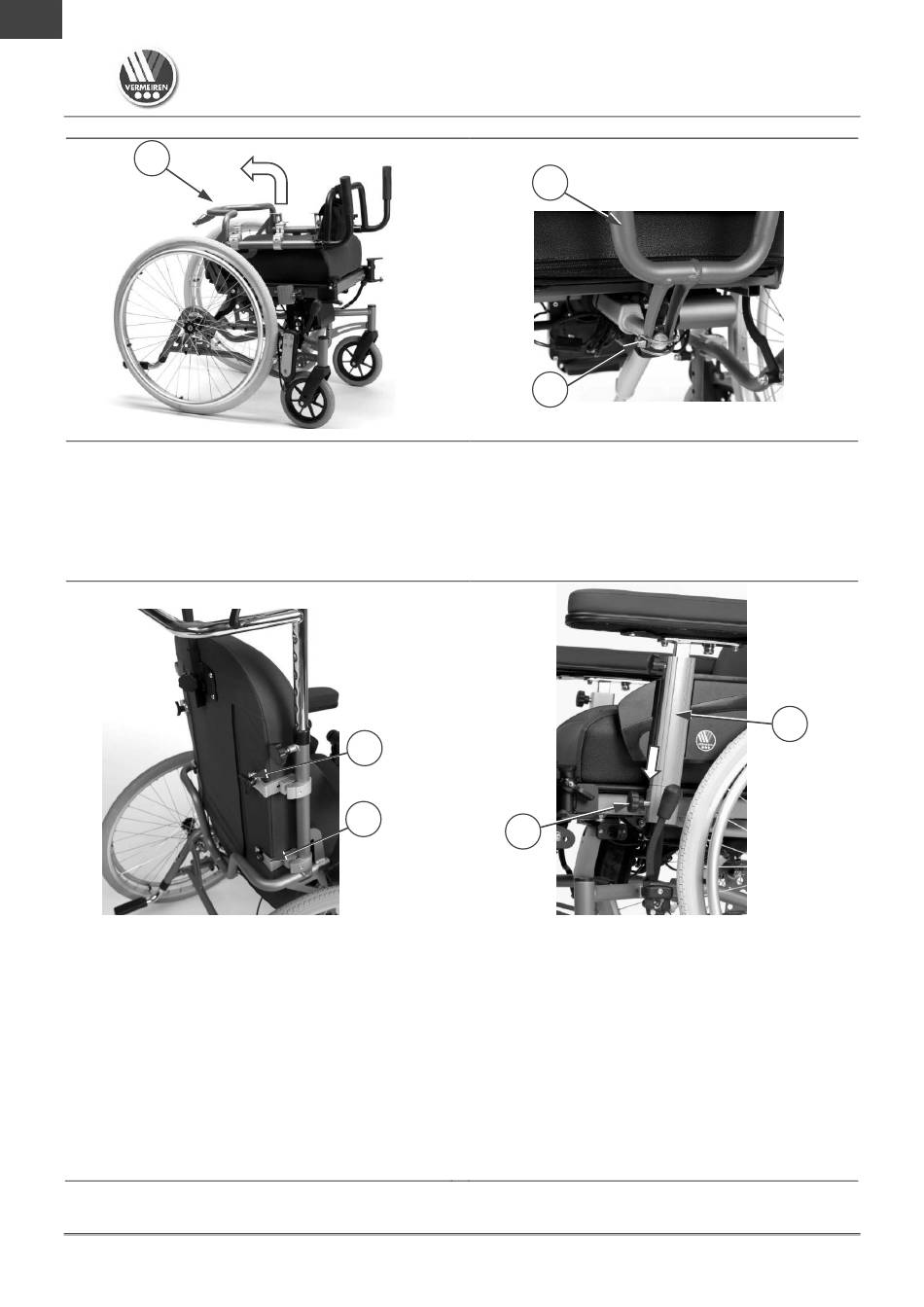

• Place the wheelchair with four wheels
on the ground.
• Fold the backrest frame (34) open.
[3]
• Hang the backrest with its four screws
in the four brackets (35) of the
backrest frame.
• Tighten the two upper star buttons
(36) by hand.
• Make sure that the backrest is firmly
secured.
[2]
• Mount the front of the motor to the
backrest frame with the fastener pin
(33) and lock its brace.
• Make sure that the backrest frame is
firmly secured to the motor.
36
35
37
[4]
• Turn the star knob (37) of the armrest
support anticlockwise and remove it.
• Insert the armrest (9) in the armrest
support.
• Insert the star knob (37) and turn it
clockwise until it is finger-tight.
• Make sure that the armrest is firmly
secured.
•
Repeat this for the second armrest.
8
34
33
Inovys II-E
2019-02
Before use
9
