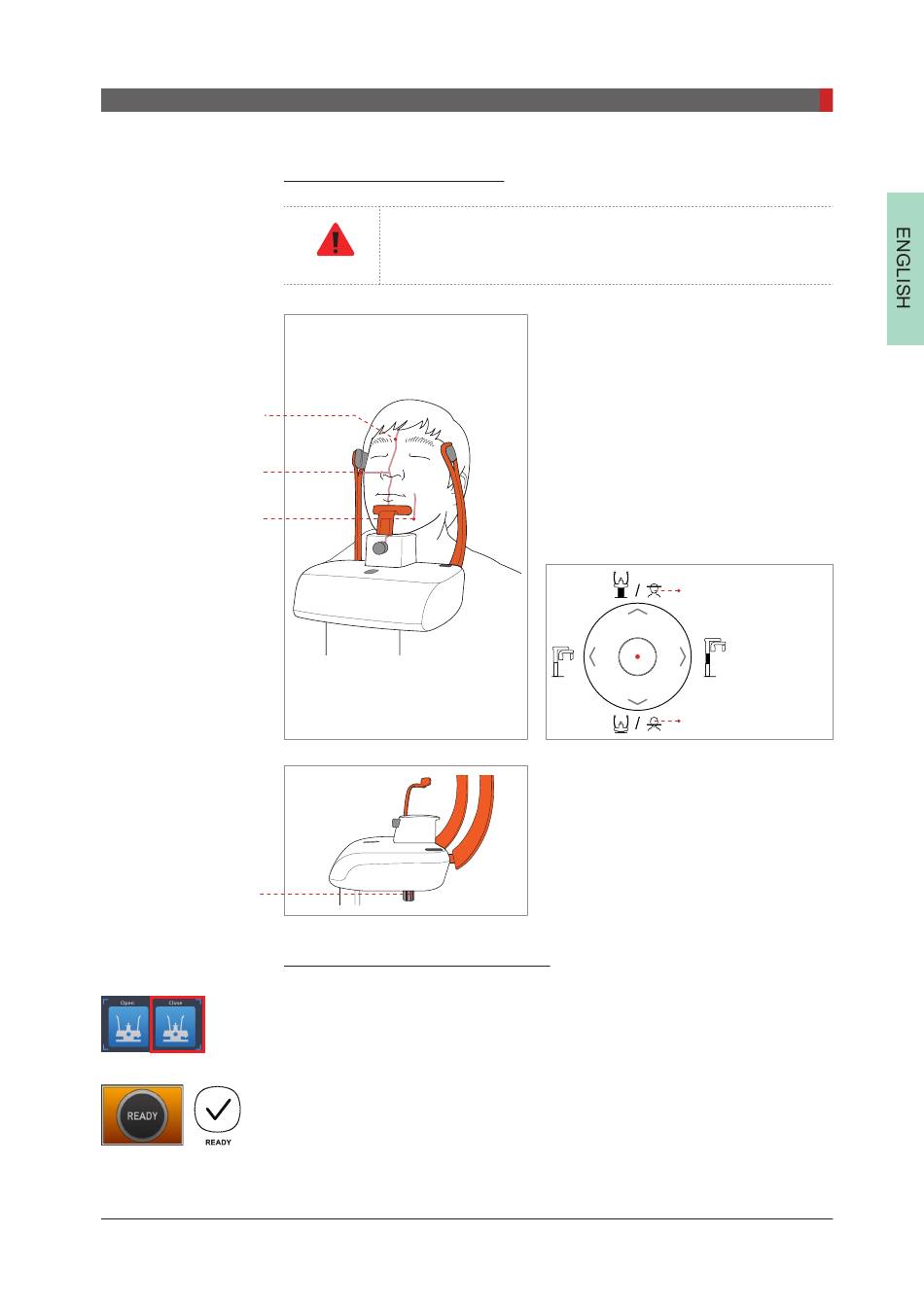

VATECH Pax-i3D Manual Del Usuario página 39

Mid-sagittal plane
laser beam
Frankfurt plane laser
beam
Canine laser beam
Adjusting lever
for the canine
PaX-i3D Green (PHT-60CFO) User Manual
Aligning the Laser Beams
Be careful not to project the laser beams directly into the
patient's eyes as this could severely damage the patient's
WARNING
vision.
Completing Patient Positioning
1. After confirming patient positioning and beam alignment, adjust the temple
supports to fit snugly on both sides of the patient's head by clicking the temple
support adjustment button.
2. Click the READY button after the patient has been properly positioned. No
X-Ray will be emitted at this point.
3. Proceed to section 3.3 Initiating X-Ray Exposure.
3 Acquiring PANO Images
1. Mid-sagittal plane laser beam:
Position the Mid-sagittal plane laser
beam at the center of the patient's face to
prevent magnifications of the left or right
side in the final image.
2. Frankfurt plane laser beam: The
Frankfurt plane laser beam should go from
the top of the ear to the tip of the nose when
the patient's head is tilted back 10 – 15 °.
Frankfurt plane laser
beam UP button
Frankfurt plane laser
beam DOWN button
3. Canine laser beam: Have the patient
smile to properly position the canine laser
beam on the center of the patient's canine
tooth.
